Publication 2098-IN003E-EN-P — April 2004
2-12 Ultra3000 Connector Data

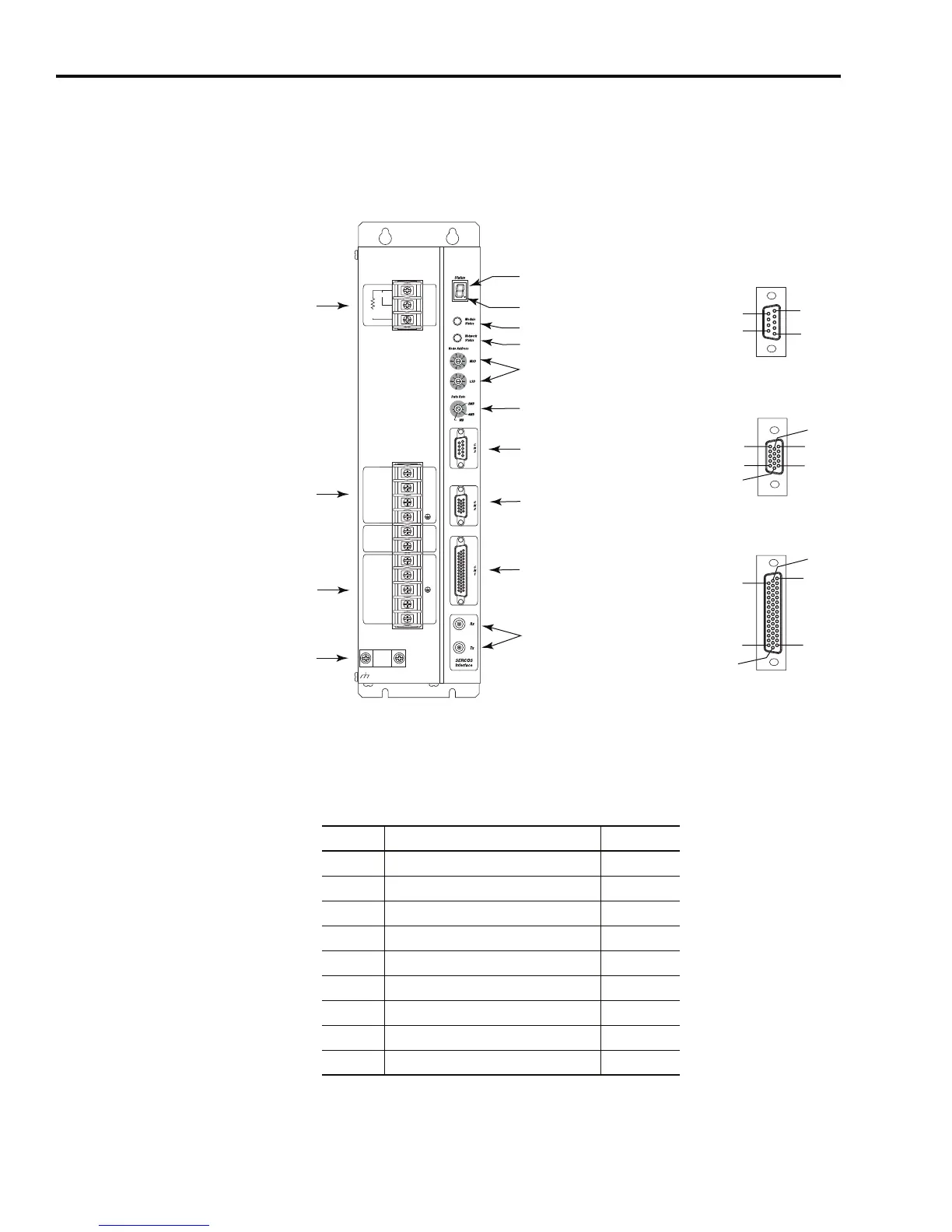

Use the figure below to locate the front panel connections on the
Ultra3000 with SERCOS interface 230V drive (3 kW).
Figure 2.6
Ultra3000 Front Panel Connections for 2098-DSD-030-SE
Serial Port Connector
The following table provides the signal descriptions and pin-outs for
the CN3 serial port (9-pin) connector.
U
V
W
+
-
L1
L2/N
L1
AUX
L2/N
AUX
1
2
3
Motor
DC Bus
100-240 VAC
50/60 Hz
Internal
External
Shunt
TB2
TB1
Pin 11
Pin 6
Pin 15
Pin 1
Pin 10
Pin 5
Pin 30
Pin 44
Pin 1
Pin 15
Pin 16
Pin 31
Pin 6
Pin 9
Pin 1
Pin 5
8
AC Input Power
Connections
Motor Power
Connections
Passive Shunt
Resistor Connections
Seven Segment
Status LED
Logic Power LED
CN3 9-pin
Serial Port
Connector
CN2 15-pin
Motor Feedback
Connector
CN1 44-pin
User I/O
Connector
SERCOS interface
Receive (Rx) and
Transmit (Tx)
Connectors
Node Address Switches
Data Rate Switch
Module Status LED
Network Status LED
Motor Power
Cable Shield Clamp
9-pin CN3
Serial Connector
15-pin CN2
Feedback Connector
44-pin CN1
I/O Connector
CN3 Pin Description Signal
1 RS-422/RS-485 Input+ RCV+
2 RS-232 Input RCV
3 RS-232 Output XMT
4 RS-422/RS-485 Output+ XMT+
5 Common COM
6Reserved –
7 RS-422/RS-485 Input- RCV-
8 RS-422/RS-485 Output- XMT-
9 Reserved –
