Publication 2098-IN003E-EN-P — April 2004
Ultra3000 Connector Data 2-51
5V Auxiliary Encoder Power Supply
All Ultra3000 drives supply 5V dc for the operation of an auxiliary
encoder. The following table provides a description of the auxiliary
encoder power supply.
Understanding the Serial
Interface
The Ultra3000 includes one serial port that implements the standard
NRZ asynchronous serial format, and supports RS-232, RS-422, and
RS-485 communication standards.
Standard baud rates include 1,200, 2,400, 4,800, 9,600, 19,200, and
38,400 baud. Data lengths of 7 and 8 bits are supported. Parity settings
include odd, even, and none.
The connector pinout dedicates separate pins for the RS-232 and
RS-422/ RS-485 signals, so that the communication standard can be
changed by just using a different cable. Refer to Figure 2.55 for the
serial interface configuration.

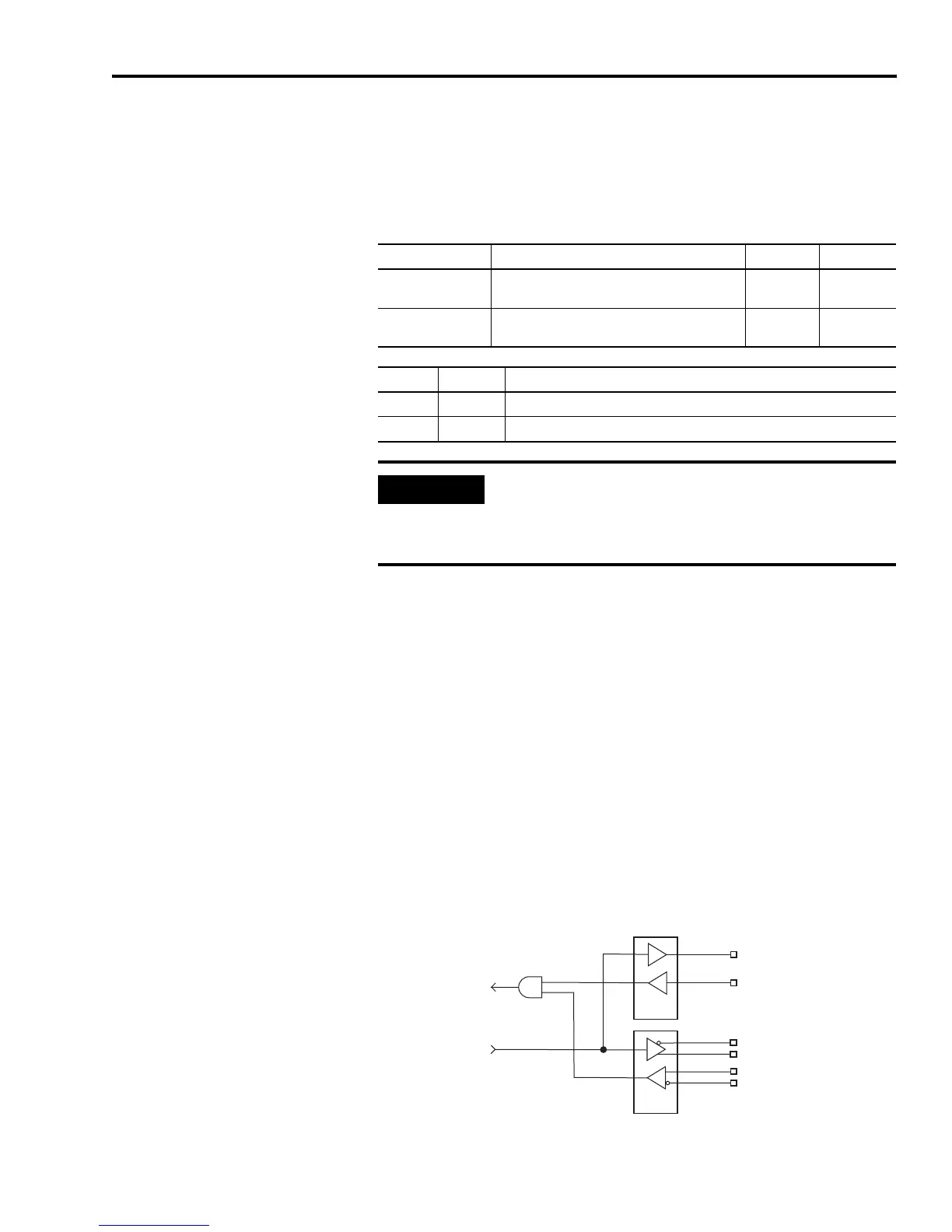

Figure 2.55
Serial Interface Configuration
Parameter Description Minimum Maximum
Output Voltage
Voltage range of the external power supply for
proper operation of an auxiliary encoder.
4.75V 5.25V
Output Current
Current draw from the external power supply for
the auxiliary encoder.
—250 mA
Pin Signal Description
CN1-1 EPWR Auxiliary Encoder Power Out (+5V)
CN1-2 ECOM Common
IMPORTANT
The internal 5V dc power supply has a resettable
fuse that opens at 3 amps and automatically resets
itself when the current falls below 3 amps. There are
no internal fuses requiring replacement.
RS-232
RS-485
XMT
RCV
XMT-
XMT+
RCV+
RCV-
RECEIVE
TRANSMIT
