Ultra3000 Connector Data 2-31

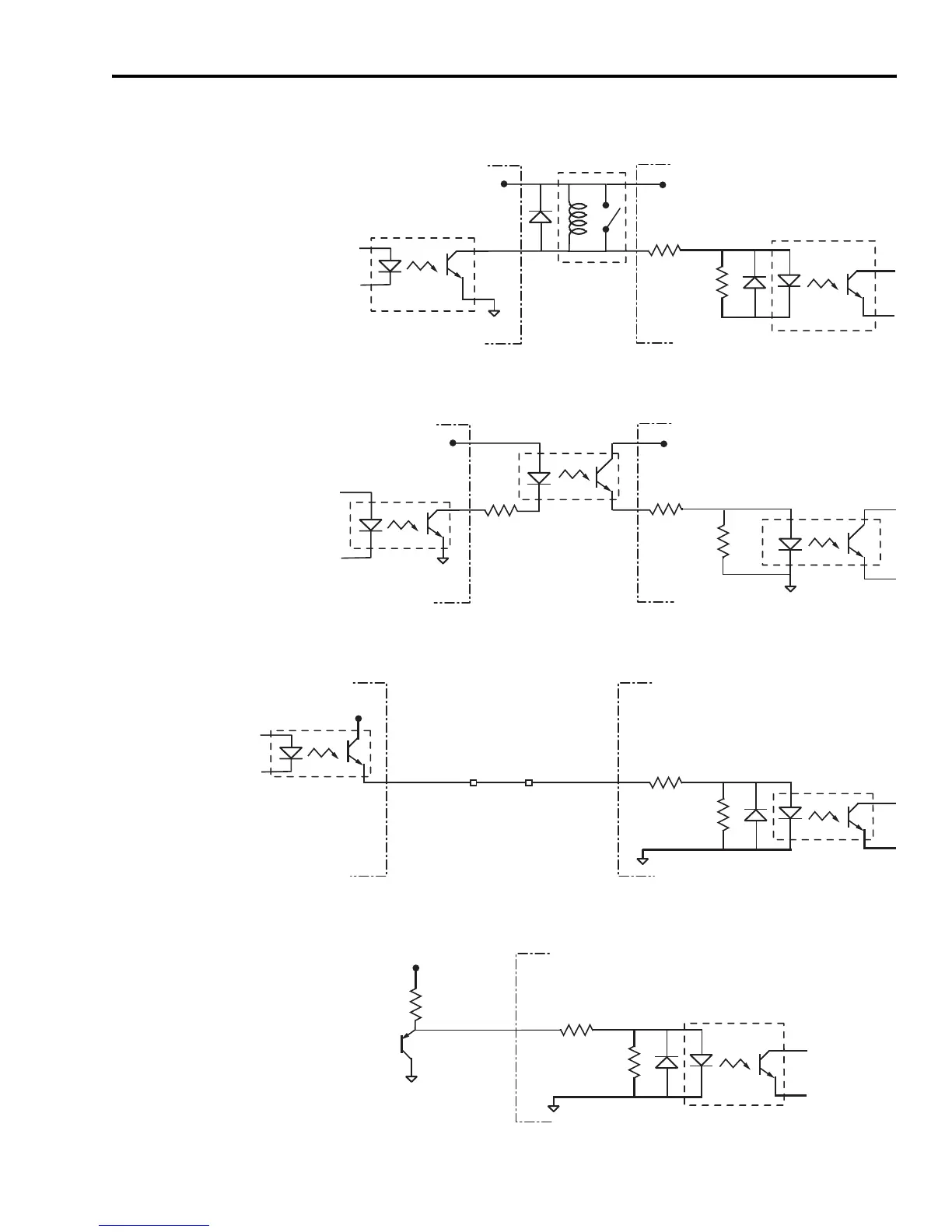

Figure 2.17
Drive Input Connected to NPN Transistor using Switch/Relay
Figure 2.18
Drive Input Connected to NPN Transistor using Opto-Isolator
Figure 2.19
Drive Input Connected to another Ultra3000 Output
Figure 2.20
Drive Input Connected to PNP Transistor
2.7k Ω
1k Ω
Relay
IOCOM
Ultra3000 Drive
IOPWR
2.7k Ω
1k Ω
Ultra3000 Drive Output
Opto
IOCOM
Ultra3000 Drive Input
IOPWR
IOCOM
2.7k Ω
1k Ω
CN1-31
through CN1-38
CN1-39
through CN1-42
Ultra3000 Drive Output
IOCOM
IOPWR
Ultra3000 Drive Input
2.7k Ω
1k Ω
CN1-31
through CN1-38
IOCOM
IOPWR
Ultra3000 Drive Input
IOCOM
