Allen-Bradley 22C-D072A103

16 Rockwell Automation Publication 22C-UM001J-EN-E - January 2017
Chapter 1 Installation/Wiring

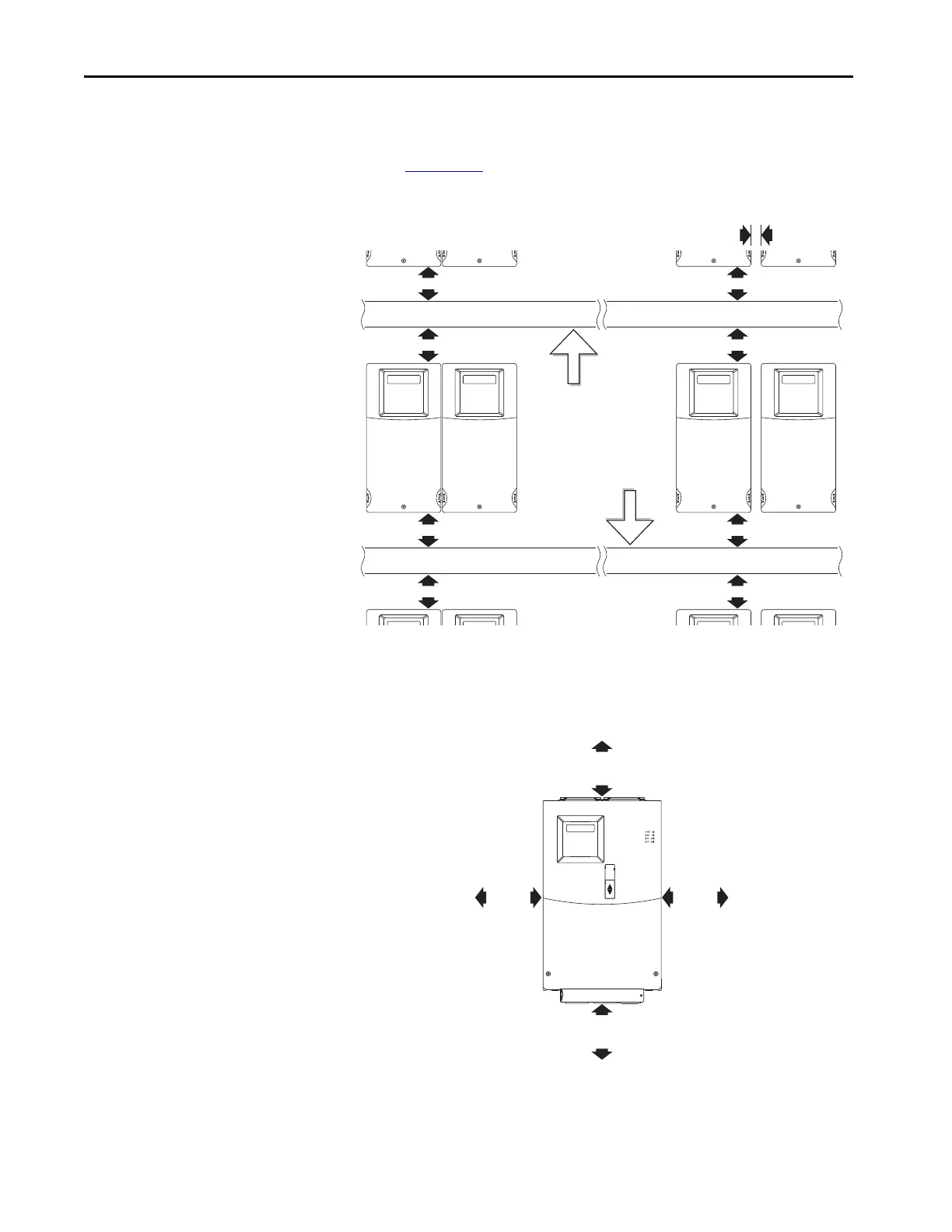

Minimum Mounting Clearances
Refer to Appendix B for mounting dimensions.
Figure 1 - Frame C Mounting Clearances
Figure 2 - Frames D & E Mounting Clearances
120 mm
(4.7 in.)
120 mm
(4.7 in.)
25 mm
(1.0 in.)
120 mm
(4.7 in.)
120 mm
(4.7 in.)
120 mm
(4.7 in.)
120 mm
(4.7 in.)
120 mm
(4.7 in.)
120 mm
(4.7 in.)
Closest object that may
restrict air flow
through the drive heat
sink and chassis.
Mounting Option A
No clearance required
between drives.
Mounting Option B
150 mm
(6.0 in.)
150 mm
(6.0 in.)
50 mm
(2.0 in.)
50 mm
(2.0 in.)
