Rockwell Automation Publication 22C-UM001J-EN-E - January 2017 53
Start Up Chapter 2
No Function Mode
In No Function mode:
•Auto key LED has no function.
• Start command is defined by P036
[Start Source].
• Speed Reference command is defined by P038
[Speed Reference].

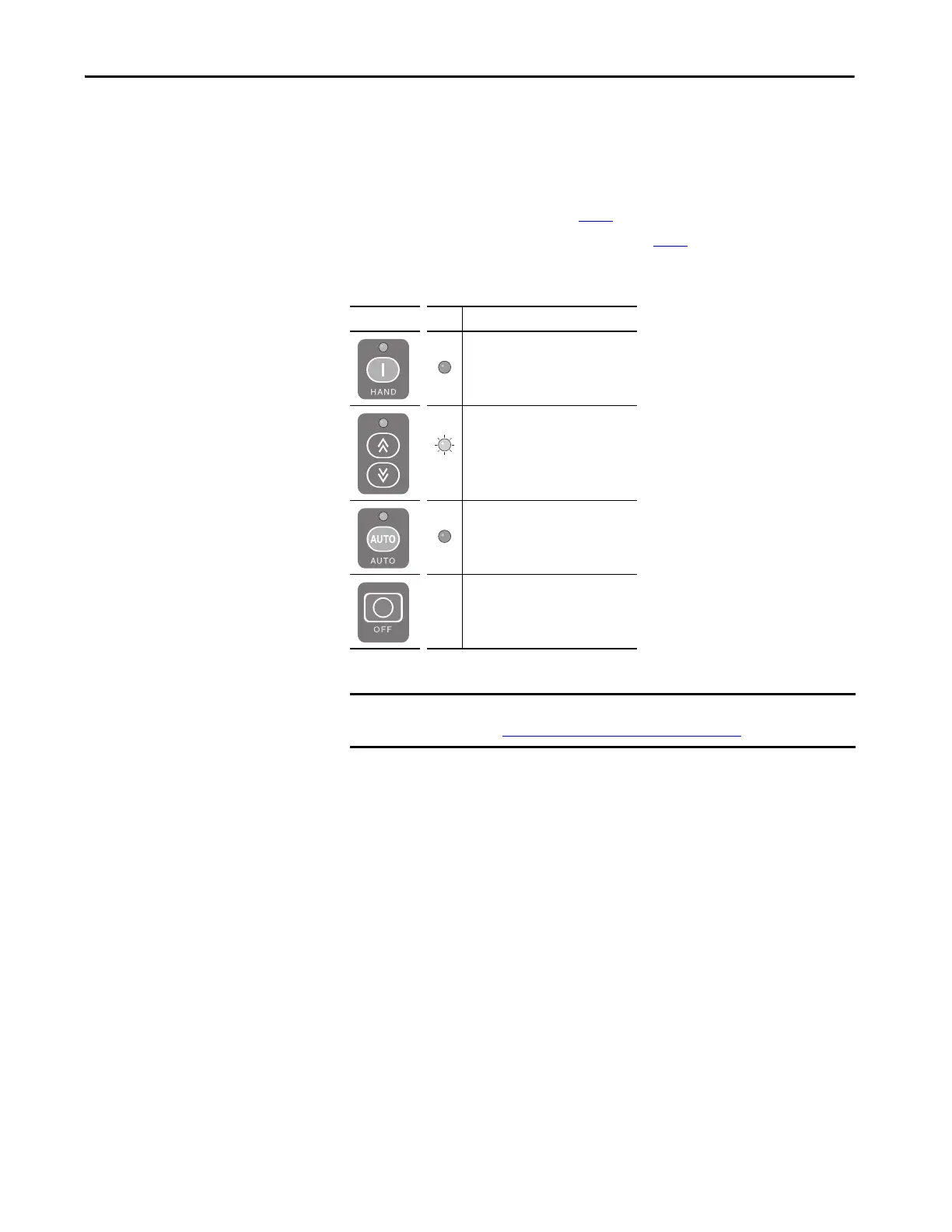

Table 17 - P042 [Auto Mode] = 0 “No Function”
T051-T054 [Digital Inx Sel] ≠ 2 “Auto Mode” or 3 “Local”
Key LED Key Function
Off Not active.
Only active if P036 [Start Source] = 0
“Keypad”. Starts drive.
On Not active.
Only active if P038 [Speed Reference]
= 0 “Drive Pot”. Changes drive speed.
Off Not active.
N/A Stops drive.
IMPORTANT Certain digital input settings can override drive operation.
Refer to Start and Speed Reference Control
on page 37 for details.
