Appendix F Metasys N2
Writing Parameter Values
These outputs are written each time the User OUTx point is written from the
network.
The Param# for OUTx’s default to commonly accessed parameters and can be
changed if desired. A value of “0” in the Param# for OUTx field disables the
writing of data for that specific point.

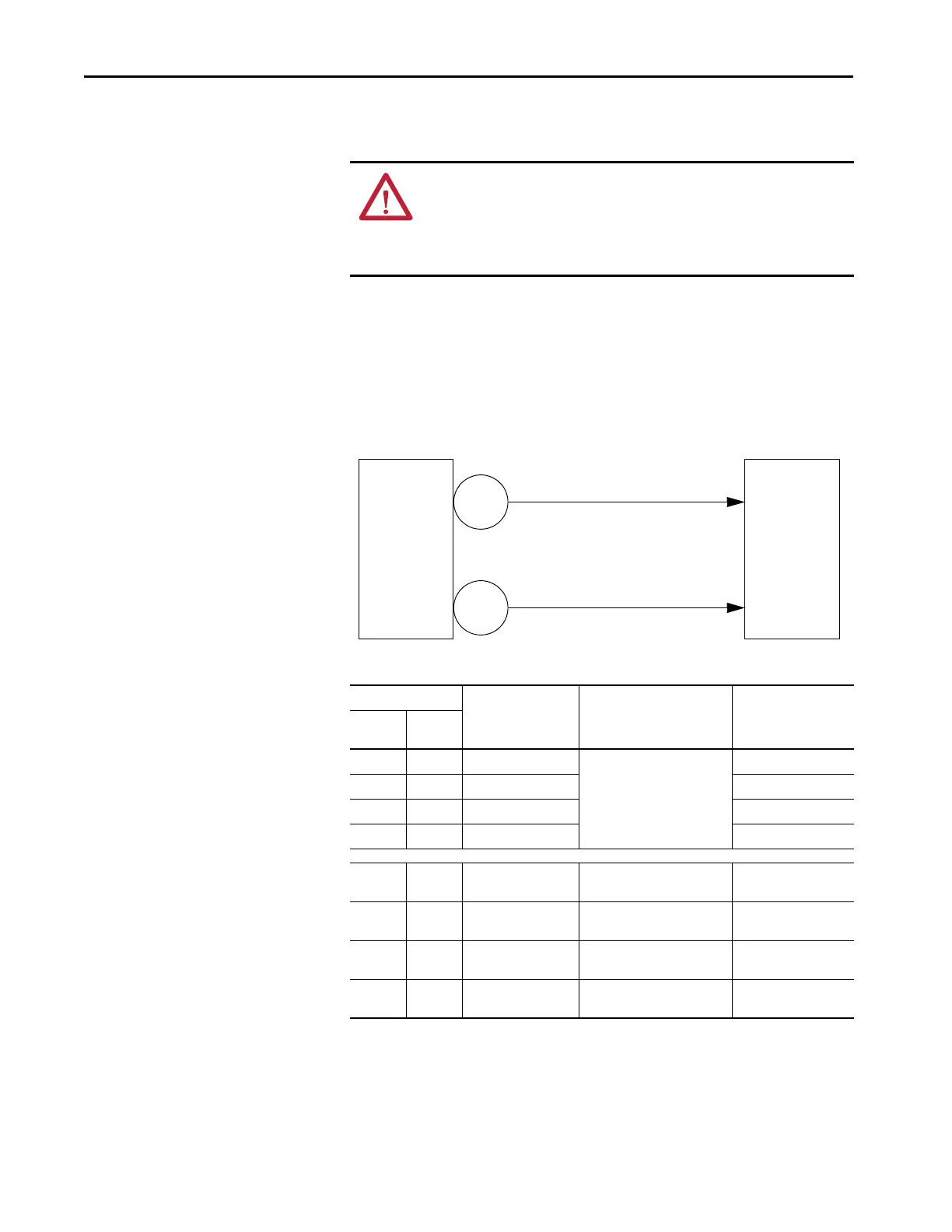

Figure 45 - Configurable Objects: Outputs
ATTENTION: Risk of equipment damage exists. If configurable outputs are
programmed to write parameter data to Non-Volatile Storage (NVS)
frequently, the NVS will quickly exceed its life cycle and cause the drive to
malfunction. Do not create a program that frequently uses configurable
outputs to write parameter data to NVS.
Table 47 - Configurable Objects: Outputs
Network Point Description Range Default
Type
(NPT)
Address
(NPA)
AO 6 User OUT1 Varies by the parameter selected
by Param# for OUTx.
0
AO 7 User OUT2 0
AO 8 User OUT3 0
AO 9 User OUT4 0
ADI 5 User OUT1 (A06)
Destination (Param#)
0 (not in use), 1 to maximum #
of drive parameters
A154 [PID Prop Gain]
ADI 6 User OUT2 (A07)
Destination (Param#)
0 (not in use), 1 to maximum #
of drive parameters
A155 [PID Integ Time]
ADI 7 User OUT3 (A08)
Destination (Param#)
0 (not in use), 1 to maximum #
of drive parameters
A156 [PID Diff Rate]
ADI 8 User OUT4 (A09)
Destination (Param#)
0 (not in use), 1 to maximum #
of drive parameters
A158 [PID Deadband]
Controller Drive
Param#
for OUTx
ADI
A0
User
OUTx
