Rockwell Automation Publication 22C-UM001J-EN-E - January 2017 25
Installation/Wiring Chapter 1
not be used. If it is necessary to disconnect power to the motor with the drive
outputting power, an auxiliary contact should be used to simultaneously
disable drive control run commands.
Power Terminal Block
Frame C, D, F, G and H drives utilize a finger guard over the power wiring
terminals. Replace the finger guard when wiring is complete.

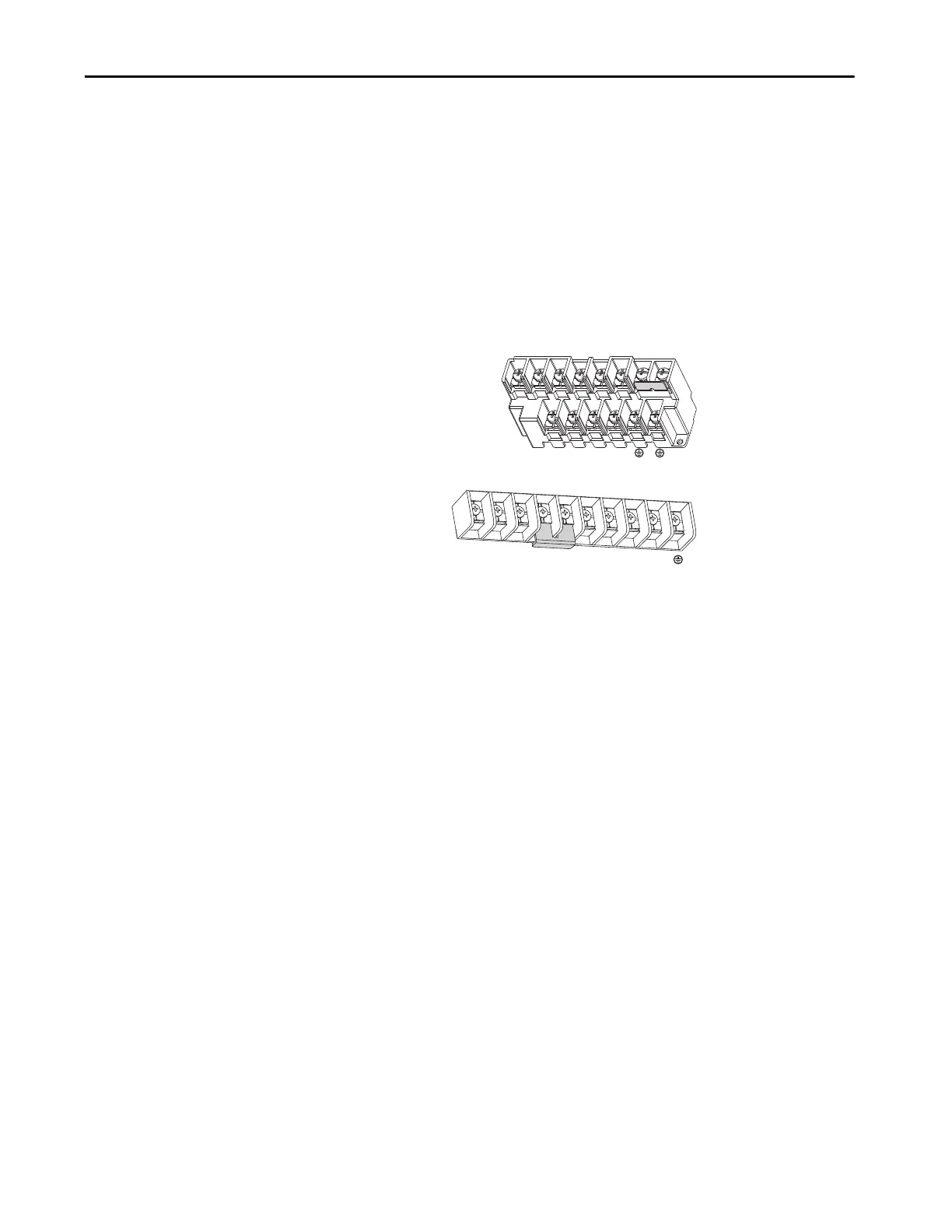

Figure 8 - Power Terminal Blocks (Frames C through D)
Frame D
R/L1
S/L2
T/L3
P1
P2
DC–
U/T1
V/T2
W/T3
Frame C
R/L1 S/L2 T/L3
U/T1 V/T2
W/T3
P2 P1
BR–BR+DC+DC–
To Next Page
