Allen-Bradley ArmorBlock 1732E-16CFGM12R User Manual

1732E ArmorBlock 2 Port Ethernet Module 7
Publication
1732E-IN004A-EN-E - November 2009
Mount the Module
Two sets of mounting holes are used to mount the module directly to a panel
or machine. Mounting holes accommodate #8 (M4) pan head screws. The
torque specification is 1.13 Nm (10 in-lb).

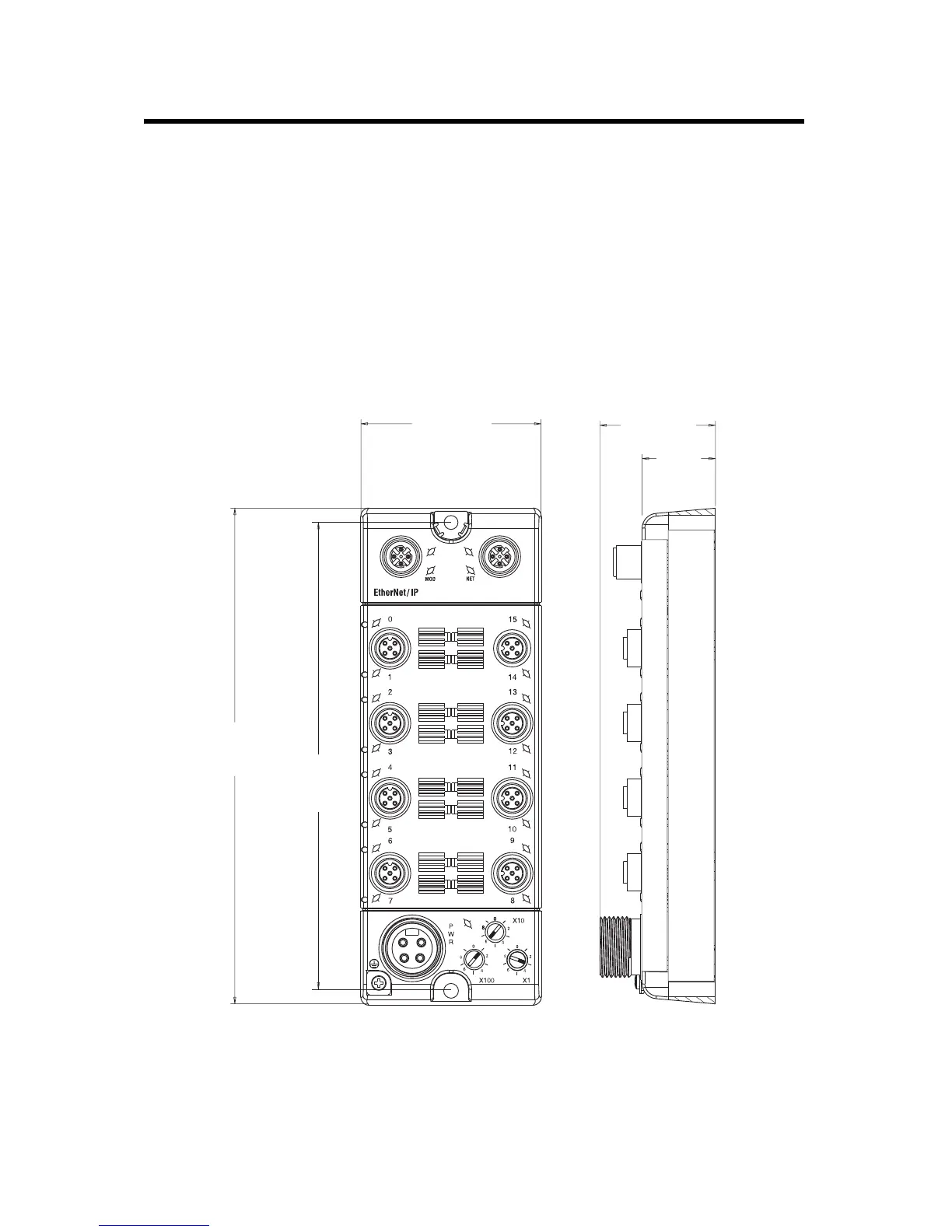

Product Dimensions
Refer to the mounting dimensions illustration to help you mount the modules.
LINK 1 LINK 2
44946
43.25 mm
(1.70 in.)
26.5 mm
(1.04 in.)
65 mm
(2.56 in.)
179 mm
(7.05 in.)
169 mm
(6.64 in.)
Front view
Side view

Allen-Bradley ArmorBlock 1732E-16CFGM12R Specifications

General

Brand	Allen-Bradley
Model	ArmorBlock 1732E-16CFGM12R
Category	Control Unit
Language	English
