Allen-Bradley CompactLogix 5370 L1 User Manual

320 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Appendix C Connect Power to the Series A L1 CompactLogix 5370 Controllers
7. Plug the removable connector back into the controller.
8. Secure the removable connector in place.
9. Turn on power to the external 24V DC power source.

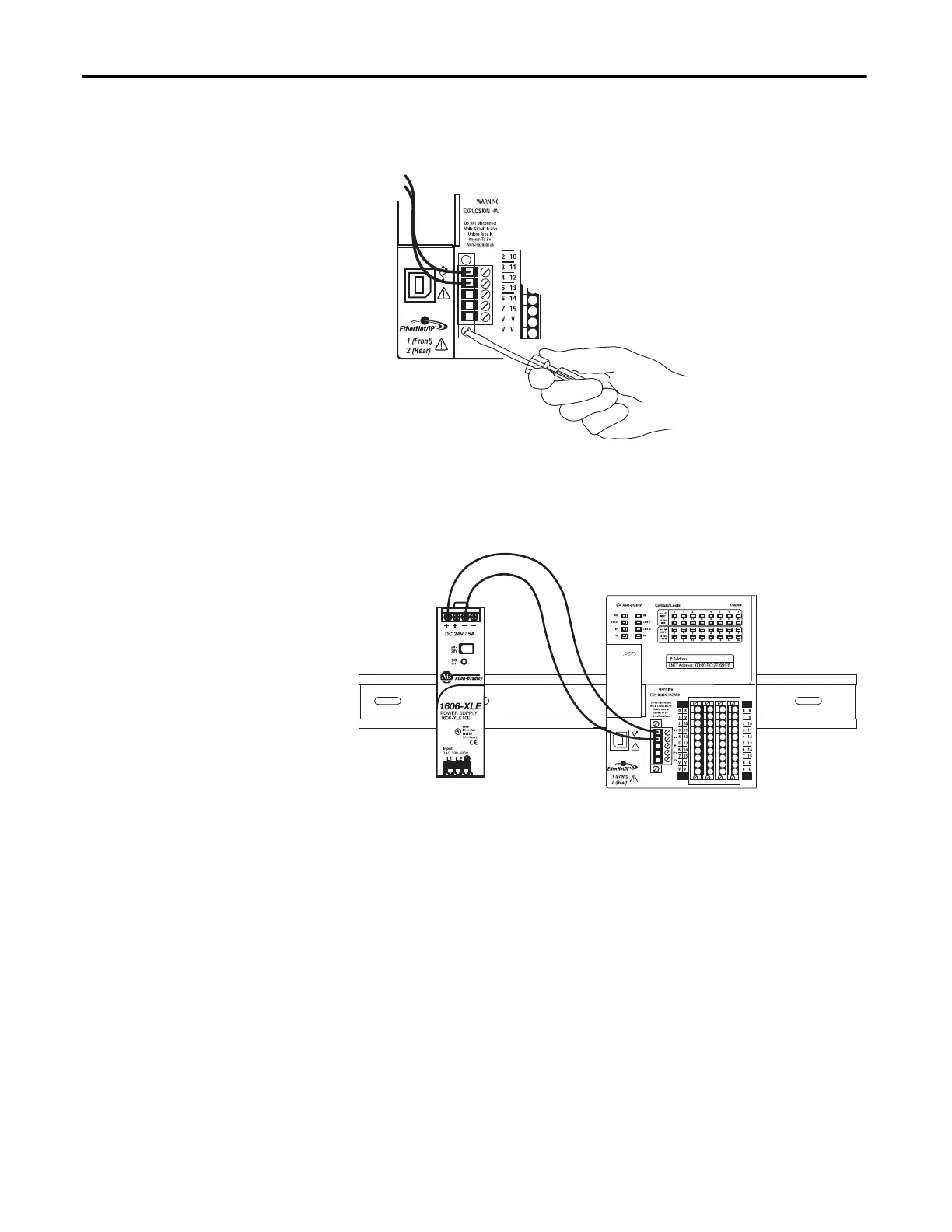

The following graphic shows an external 24V DC power source that is connected
to a CompactLogix 5370 L1 controller.

Allen-Bradley CompactLogix 5370 L1 Specifications

General

Brand	Allen-Bradley
Model	CompactLogix 5370 L1
Category	Controller
Language	English
