216 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers
Distributed I/O Modules over an EtherNet/IP Network
You can include distributed I/O modules over an EtherNet/IP network in your
CompactLogix 5370 L2 control system.
Consider the following when using distributed I/O modules over an
EtherNet/IP network:
• Each remote EtherNet/IP adapter included in the system must be counted
toward the maximum number of EtherNet/IP nodes of the controller.
For more information on maximum number of EtherNet/IP nodes, see
Nodes on an EtherNet/IP Network
on page 125.
• The configurable RPI settings vary depending on which distributed I/O
modules are used in the system.
• For information to add distributed I/O modules to your CompactLogix
5370 L2 control system, see Configure Distributed I/O Modules on a
DeviceNet Network on page 231.

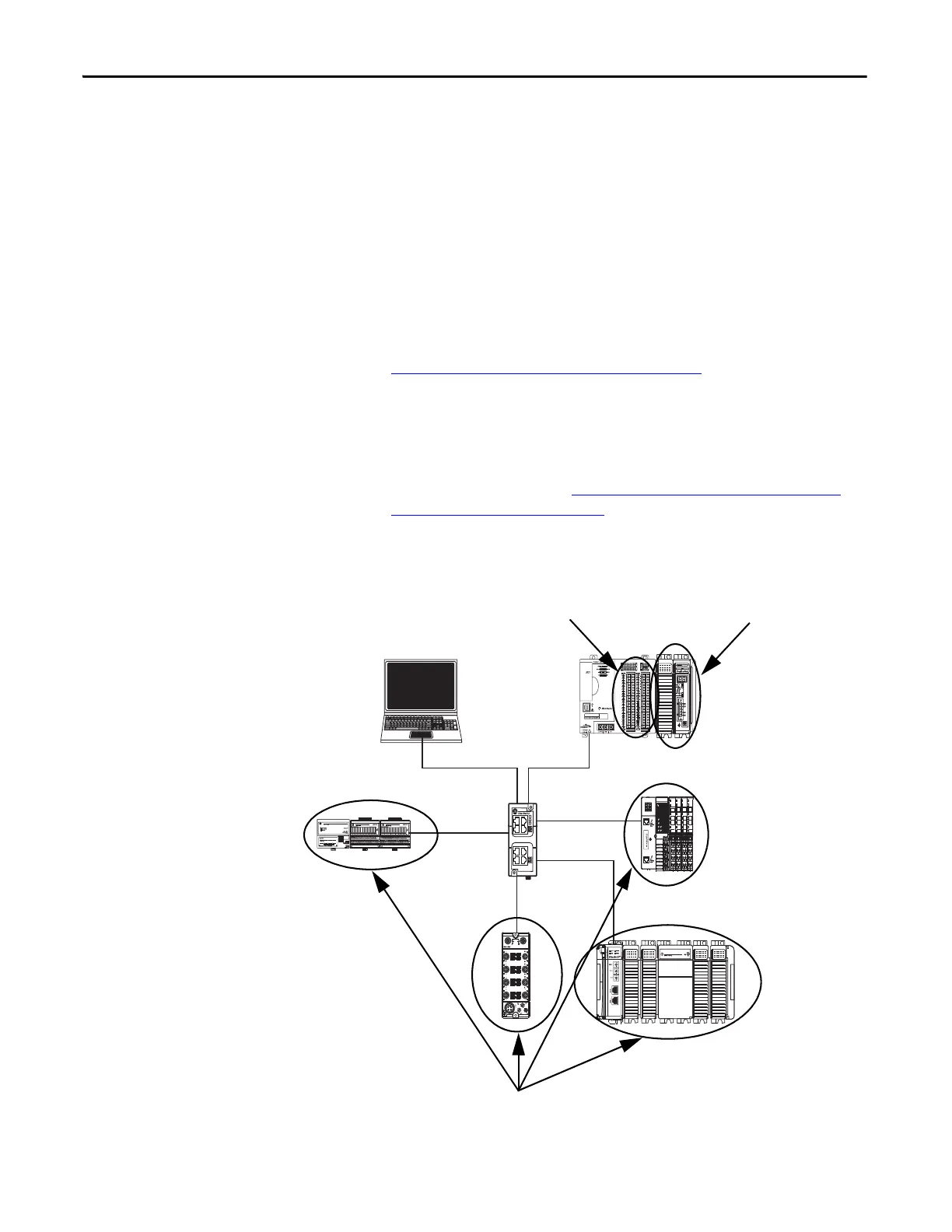

The following graphic shows a CompactLogix 5370 L2 control system on an
EtherNet/IP network that uses all three I/O module options.
Local Expansion Modules
Embedded I/O Modules
Distributed I/O Modules
