8 ControlLogix Voltage/Current Output Module
Publication
1756-IN016B-EN-P - November 2003
Install the Module
You can install or remove the module while chassis power is applied.
Be sure that power is removed or the area is nonhazardous before
proceeding. Repeated electrical arcing causes excessive wear to
contacts on both the module and its mating connector. Worn contacts
may create electrical resistance that can affect module operation.

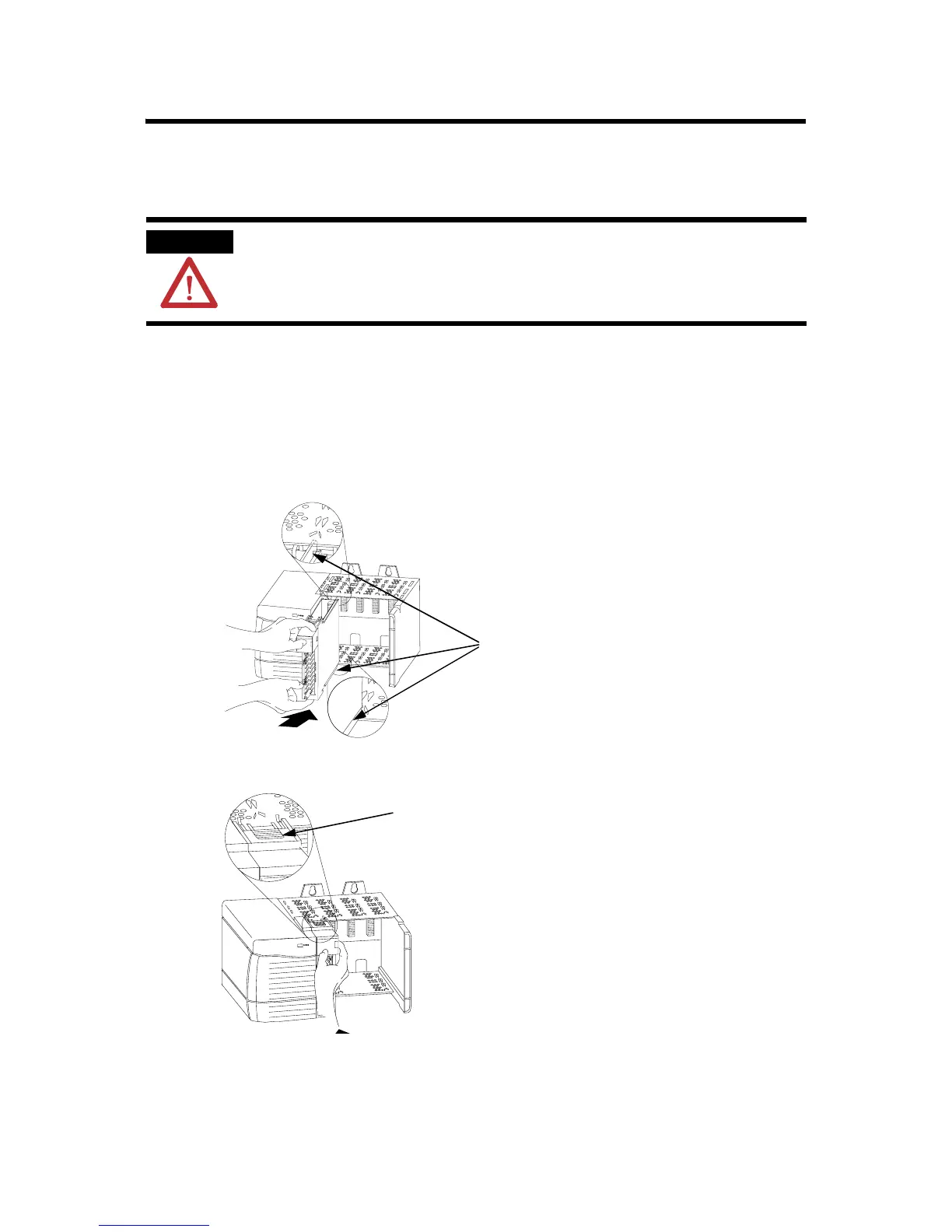

1. Align the circuit board with the top and bottom chassis guides.
2. Slide the module into chassis until module locking tabs click.
WARNING
When you insert or remove the module while backplane
power is on, an electrical arc can occur. This could cause
an explosion in hazardous location installations.
20861–M
Printed
Circuit
Board
Locking tab
To Next Page
