Allen-Bradley ControlLogix 1756-OF4 User Manual

ControlLogix Voltage/Current Output Module 13
Publication
1756-IN016B-EN-P - November 2003
Wire the Module
You can only connect wiring to your module with an RTB or IFM.
12
34
5
6
7
8
910
11
12
1314
1516
1718
19
20
40916-M
i
Current
output
load
Shield
ground

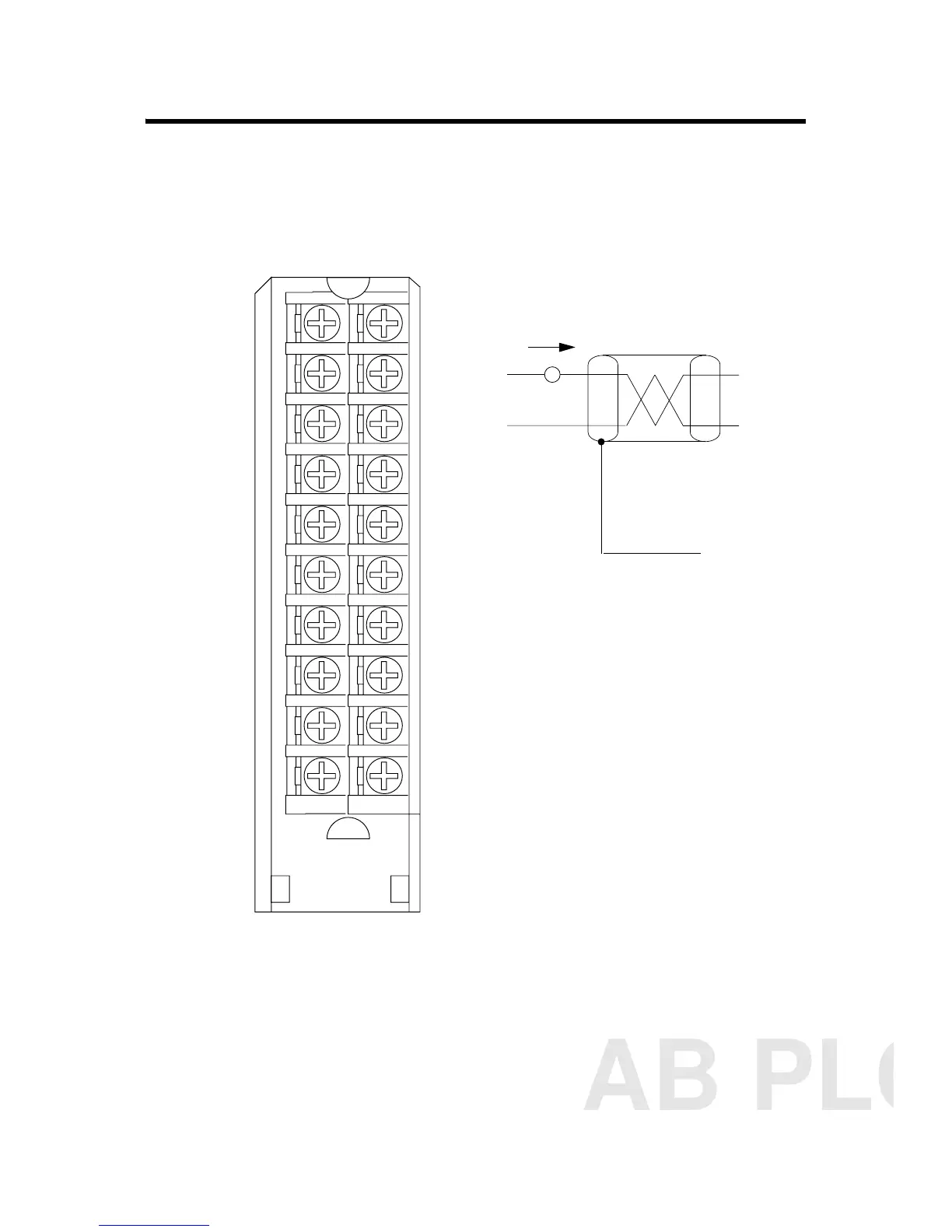

1756-OF4 current wiring example
Not used
Not used
RTN
Not used
Not used
Not used
RTN
Not used
Not used
Not used
VOUT-0
IOUT-0
RTN
VOUT-1
VOUT-2
IOUT-2
RTN
VOUT-3
IOUT-1
IOUT-3
NOTES:
1. Place additional loop devices (e.g strip chart recorders) at the A location shown.
2. Do not connect more than 2 wires to any single terminal.
3. All terminals marked RTN are connected internally.
A
AB PLCs
