Allen-Bradley ControlLogix DeviceNet 1756-DNB User Manual

12 ControlLogix DeviceNet Scanner Module
Publication 1756-IN566B-EN-P - April 2001
Wire the DeviceNet Connector
Use an open-style 5- or 10-position linear plug to connect to the
DeviceNet network. An open-style 10-position linear plug is provided
with your module.

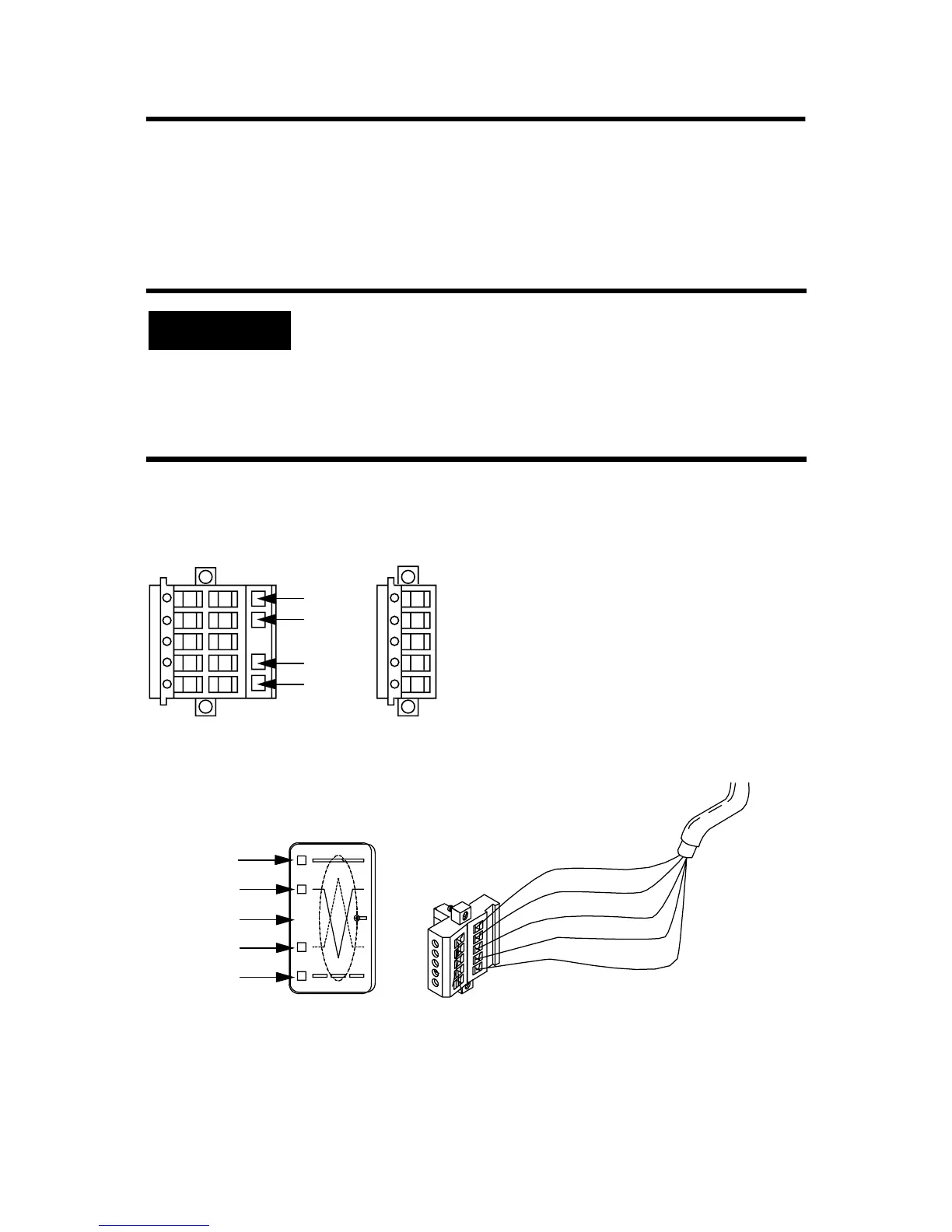

Wire the connector according to the following illustrations.
IMPORTANT
For detailed DeviceNet connection information,
see the DeviceNet Cable System Planning and
Installation Manual, publication DN-6.7.2. Also see
the Industrial Automation Wiring and Grounding
Guidelines, publication 1770-4.1.
Color chips (dots)
Red dot
Black dot
Blue dot
White dot
10-position plug
5-position plug
20474-
D
D
D
D
D
20479-M
Red
White
Bare
Blue
Black
wiring color scheme
Module label shows
linear plug
10-position
drop line or
DeviceNet
trunk cable
Red
White
Bare
Blue
Black
