ControlLogix DeviceNet Scanner Module 13
Publication 1756-IN566B-EN-P - April 2001

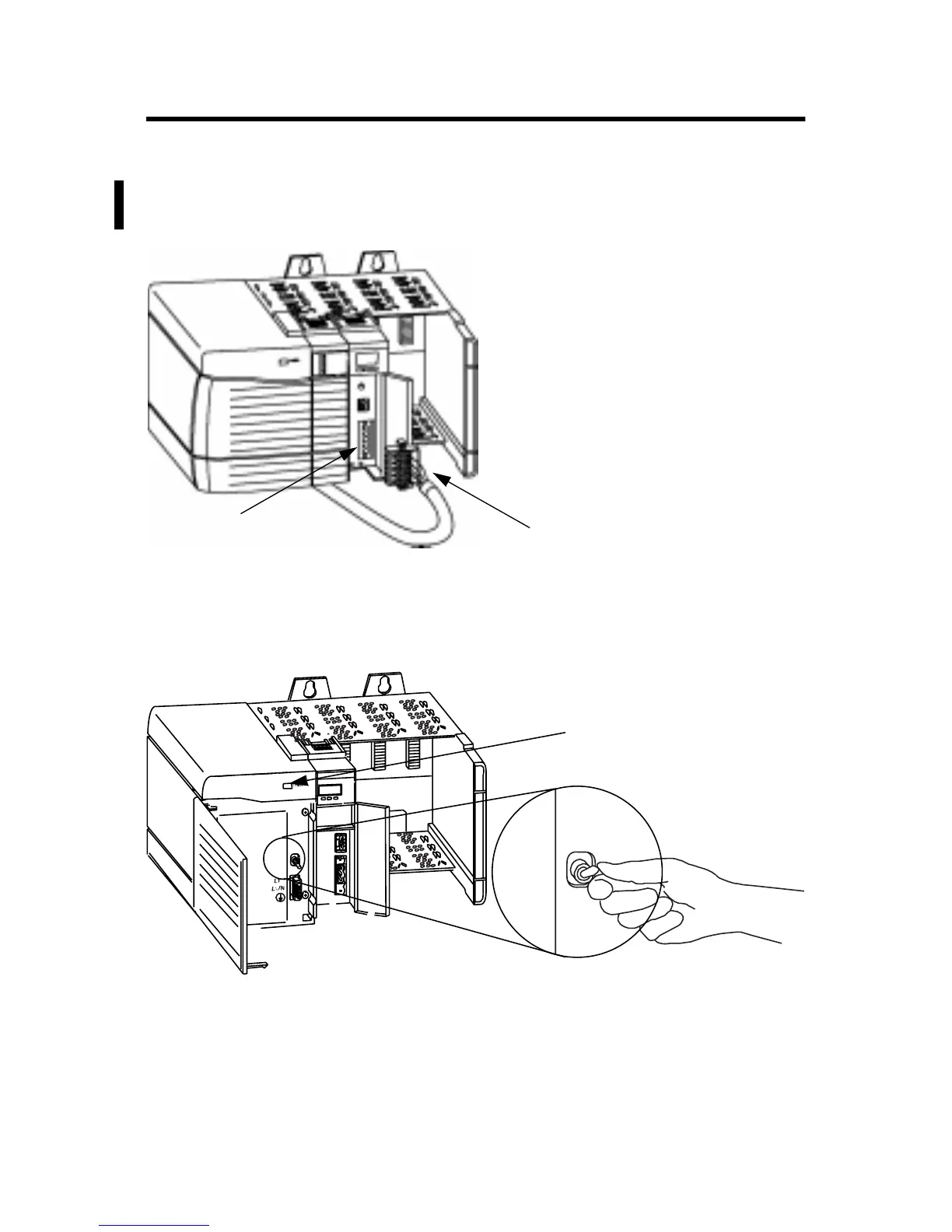

Connect the Module to the DeviceNet Network
Attach the connector to the module’s DeviceNet port as shown
below. Tighten the screws on the connector as needed.
Apply Chassis Power
Check the Module Alphanumeric Display on Power-up
Check the module alphanumeric display to determine if the module
is operating. When you apply chassis power, the alphanumeric
display cycles through the following information:
10-position
linear plug
DeviceNet Port Connector
DeviceNet Drop Line or Trunk Connector
ON
POWER
OFF
ON
POWER
OFF
Power supply indicator is green
when power supply is working correctly.
