6 ControlLogix DeviceNet Scanner Module
Publication 1756-IN566B-EN-P - April 2001
Change of state increases system performance by reducing network
traffic, since data is only sent on an as-needed basis. Use RSNetWorx
for DeviceNet software to activate this feature.
Cyclic I/O
The scanner module can send and receive data on a cyclic basis with
slave devices that also have this feature.
Cyclic I/O increases system performance by reducing network traffic,
since data is only sent at a user-configurable rate. Use RSNetWorx for
DeviceNet software to activate this feature.

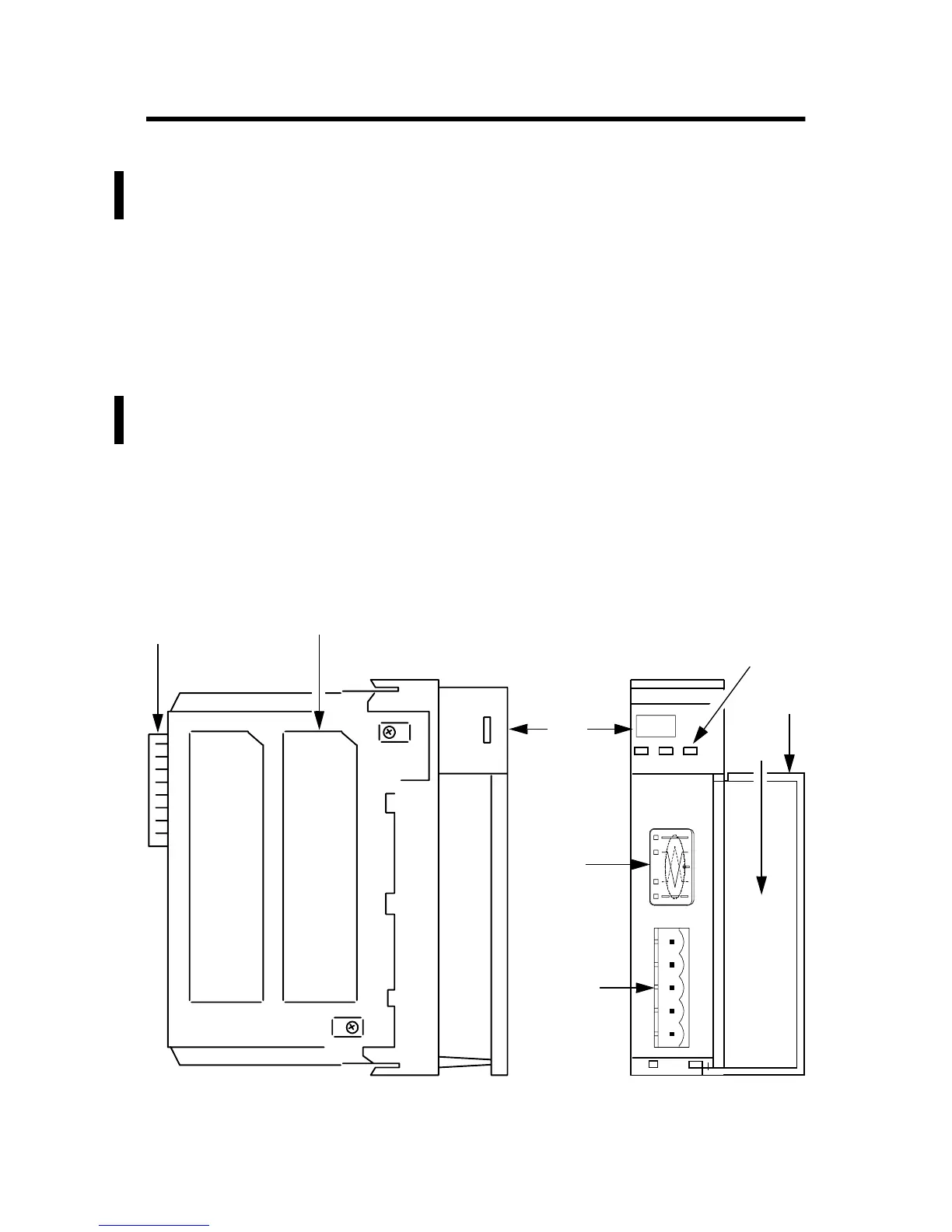

Identify Module Components
Use the following figure to identify the external components of the
module.
DeviceNet
TM
MOD/NET I/O OK
Backplane
Connector
Product
Label
Front View
Side View
Front
Panel
Wiring
DeviceNet
Connector
Health and
Status Indicators
Label
Color
Codes
Door
