ControlLogix DeviceNet Scanner Module 9
Publication 1756-IN566B-EN-P - April 2001
For information on installing these products, refer to the publications
listed in the following table.
Determine Module Slot Location

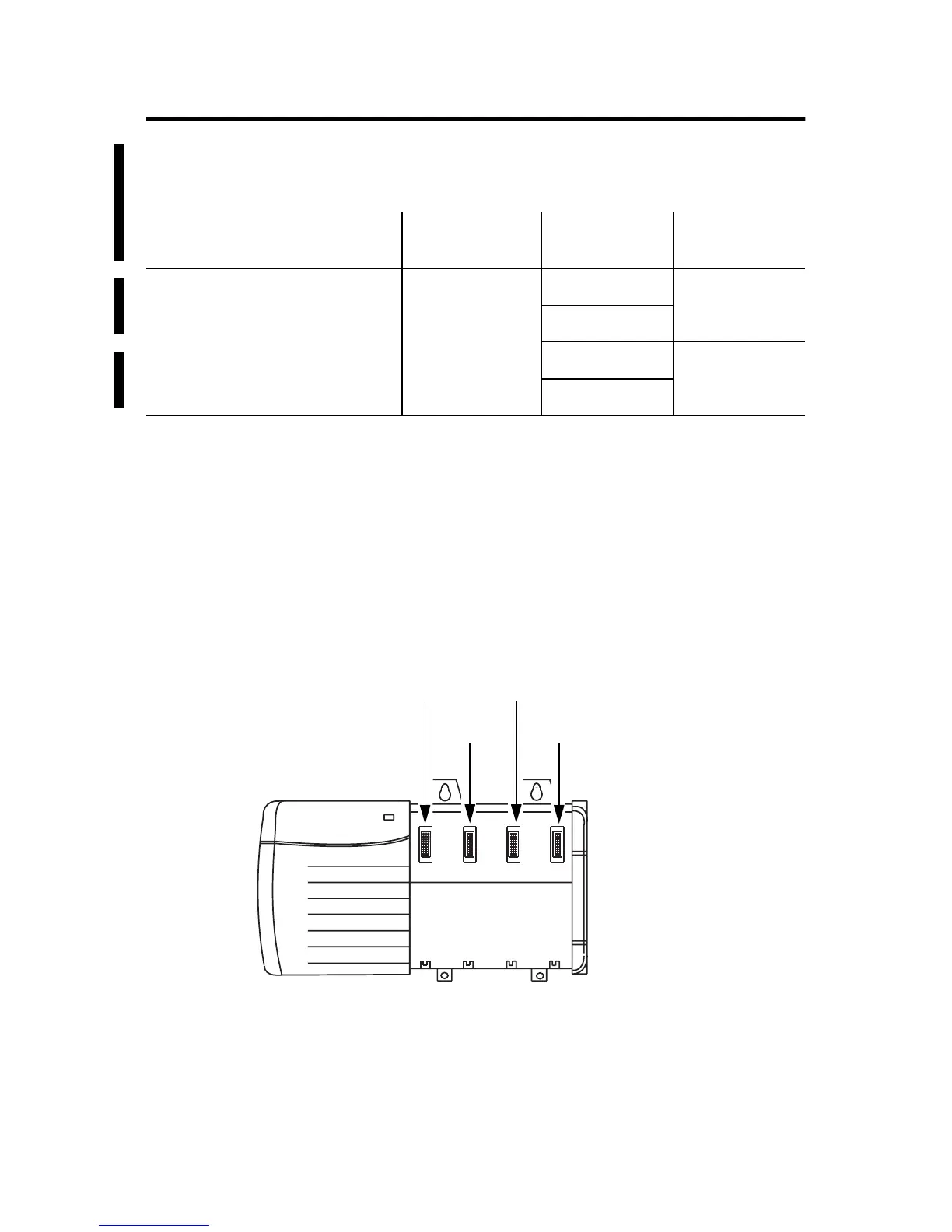

This figure shows chassis slot numbering in a 4-slot chassis. Slot 0 is
the first slot and is always located to the right of the power supply.
You can use any size ControlLogix chassis and install the module in
any slot. You can also install multiple 1756-DNB modules in the same
chassis. You can install as many modules as your power supply can
accommodate (i.e., number for which the power supply is rated).
Chassis
Type
Chassis
Installation
Power
Supply
Power Supply
Installation
Series B: 1756-A4, -A7, -A10, -A13 Pub. No.
1756-IN080
1756-PA72/B Pub. No.
1756-5.67
1756-PB72/B
1756-PA75/A Pub. No.
1756-5.78
1756-PB75/A
Power Supply
Slot 0
Slot 1
Slot 2
Slot 3
Chassis
Allen-Bradley
