14 ControlLogix DeviceNet Scanner Module
Publication 1756-IN566B-EN-P - April 2001
Using the Manual Configuration Pushbutton
The 1756-DNB scanner module has a dual function pushbutton.
• Without a network connection it displays baud rates, allowing
you to select the rate for your module.
• With a network connection it displays the MAC ID or network
node address, allowing you to select the node address for your
module.
If your module is not connected to the network:
1. Select the network baud rate by pushing and holding the
pushbutton.
You can use RSNetWorx for DeviceNet software to
set the baud rate and MAC ID of your module. The
1756-DNB module is also equipped with a manual
pushbutton for setting baud rate and MAC ID, as
described in the following section.

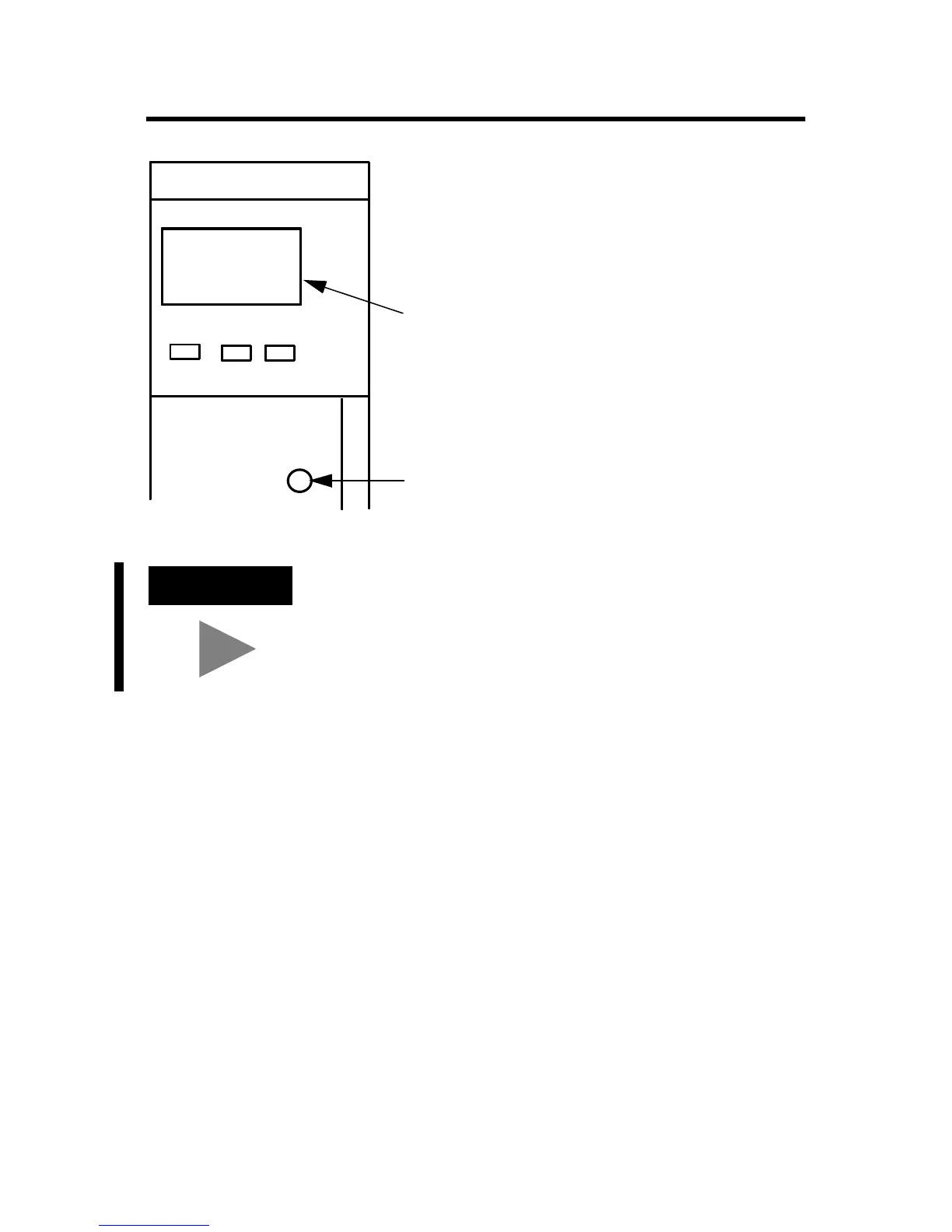

DeviceNet
TM
MOD/NET I/O OK
1. Firmware major revision (01 through 128)
2. Firmware minor revision (01 through 255)
3. Optional Firmware Build Number
4. Baud rate (125, 250, or 500)
5. MAC ID (00 to 63)
Alphanumeric
Display
Manual
Configuration
Pushbutton
To Next Page
