Allen-Bradley ControlNet PLC-5 User Manual

1785-UM022B-EN-P - February 2002
2-32 Planning to Use Your ControlNet PLC-5 Processor
Personal computer
with 1784-KTCX15 card
(ISA-based) and
your HMI or
programming software
Personal computer or
other serial device
and your HMI or
programming software
Laptop computer with
1784-PCC card (PCMCIA-based)
and your HMI or
programming software
Serial connection
1770-KFC15
Interface
PLC-5/40C
ControlNet Network
1794-ACNR15
Flex I/O Adapter
1771-ACNR15
Adapter
Data Highway Plus link
Remote I/O link
PLC-5/40C
1784-PCC1 to PLC-5 (NAP
port or any other NAP port)*

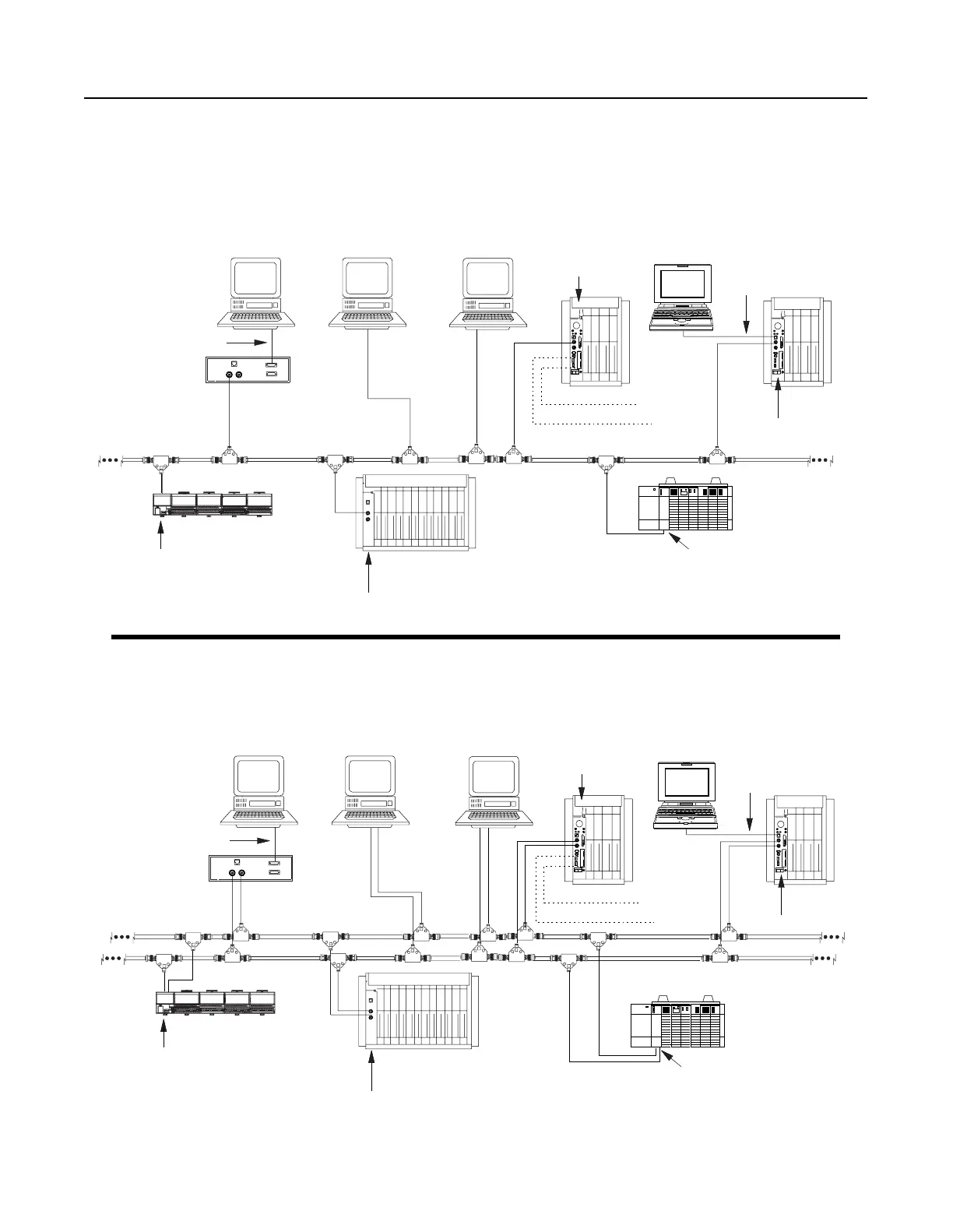

Example of a ControlNet Network without Redundant Media
Personal computer
with PCIC card (PCI-based)
and your HMI
or programming software
Tap (4 choices)
1786-TPR
Tap (4 choices)
1786-TPR
Tap (4 choices)
1786-TPR
1747-ACNR15
Adapter
Personal computer or
other serial device
and your HMI or
programming software
Serial connection
1770-KFC15
Interface
ControlNet Network
1794-ACNR15
Flex I/O Adapter
1771-ACNR15
Adapter
Data Highway Plus link
Remote I/O link
PLC-5/40C
Example of a ControlNet Network with Redundant Media
Personal computer
with 1784-KTCX15 card
(ISA-based) and
your HMI or
programming software
Laptop computer with
1784-PCC card (PCMCIA-based)
and your HMI or
programming software
PLC-5/40C
Personal computer
with PCIC card (PCI-based)
and your HMI
or programming software
Tap (4 choices)
1786-TPR
1747-ACNR15
Adapter
Tap (4 choices)
1786-TPR
Tap (4 choices)
1786-TPR
1784-PCC1 to PLC-5 (NAP
port or any other NAP port)*

Allen-Bradley ControlNet PLC-5 Specifications

General

Manufacturer	Allen-Bradley
Network Type	ControlNet
Programming Software	RSLogix 5
Product Type	PLC
Communication Ports	ControlNet, DH+
Programming Languages	Ladder Logic
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% (non-condensing)
Processor Type	PLC-5 Processor
Power Supply	24V DC
