Configuring a Scanner to Communicate with the 1203-GK5 Module or 1336-GM5 Board 4-5
3. Click Yes to display the Create EDS Stub dialog box.

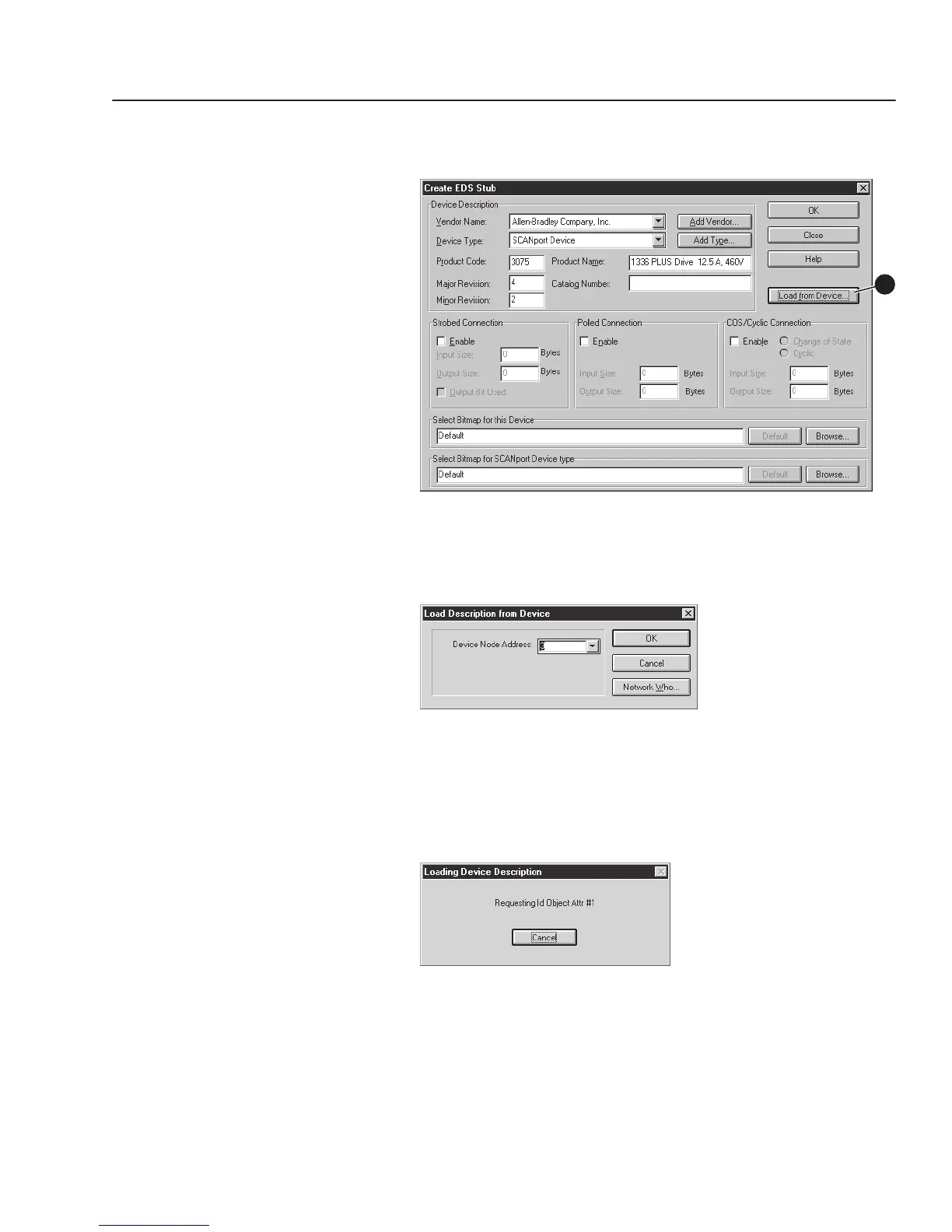

Figure 4.5
Create EDS Stub Dialog Box
4. Click Load from Device to display the Load Description from
Device dialog box.
Figure 4.6
Load Description from Device Dialog Box
5. In the Device Node Address box, type the node address that you
set in the 1203-GK5 module or 1336-GM5 board, and then click
OK. The Loading Device Description dialog box appears and
displays the loading status.
Figure 4.7
Loading Device Description Dialog Box
