3-6 Installing the 1203-GK5 Module or 1336-GM5 Board
Removing the 1203-GK5
Communications Module
To remove the 1203-GK5 communications module, you need to:
1. Remove power from the network.
2. Remove the SCANport cable from the product and then from the
module.
3. Unscrew (using a 1/8" flathead screwdriver) and then unplug the
5-pin or 10-pin connector from the module.

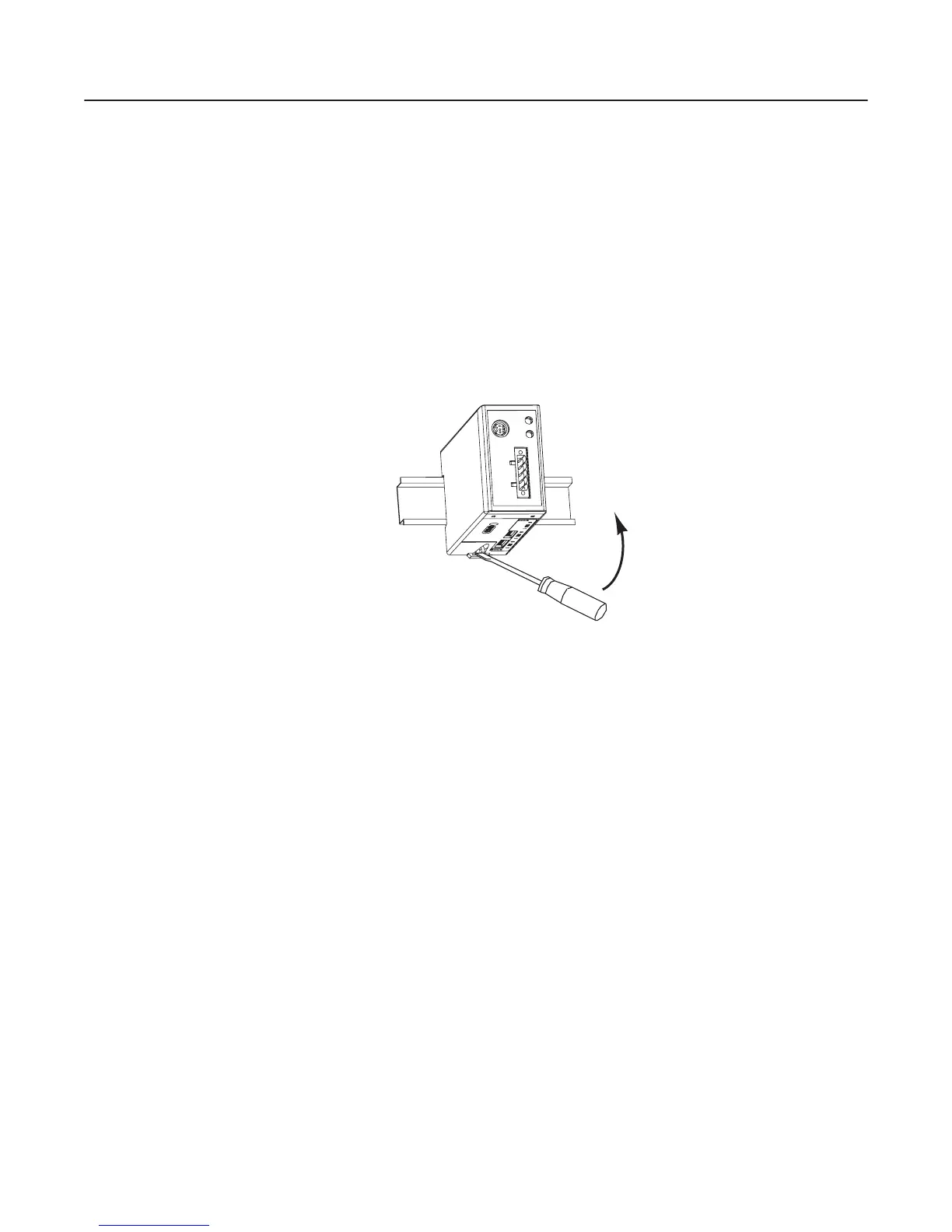

4. Insert a flathead screwdriver into the module DIN rail tab release
and gently push the handle toward the module to release the
connection tab. Then pull the module up and off the DIN rail.
Figure 3.6
Mounting the Module onto the DIN Rail
AB0944
