4-12 Configuring a Scanner to Communicate with the 1203-GK5 Module or 1336-GM5 Board

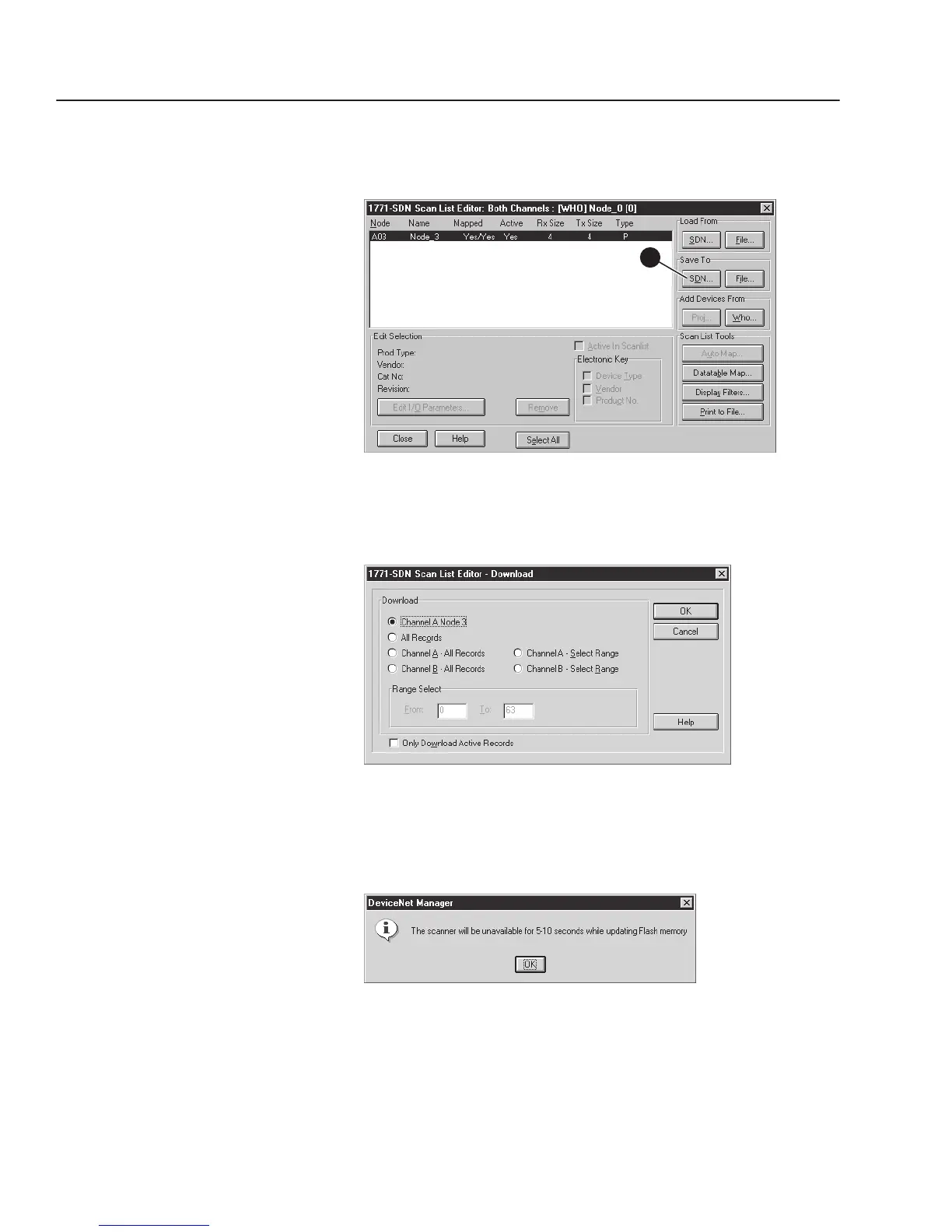

15. Click Map. The Scan List Editor: Both Channels dialog box
reappears and Yes/Yes appears under Mapped.
Figure 4.19
Scan List Editor: Both Channels Dialog Box
16. Under Save To, click SDN to display the 1771-SDN Scan List
Editor — Download dialog box.
Figure 4.20
1771-SDN Scan List Editor Download Dialog Box
17. Select the records to download, and then click OK to download
these records to the PLC. A DeviceNet Manager message
appears.
Figure 4.21
DeviceNet Manager Message
18. Click OK. When the download is complete, the 1771-SDN Scan
List Editor: Both Channels dialog box appears.
The PLC is now configured to communicate with the product
connected to the network with the 1203-GK5 module or 1336-GM5
board. Refer to the “Saving a Configuration to a File and Quitting
DeviceNet Manager” on page 4-18.
