Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 267

Quickstarts Appendix C

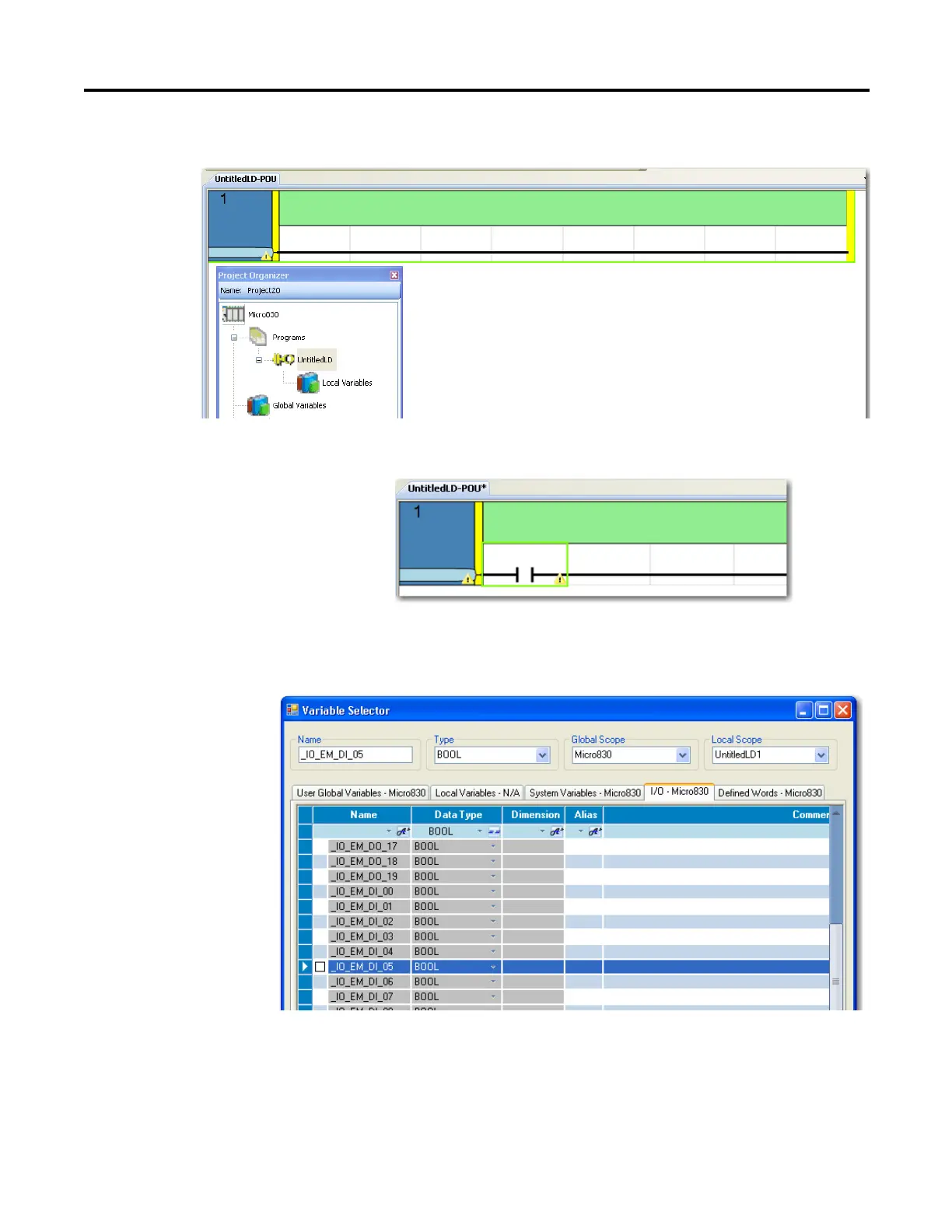

3. Right-click UntitledLD and select Open.

4. From the Toolbox, double-click Direct Contact to add it to the rung or

drag and drop Direct Contact onto the Rung.

5. Double-click the Direct Contact you have just added to bring up the

Variable Selector dialog. Click I/O Micro830 tab. Assign the Direct

Contact to input 5 by selecting _IO_EM_DI_05. Click OK.
