268 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019

Appendix C Quickstarts

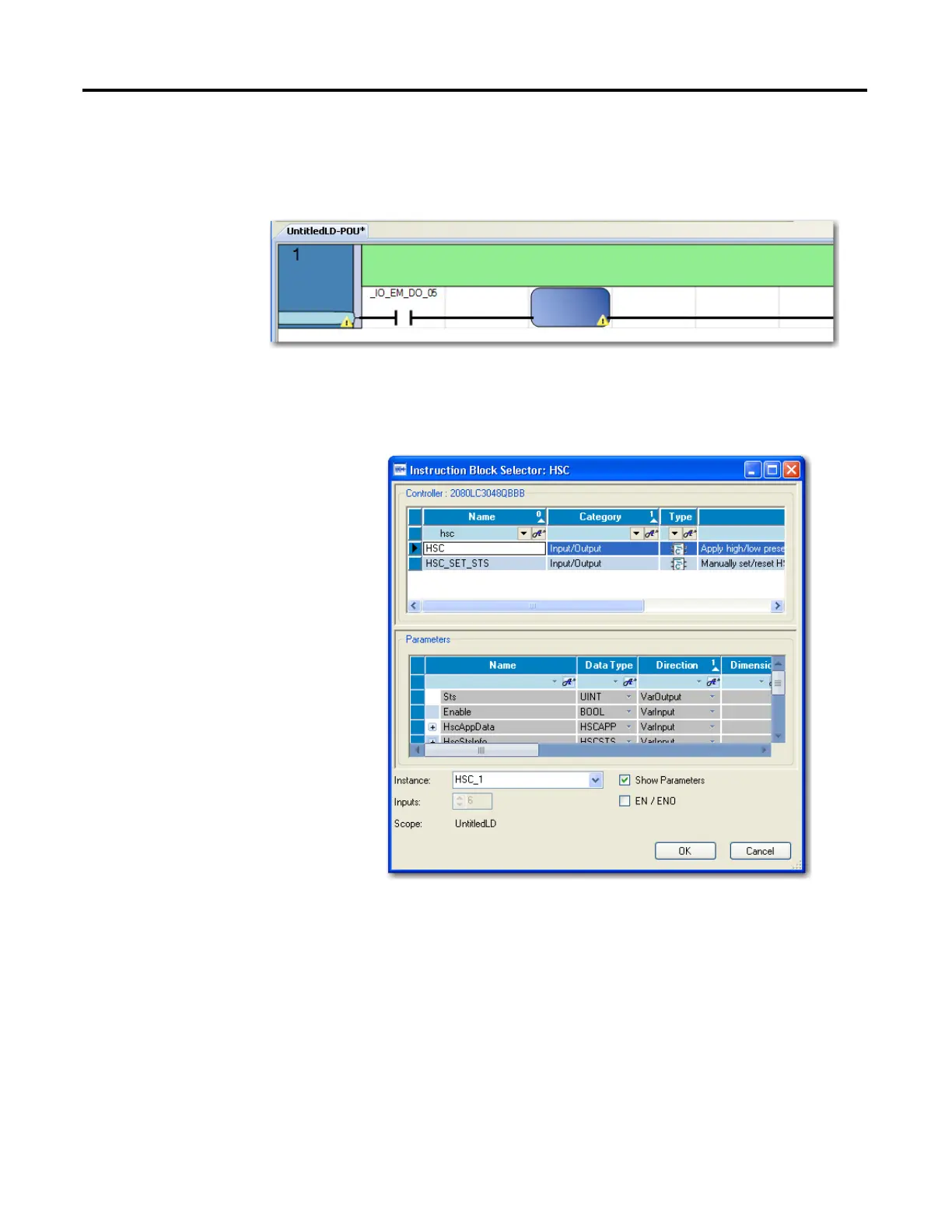

6. To the right of the Direct Contact, add a function block by double-clicking

function block from the Toolbox or dragging and dropping the function

block onto the rung.

7. Double-click the function block to open up Instruction Selector dialog.

Choose HSC. You can do a quick search for HSC function block by typing

“hsc” on the name field. Click OK.

Default Chapter3
