Allen-Bradley MicroLogix 1762-IF4 User Manual

MicroLogix 1762-IF4 Analog Input Module 13
Publication 1762-IN012C-EN-P - June 2013

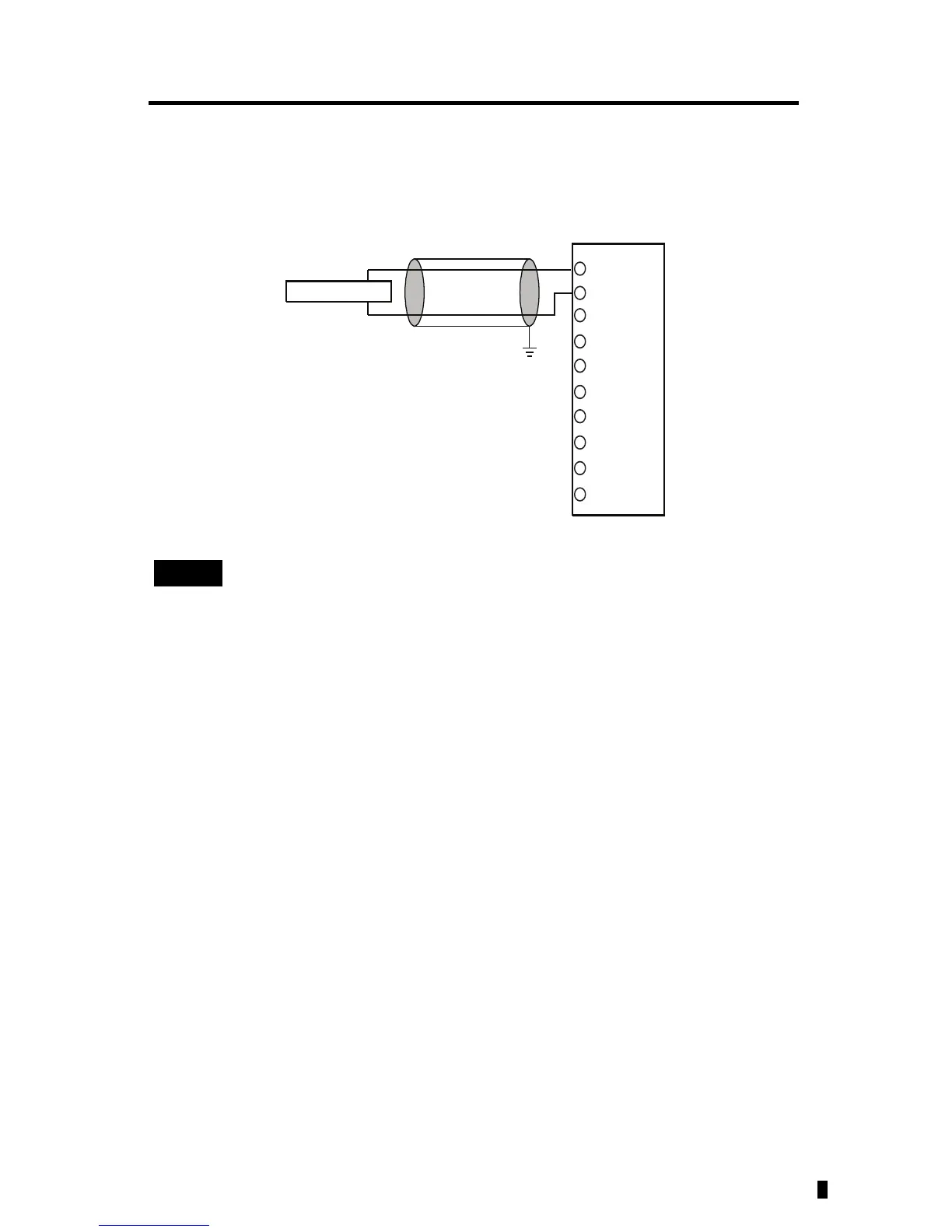

Basic Input Wiring to the 1762-IF4 Module
Differential Sensor Transmitter Types
TIP
Grounding the cable shield at the module end only usually provides sufficient
noise immunity. However, for best cable shield performance, earth ground the
shield at both ends, using a 0.01µF capacitor at one end to block AC power
ground currents, if necessary.
IN 0 (+)
IN 0 (-)
IN 3 (+)
IN 3 (-)
IN 2 (+)
IN 2 (-)
COM
IN 1 (-)
IN 1 (+)
COM
Analog Sensor
