5. Make sure the ends of the legend inserts are positioned behind the panel
cutout.
6. Install the 6 self-locking nuts, hand tight.
7.
Alternately tighten the self-locking nuts until the terminal is held firmly
against the panel. Tighten the nuts to a torque of 10 inch-pounds. Do not
overtighten nuts
.
8.
Remove the protective installation label covering the top vents of the terminal.
Mounting nuts must be tightened to a torque of 10
inch-pounds to provide a proper seal and to prevent
potential damage to the terminal. Allen-Bradley assumes
no responsibility for water or chemical damage to the
terminal or other equipment within the enclosure because
of improper installation.
Failure to remove the protective installation label covering
the top vents could result in overheating and damage to the
terminal.

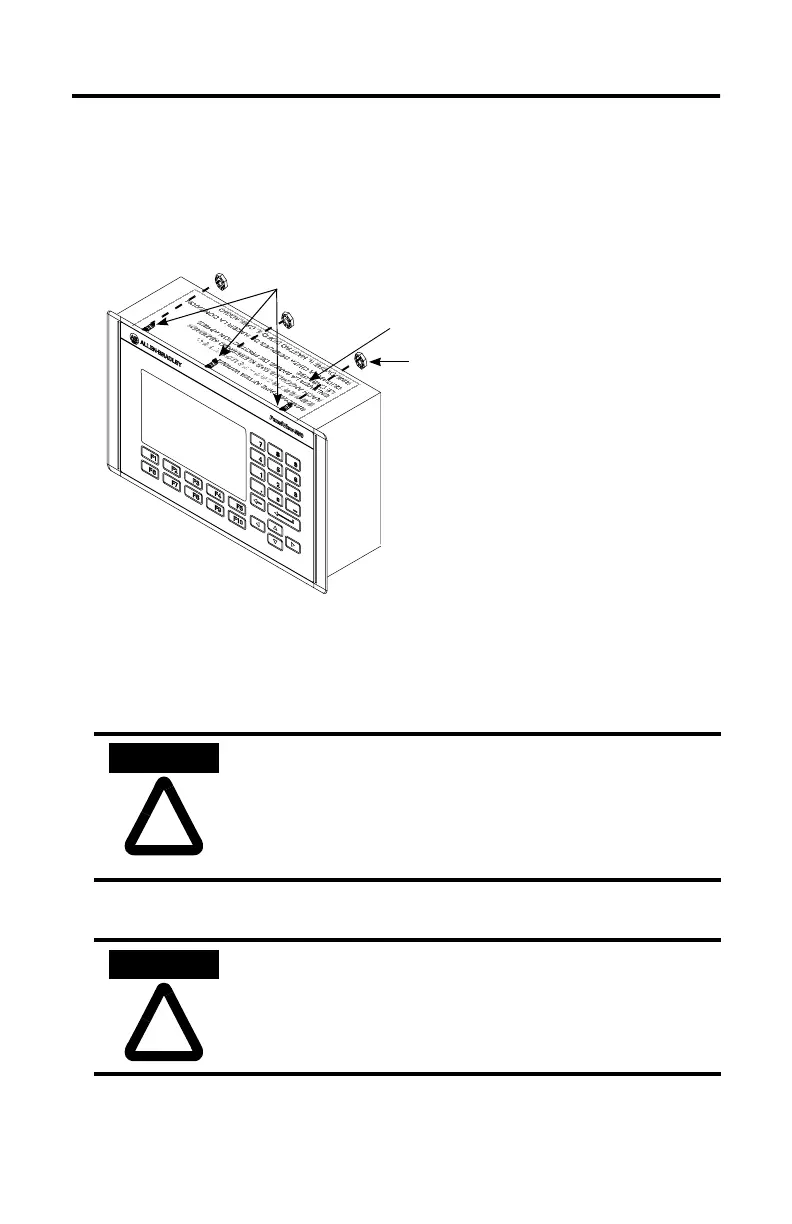

Self-locking Nuts
(6 used, 8 provided)
Protective Installation Label
Mounting Studs
(3 Top / 3 Bottom)
