PanelView 550 Terminals 7
40061-325-01(D)

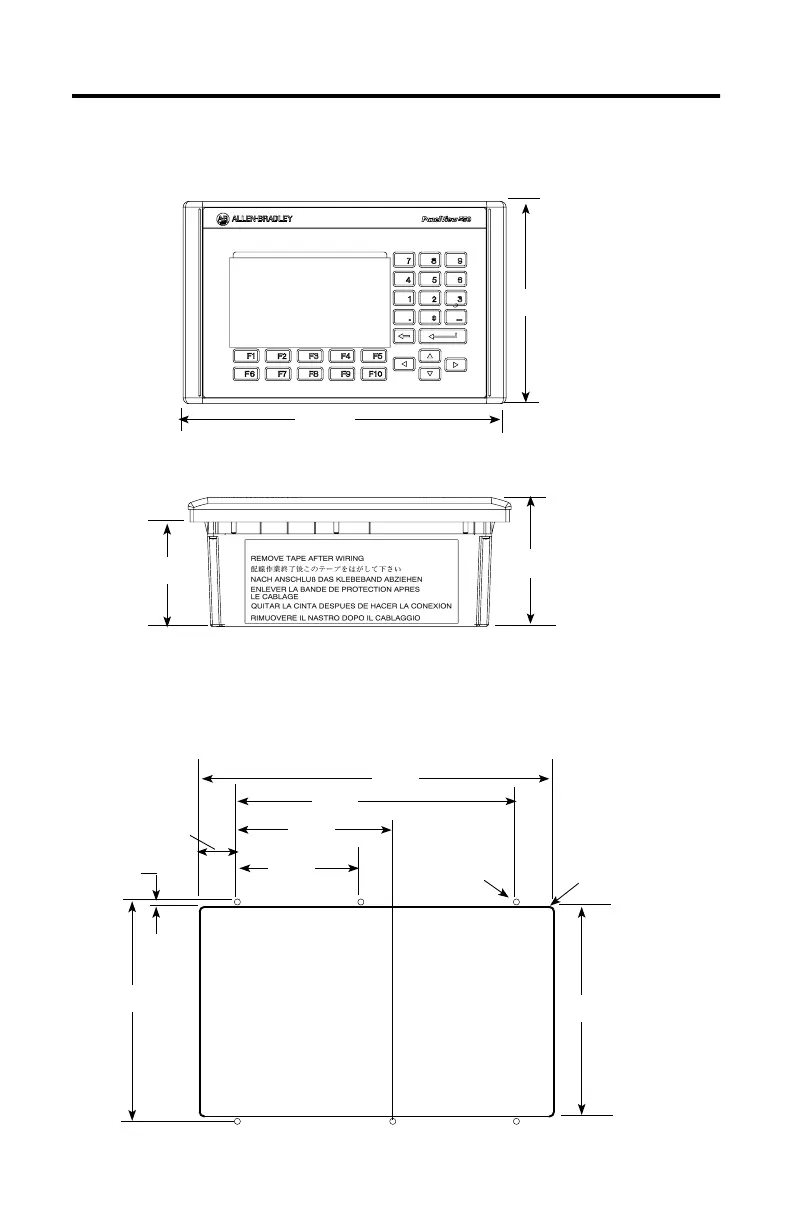

Mounting Dimensions
Cutout Dimensions
Use the full size template shipped with the terminal to mark the cutout
dimensions. The figure below shows a reduced size cutout.
266 mm
(10.47 in)
106 mm
(4.17 in)
167 mm
(6.57 in)
86 mm
(3.39 in)
Top View
150 mm
(5.91 in)
144 mm
(5.66 in)
243 mm
(9.55 in)
191 mm
(7.51 in)
106 mm
(4.19 in)
3.3 mm
(0.13 in)
85 mm
(3.33 in)
4.8 mm dia.
(0.188 in)
3.3 mm
(0.13 in)
25.9 mm
(1.02 in)
FRONT
Recommended Panel
Cutout Dimensions
