8 PanelView 550 Terminals
40061-325-01(D)
Clearances

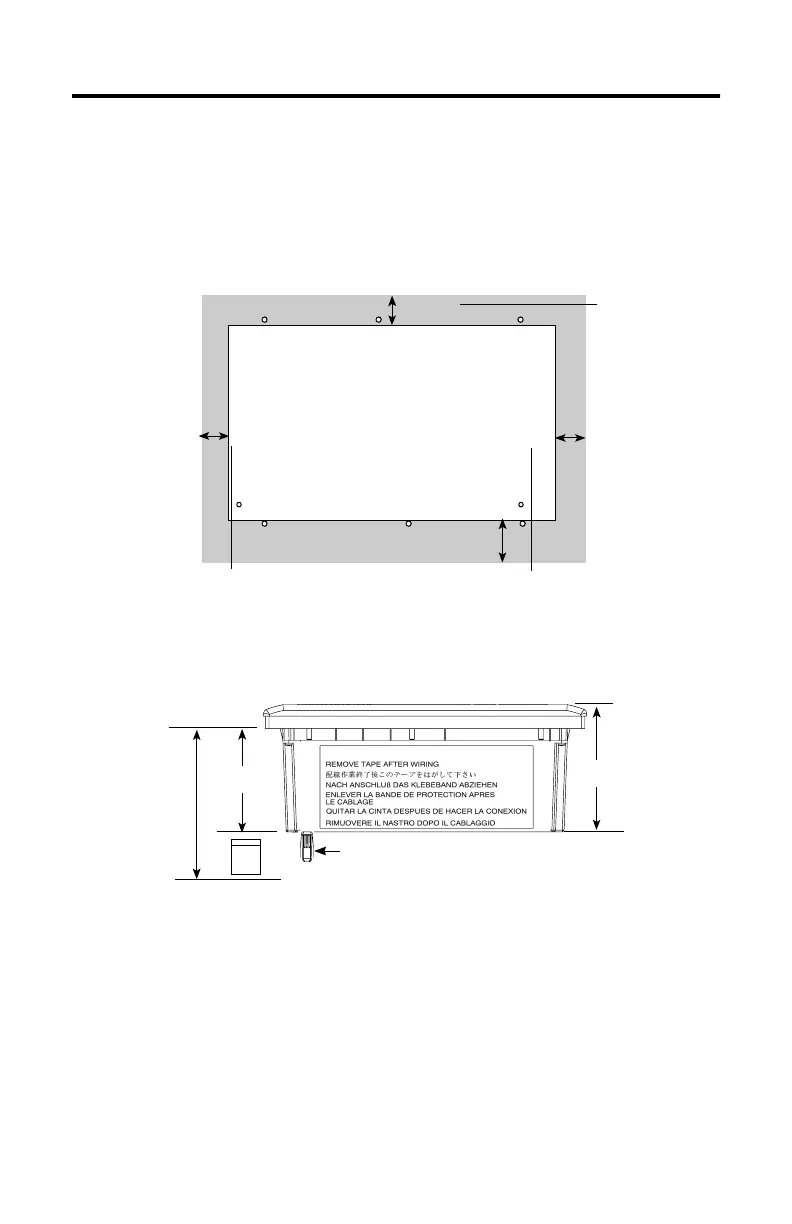

Allow adequate clearances for mounting, air flow, maintenance, and for installing
a memory card and legend inserts.
Leave 38 mm (1.5 in.)
for Mounting and Legend Inserts
Leave 25 mm (1 in.)
for Mounting and Air Flow
Leave 25 mm (1 in.)
for Mounting and Air Flow
Leave 25 mm (1 in.)
for Mounting and
Air Flow
Side, Top and Bottom Clearances
Back Clearance
Terminal Cutout
Use Full Size Template
shipped with Terminal
Front View
106 mm
(4.17 in)
86 mm
(3.39 in)
Memory Card Retainer
Approximately 207
mm (8.15 in.) is
required to insert
and remove a
memory card with
the memory card
retainer.
card
