36 Rockwell Automation Publication 2711R-UM001E-EN-E - January 2017
Chapter 2 Configuration Mode
Reboot the Terminal
You can restart the terminal without having to disconnect and reapply power.
After a reset, the terminal performs a series of startup tests and then either enters
configuration mode or runs the startup application.

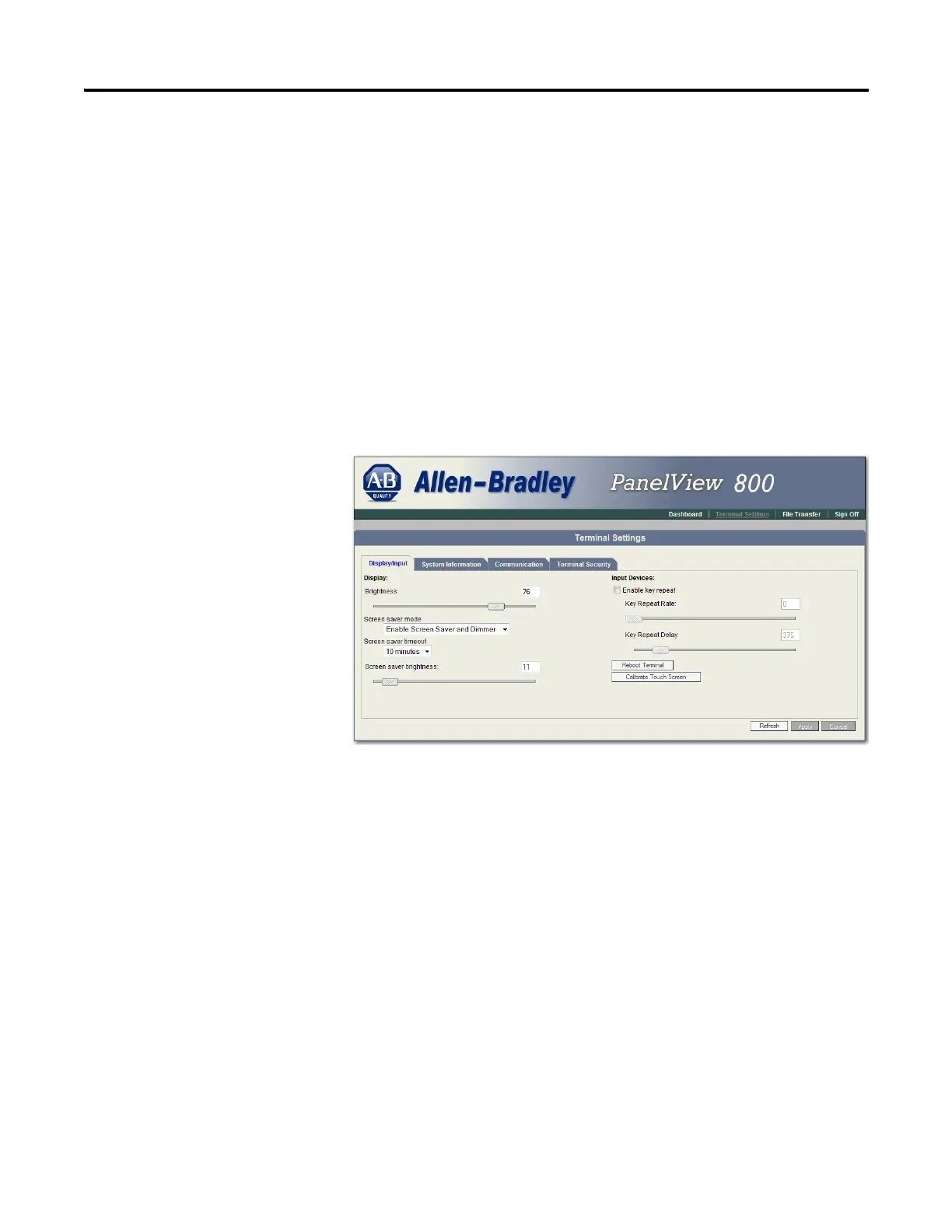

Follow these steps to reboot the terminal from PanelView Explorer.
(1)
1. Go to the PanelView Explorer Startup window.
2. Click the Terminal Settings link.
3. Click the Display/Input tab.
4. Click Reboot Terminal.
(1)
The PanelView Explorer feature is not supported on PanelView 800 terminals from firmware revision 3.011
onwards.
