Publication 2711P-UM001A-EN-P

Terminal Connections 6-13

Remote I/O Connections

To connect a PanelView Plus terminal to a Remote I/O scanner, use

cable Catalog No. 1770-CD (equivalent to Belden 9463). The

maximum cable length (link distance) is determined by the baud rate.

• 2,800 meters (10,000 feet) for 57.6K baud

• 1,400 meters (5,000 feet) for 115.2K baud

• 700 meters (2,500 feet) for 230.4K

See Programmable Controller Wiring and Grounding Guidelines,

Publication 1770-4.1. The user manual for the I/O scanner module

also provides cabling information.

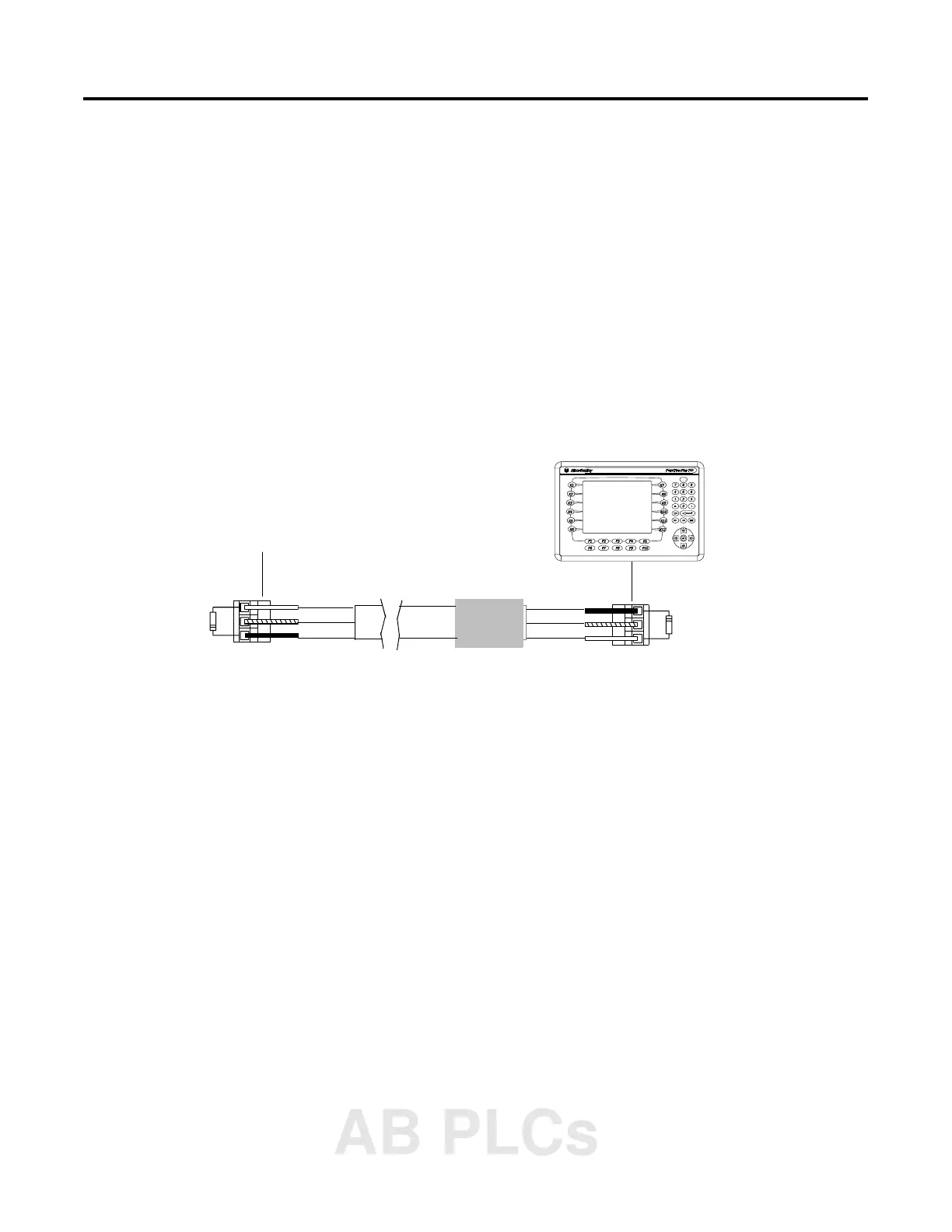

The orientation of the Remote I/O Connector on the PanelView Plus is

reversed from the PLC Scanner connector. However, the polarity is the

same as the scanner card connection to the SLC.

Logic Controller or

Scanner Remote I/O Port

PanelView Plus

82 or 150 Ohm Terminating Resistor

Blue 1

Shield SH 2

Clear 3

Shield SH 2

Blue 1

Belden

Ferrite

AB PLCs
