Allen-Bradley PanelView Plus 1000 User Manual

Publication 2711P-UM001A-EN-P
Installing and Replacing Components 5-13

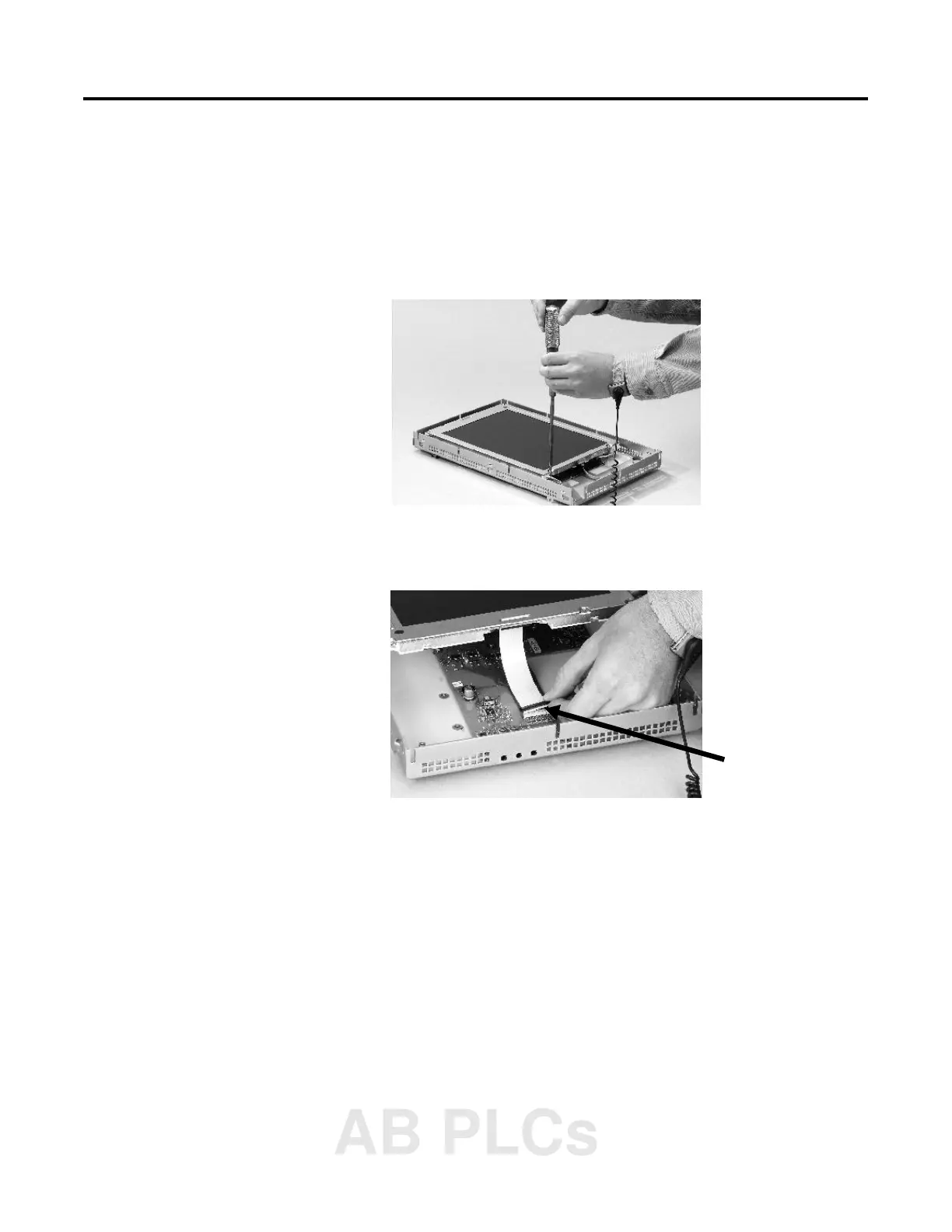

Replacing Backlight
This section shows how to replace the backlight for the 700, 1000, and
1250 models. The 1500 does not have a replaceable backlight.
1. Disconnect power from the terminal.
2. Remove Display Module bezel as described on page 5-11.
3. Remove the 4 screws that secure the LCD Display.
4. Lift the LCD Display and detach the Display Connector from the
circuit board. The location of the connector varies by model.
Display
Connector
AB PLCs

Allen-Bradley PanelView Plus 1000 Specifications

General

Display Size	10.4 inches
Resolution	640 x 480 pixels
Touchscreen	Analog resistive
Operating System	Windows CE
Memory	64 MB RAM
Storage	64 MB Flash
Communication Ports	Ethernet, RS-232, USB
Input Voltage	24V DC
Display Type	Color TFT
Processor	XScale
Enclosure	NEMA 4X
Operating Temperature	0°C to 50°C
