Allen-Bradley PanelView Plus 1000 User Manual

Publication 2711P-UM001A-EN-P
1-4 Overview
Communication Modules
You can attach a separate Communication Module to the base
configured unit of the PanelView Plus terminal to increase your
communications capability.
• DH+/DH485/Remote I/O
The Communication Modules install easily on top of the Logic
Module on the back of the unit.
Remote AC Power Supply
The Logic Module provides a DC power input. For applications using
AC power, a remote AC to DC power supply is available for DIN Rail
mounting.

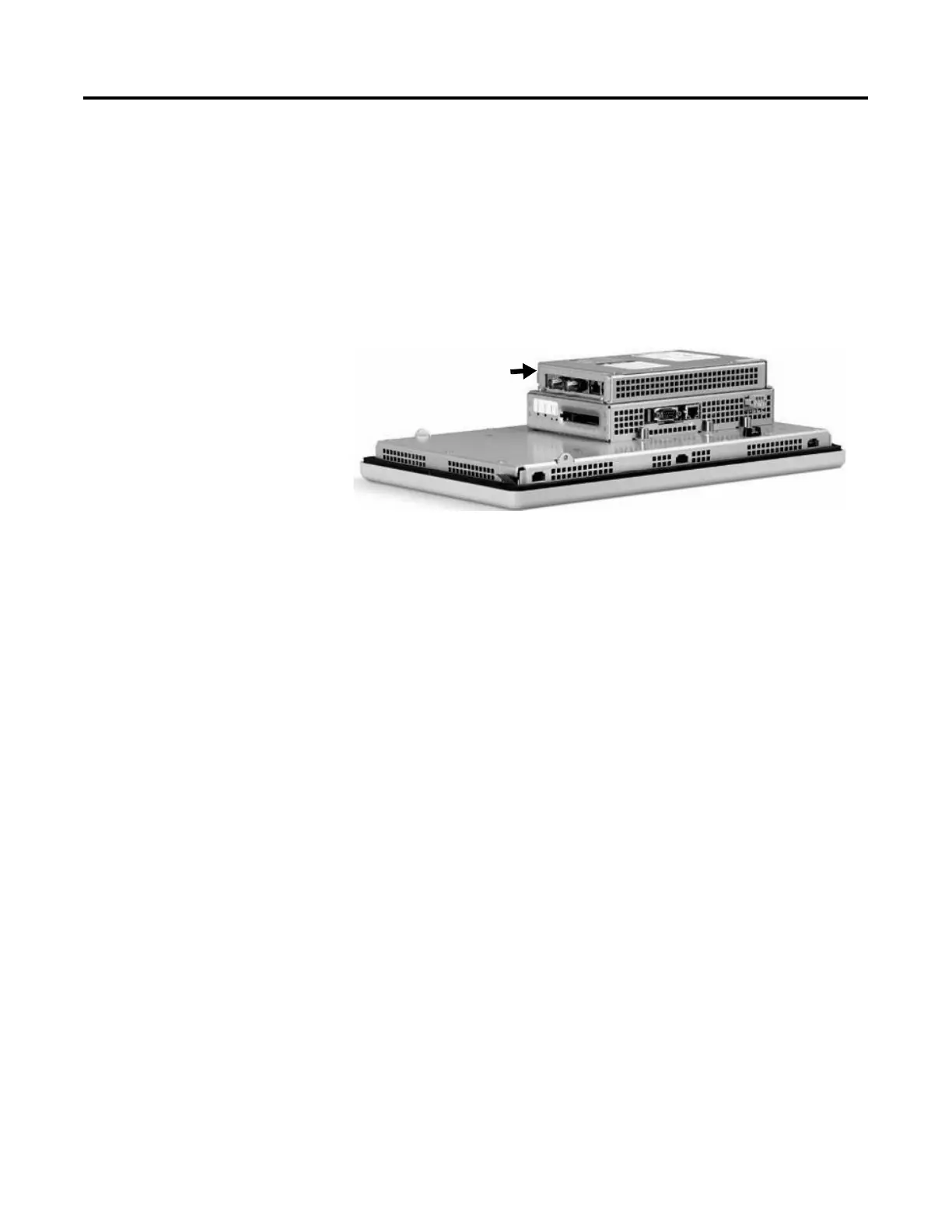

Communication Module

Allen-Bradley PanelView Plus 1000 Specifications

General

Display Size	10.4 inches
Resolution	640 x 480 pixels
Touchscreen	Analog resistive
Operating System	Windows CE
Memory	64 MB RAM
Storage	64 MB Flash
Communication Ports	Ethernet, RS-232, USB
Input Voltage	24V DC
Display Type	Color TFT
Processor	XScale
Enclosure	NEMA 4X
Operating Temperature	0°C to 50°C
