Publication 2711P-UM001A-EN-P
5-2 Installing and Replacing Components
Installing RAM and Internal
Compact Flash
The Logic Module (2711P-RP) of the PanelView Plus terminal does not
contain RAM (2711P-RRxxx) or Internal Compact Flash (2711P-RWx)
when ordered as a separate component. You must install the RAM and
Internal Compact Flash before attaching the Logic Module to the
Display Module.
To install/replace RAM and/or Internal Compact Flash:
1. Remove power from the terminal.
2. Place the terminal, display side down, on a flat stable surface.
3. Loosen the 6 captive screws that secure the Logic Module.
4. Carefully lift the Logic Module away from the terminal and turn
over to expose the circuit board.

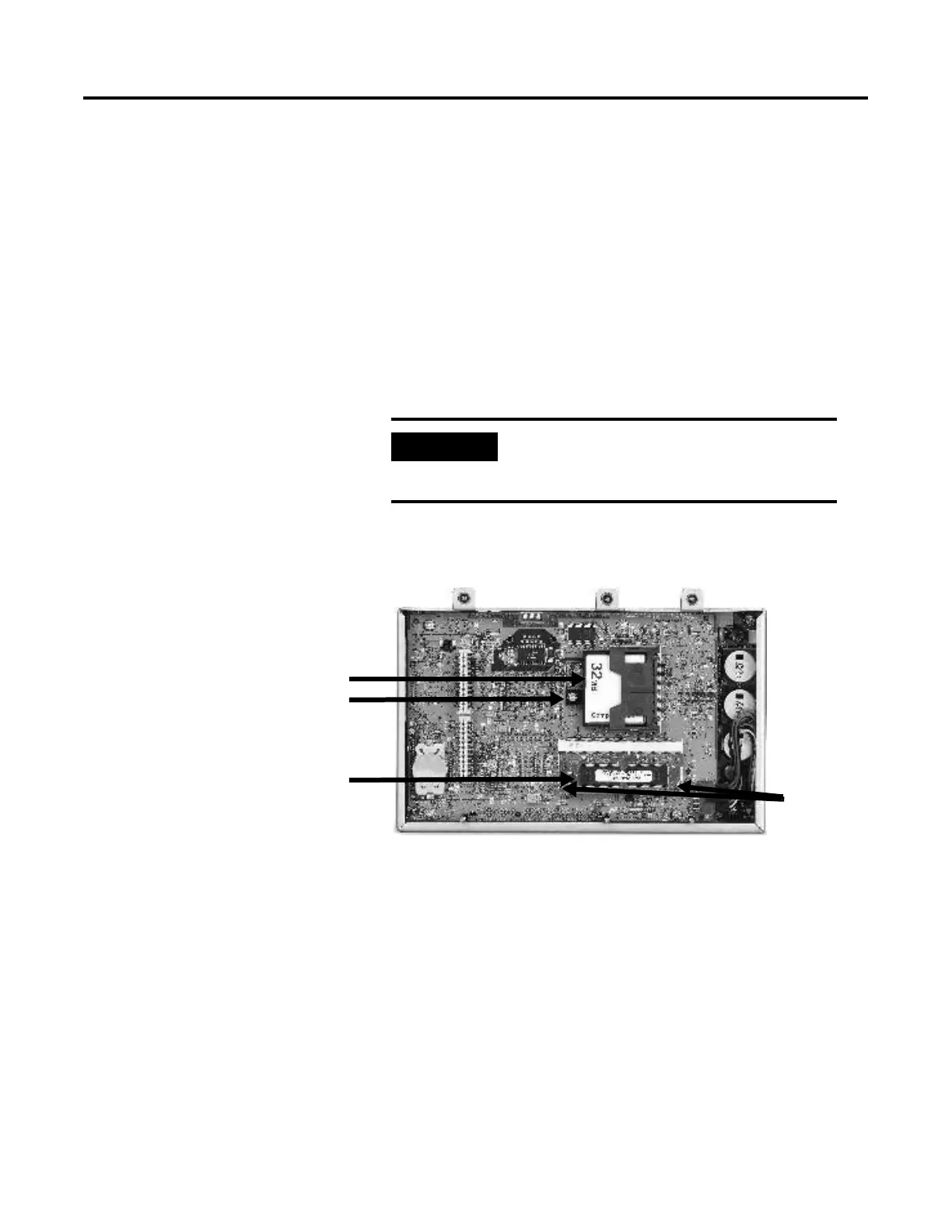

5. Locate the RAM module on the circuit board. Pull the metal
retaining clips away from the module and slide out the RAM
module (if present).
6. Insert the new RAM module at a 45° angle and snap down.
7. Locate the Internal Compact Flash card. Unscrew and remove
the retaining clip that secures the card.
8. Pull out the Compact Flash card (if present).
9. Insert the new Compact Flash card.
10. Re-attach retaining clip.
11. Attach the Logic Module by aligning the 2 connectors on the
bottom of the module with the connectors on the Display
Module.
12. Push down on the Logic Module until firmly seated.
13. Tighten the 6 captive screws that secure the Logic Module to a
torque of .68 N•m (6-8 in-lb).
IMPORTANT
Wear a properly ground ESD wristband
before touching any of the electronic
components in the Logic Module.
Skip Steps 5 - 6 if not replacing RAM.
Retaining
Clips
Skip Steps 7 - 11 if not replacing Internal
Compact Flash.
To Next Page
