Allen-Bradley PanelView Plus 1000 User Manual

Publication 2711P-UM001A-EN-P
Installation 2-3

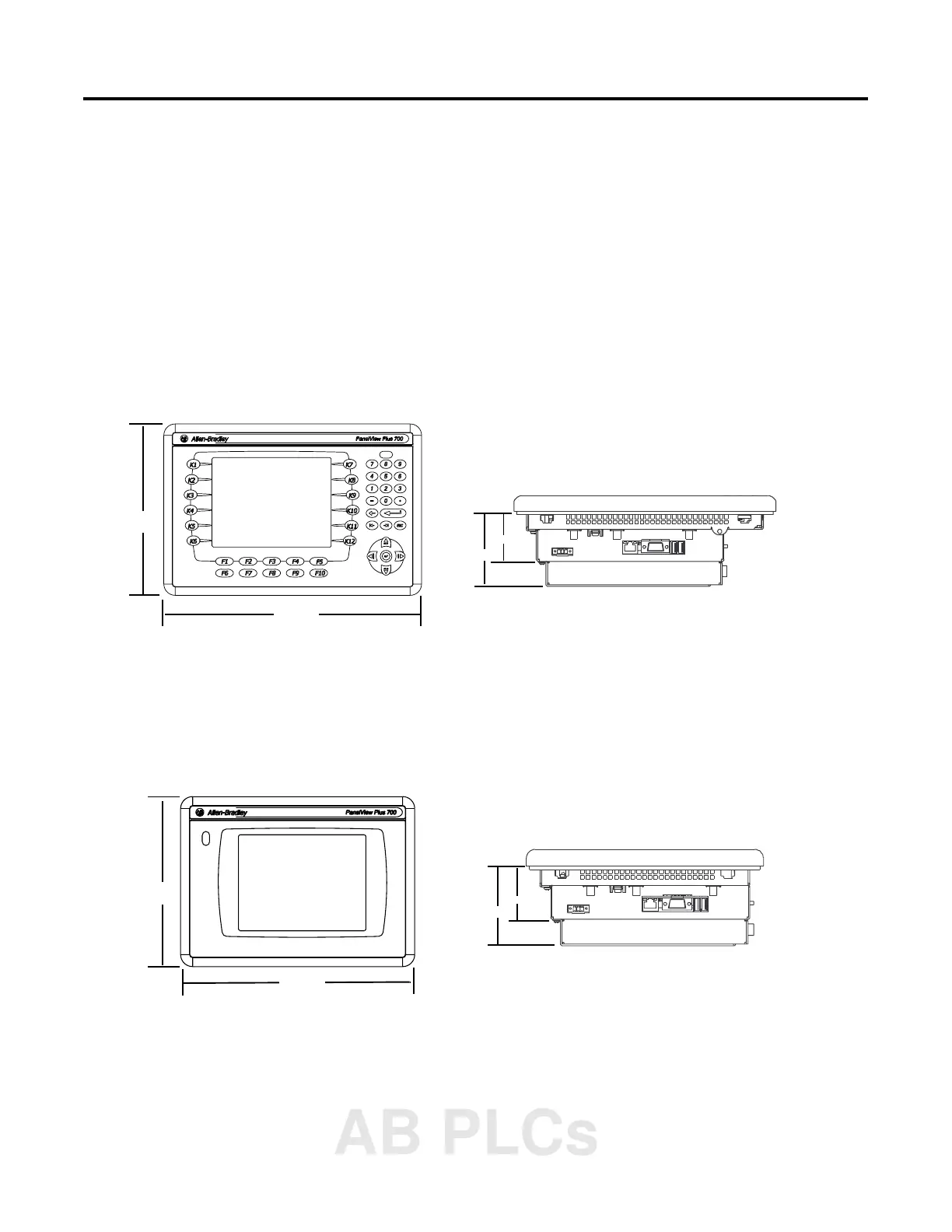

Mounting Dimensions
This section provides mounting dimensions for the PanelView Plus
terminals. The depth dimensions are shown for:
• base configured unit (Display Module and Logic Module)
• base configured unit with Communication Module
All dimensions are in mm (inches).
PanelView Plus 700
700 Touch Screen Terminal
179
(7.04)
246
(9.68)
290
(11.40)
193
(7.58)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
b
a
a
b
700 Keypad or Keypad & Terminal
AB PLCs

Allen-Bradley PanelView Plus 1000 Specifications

General

Display Size	10.4 inches
Resolution	640 x 480 pixels
Touchscreen	Analog resistive
Operating System	Windows CE
Memory	64 MB RAM
Storage	64 MB Flash
Communication Ports	Ethernet, RS-232, USB
Input Voltage	24V DC
Display Type	Color TFT
Processor	XScale
Enclosure	NEMA 4X
Operating Temperature	0°C to 50°C
