Allen-Bradley PanelView Plus 1000 User Manual

Publication 2711P-UM001A-EN-P
Overview 1-5
Display Modules
The PanelView Plus terminals offer a range of TFT color graphic
displays with either keypad, touch screen, or keypad & touch support.
• 700 (6.5 inch)
• 1000 (10.4 inch)
• 1250 (12.1 inch)
• 1500 (15 inch)
All of the displays have common features and firmware providing for
easy migration to a larger display. Field replaceable bezels are also
available.
Touch Screen

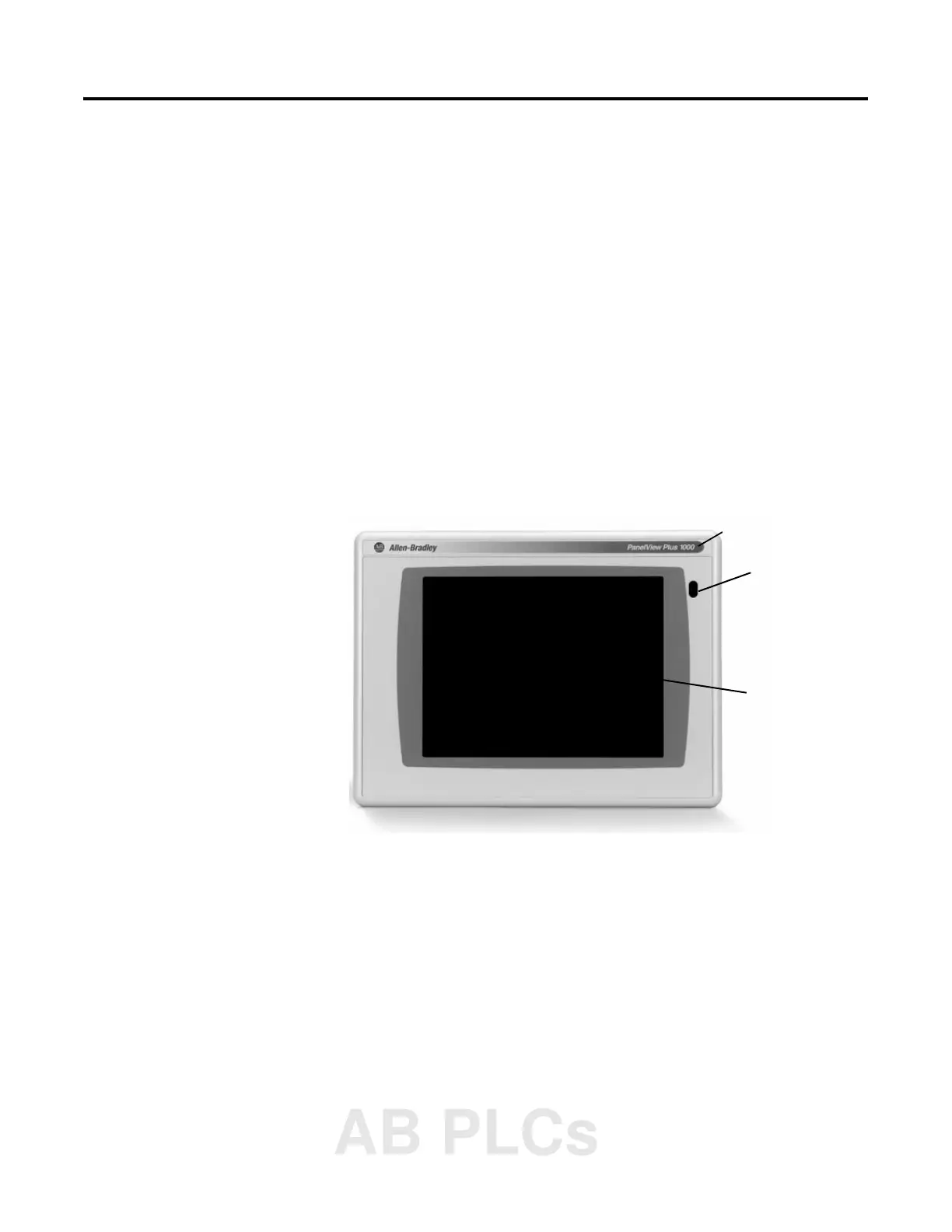

The following illustration shows a 1000 touch screen display. All of
the touch screen displays are analog resistive and similar except for
size.
IrDA Port
Allen-Bradley Label
Touch Screen
AB PLCs

Allen-Bradley PanelView Plus 1000 Specifications

General

Display Size	10.4 inches
Resolution	640 x 480 pixels
Touchscreen	Analog resistive
Operating System	Windows CE
Memory	64 MB RAM
Storage	64 MB Flash
Communication Ports	Ethernet, RS-232, USB
Input Voltage	24V DC
Display Type	Color TFT
Processor	XScale
Enclosure	NEMA 4X
Operating Temperature	0°C to 50°C
