Publication 2711P-UM001A-EN-P

6-10 Terminal Connections

DH-485/DH+/Remote I/O

Module

The PanelView Plus terminal with a DH-485/DH+/Remote I/O

Communication Module supports communications with the following

networks:

• DH+ networks

• DH-485 networks

• Remote I/O networks

You can communicate with only one network at one time.

Module Connections

The DH-485/DH+/Remote I/O Module is supplied with 2 ferrites for

cables. After installing the communications cable, place the ferrite

around the cable close to the Module Connector. The ferrites

suppress EMI (Electromagnetic Interference) from the cable.

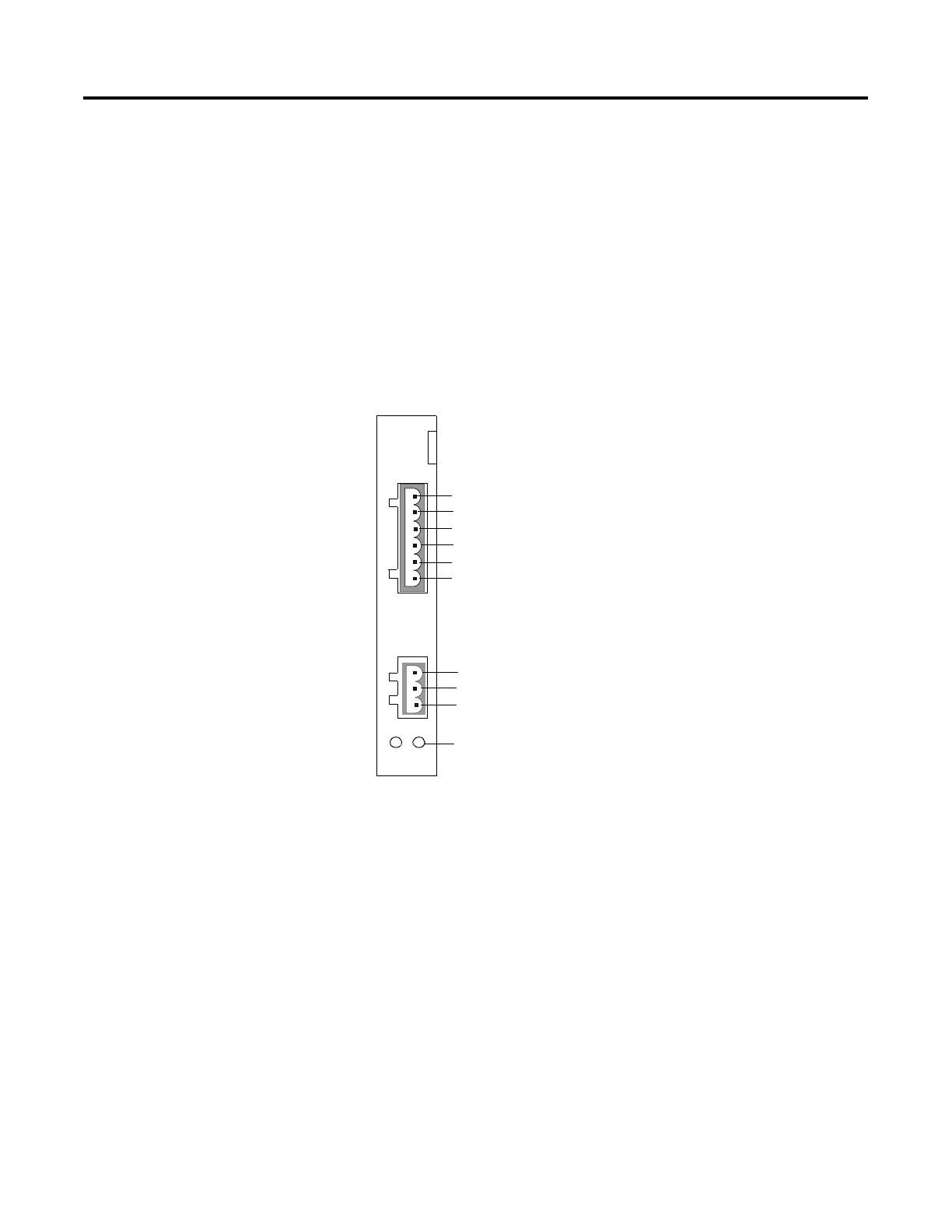

Allen

Bradley

DH485

DH+

RIO

Remote I/O

3. Clear

2. Shield/Drain

1. Blue

DH+

3. Blue

2. Shield/Drain

1. Clear

1. Earth Ground

2. Shield/Drain

3. Signal Ground

4. Channel B

5. Channel A

6. Termination Resistance

LED Indicator
