1 Publication 2711P-UM001A-EN-P

Chapter

Using Configuration Mode

Chapter Objectives

This chapter shows how to use the configuration screens of your

PanelView Plus terminal to:

• perform data entry and navigation

• load an ME application

• run an ME application

• modify application settings

• modify terminal settings

Starting Configuration

Mode

When you reset or startup the PanelView Plus, you should

automatically enter Configuration Mode.

If you are unable to enter confguration mode, see page 8-11 in

Chapter 8, Troubleshooting.

To access Configuration Mode from a running application:

• press the Goto Configuration Mode button.

The application stops running but is still loaded.

To activate buttons:

• on keypad terminals, select the

corresponding function key [Fx]

• on touch screen terminals, tap the

button with your finger or stylus.

• if a mouse is attached, make

selections with the mouse.

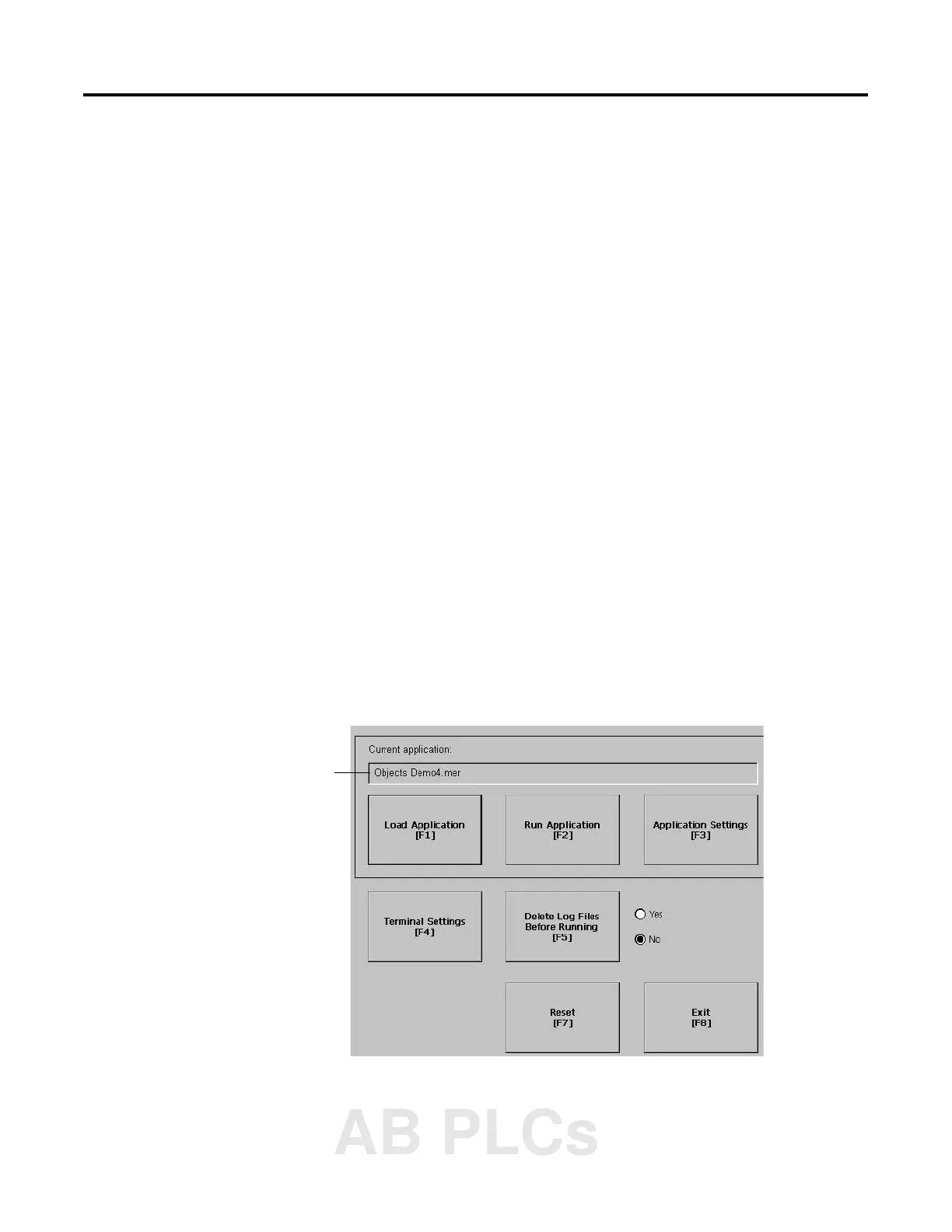

Name of application that is currently loaded.

Only appears if application is loaded.
