Publication 2711P-UM001A-EN-P

1-6 Overview

Keypad or Keypad & Touch

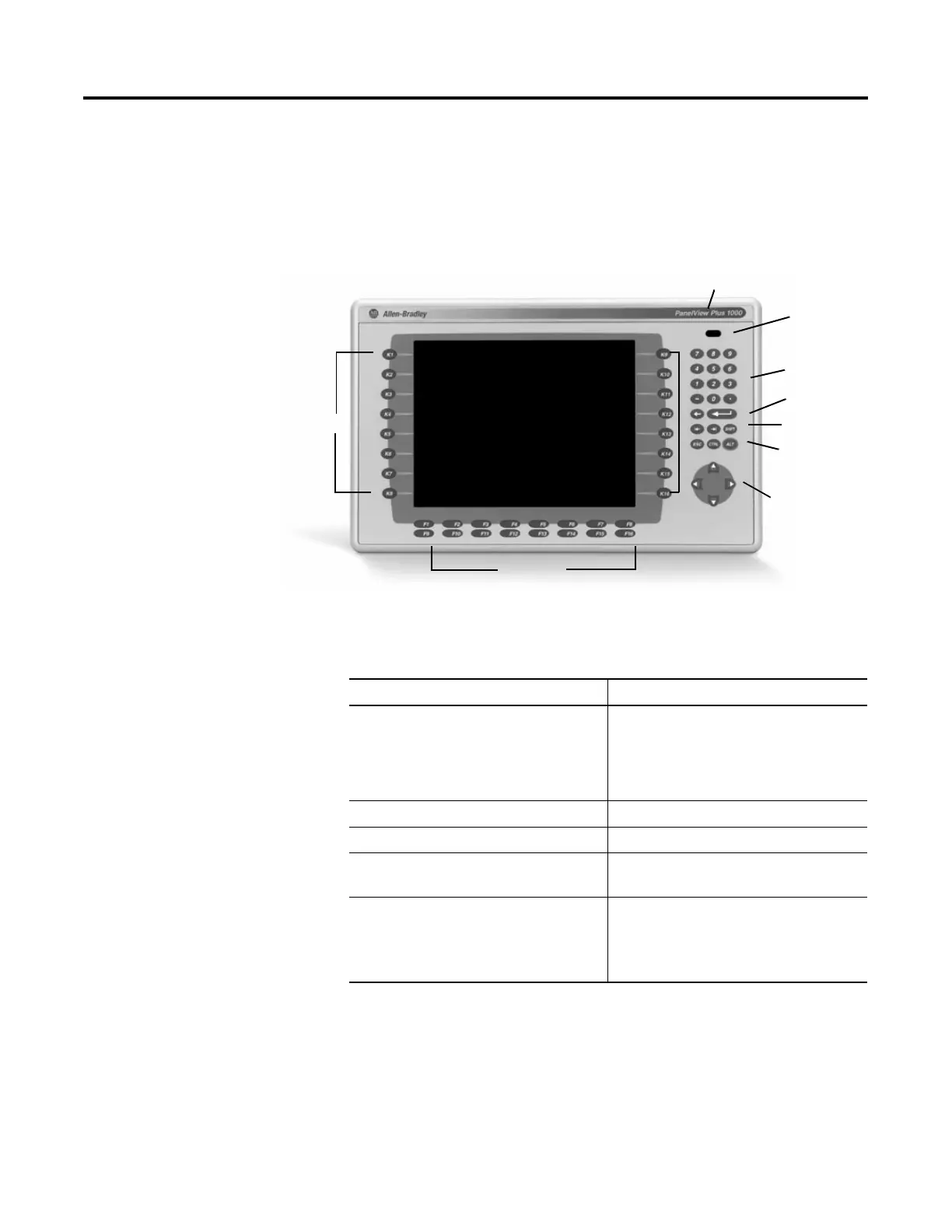

The following illustration shows the features of the 1000 keypad or

keypad & touch display. All of the displays are similar except for size

and the number of function keys available.

All of the Kxx and Fxx function keys on the keypad terminals are

programmable.

Backspace

and Enter Key

IrDA Port

Navigation Keys

Numeric Keypa

Function Keys

Allen-Bradley Label

Tab, Shift Keys

Esc, Ctl, Alt Keys

Function Keys

Feature Description

Function Keys

700 (F1-F10, K1-K12)

1000 (F1-F16, K1-K16)

1250 (F1-F20, K1-K20)

1500 (F1-F20, K1-K20)

Programmable keys that initiate functions

on terminal display. These keys may have

custom legends.

Label Allen-Bradley or customer applied label.

IrDA Port For data or application transfers.

Numeric Keypad 0-9, ., -, Backspace, Enter, Tab, Shift, Esc,

Ctrl, Alt keys

Navigation Keys Use the arrow keys to move cursor in lists,

select objects,

Alt+arrow key activates home, end, page

up, page down functions.
