Allen-Bradley PanelView Plus 1000 - Page 24

Publication 2711P-UM001A-EN-P
2-4 Installation

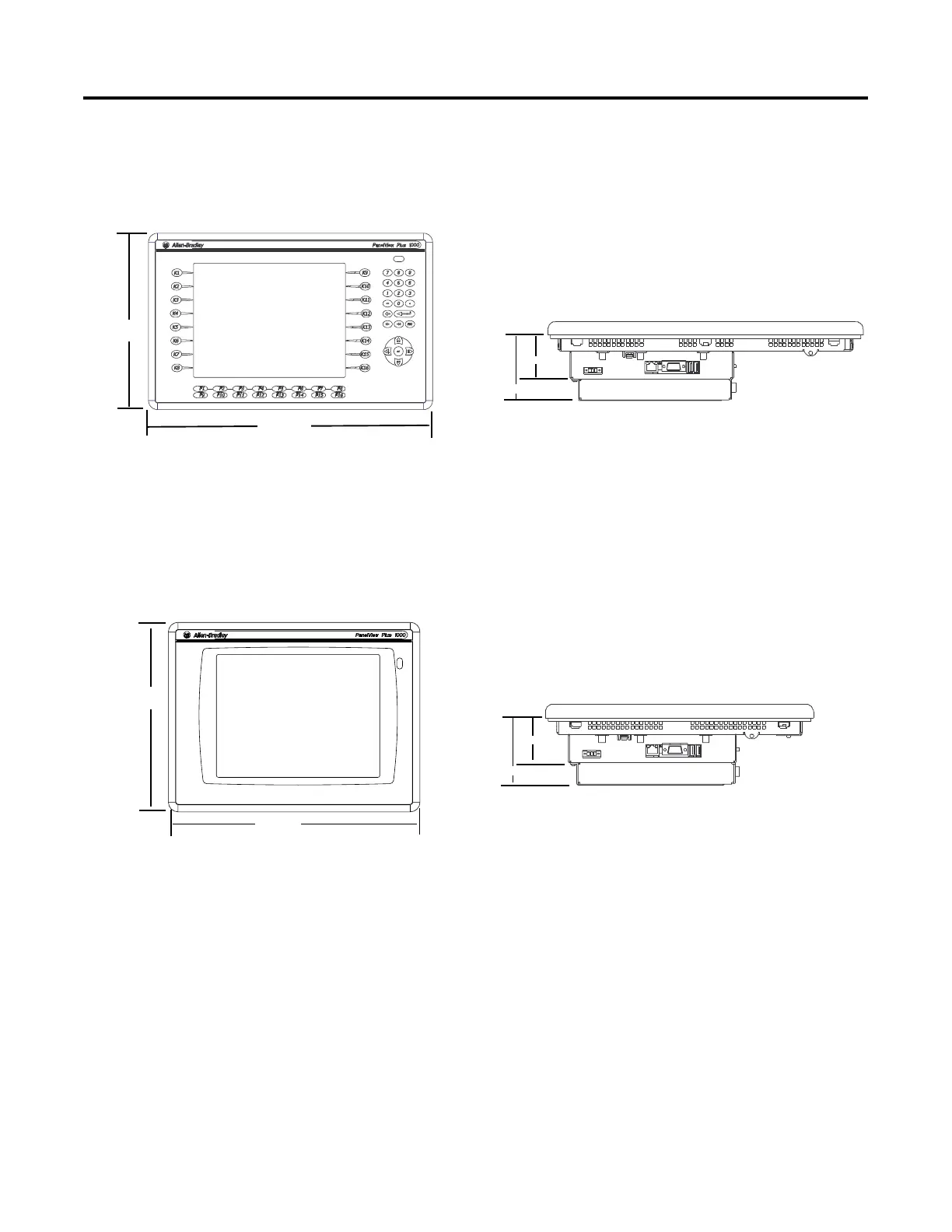

PanelView Plus 1000
329
(12.97)
248
(9.77)
399
(15.72)
248
(9.77)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
b
a
a
b
1000 Keypad or Keypad & Touch Terminal
1000 Touch Screen Terminal
