Publication 2711P-UM001A-EN-P
5-12 Installing and Replacing Components

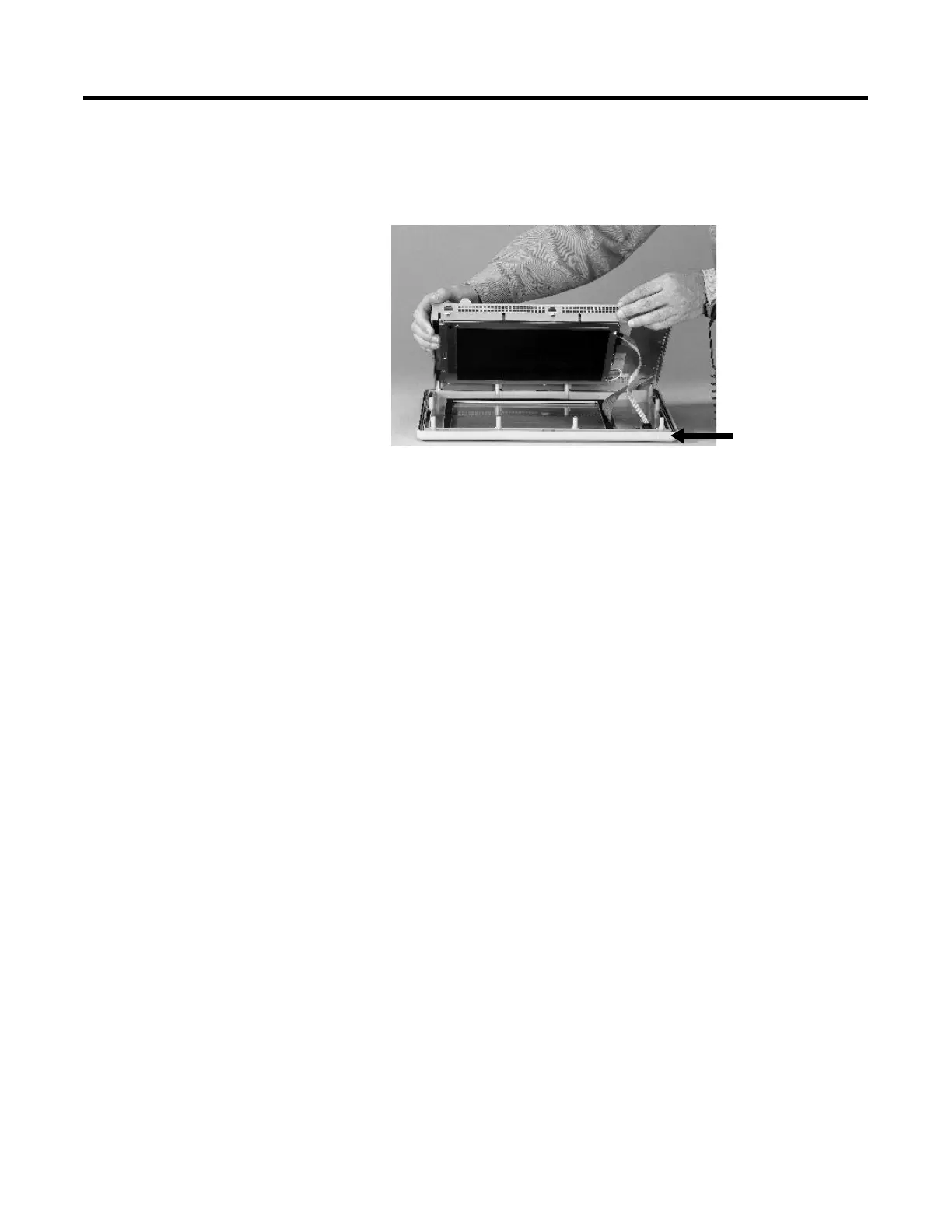

6. Lift the back of the Display Module away from the bezel.
Work on a clean, flat, stable surface to protect the display from
debris, scratches and damage.
7. Detach all connectors (maximum of 3). The number of
connectors varies by model.
• IrDa connector
• Function Key connector
• Touch Screen connector
8. Set bezel aside.
Replacing Display Module Bezel
1. Make sure new bezel is free of lint and marks before attaching.
2. Attach the following connectors. The number of connectors
varies by model.
• IrDa connector
• Function Key connector
3. Place the back of the Display Module over the new bezel. Be
careful not to pinch any of the cables.
Allow the Touch Screen connector to extend out of the access
opening.
4. Attach Touch Screen connector.
5. Replace the sealing gasket (shown in step 5 on page 5-11).
6. Attach screws that secure Display Module to bezel and tighten to
a torque of 1.35 - 1.58 N•m (12-14 in-lb).
7. On touch screen terminals, re-attach the small metal plate to the
back of the Display Module using 2 screws (shown in step 4 on
page 5-11).
Display Module Bezel
