Allen-Bradley POINT I/O 1734-AENT User Manual

14 POINT I/O EtherNet/IP Adapter
Publication 1734-IN042F-EN-P - November 2018

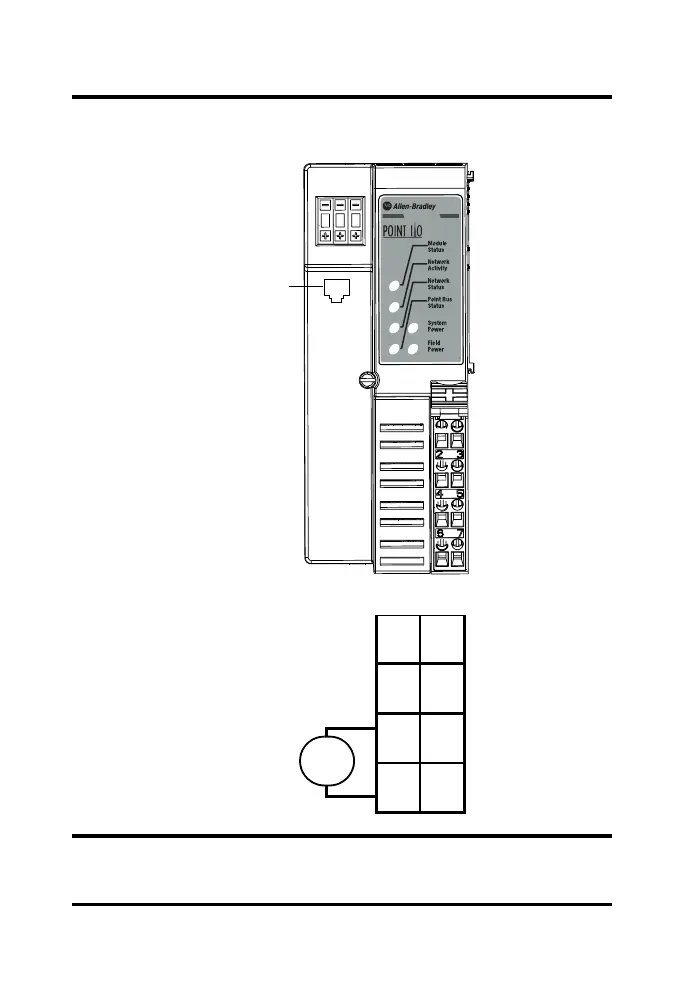

Wire the Adapter
IMPORTANT
Do not connect 120/240V AC power to this supply. This DC supply will be
connected to the internal power bus.
02
0
1734-AENT
43264
Chas Gnd
C
V
NC
Ethernet RJ-45 connector
NC
V
NC
Chas
Gnd
V
0
4
2
6
Chas
Gnd
1
5
3
7
V DC
C
C
NC = No Connection
Chas GND = Chassis Ground
C = Common
V = Supply

Allen-Bradley POINT I/O 1734-AENT Specifications

General

Manufacturer	Allen-Bradley
Product Line	POINT I/O
Catalog Number	1734-AENT
Category	Adapter
Communication	EtherNet/IP
Shock	30 g
Enclosure Type Rating	None (open-style)
Input Voltage	24V DC nominal
Housing Material	Plastic
Mounting Type	DIN Rail
IP Rating	IP20
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 85°C
Relative Humidity	5% to 95% non-condensing
Vibration	5 g @ 10-500 Hz
Ethernet Port	10/100 Mbps
Power Consumption	3.5 W max
Number of Ports	2
Series	A
