Allen-Bradley PowerFlex 40 Original Instructions

30 Rockwell Automation Publication 22-TD001I-EN-P - June 2013
PowerFlex 4 and 40 AC Drives
EMC Line Filters

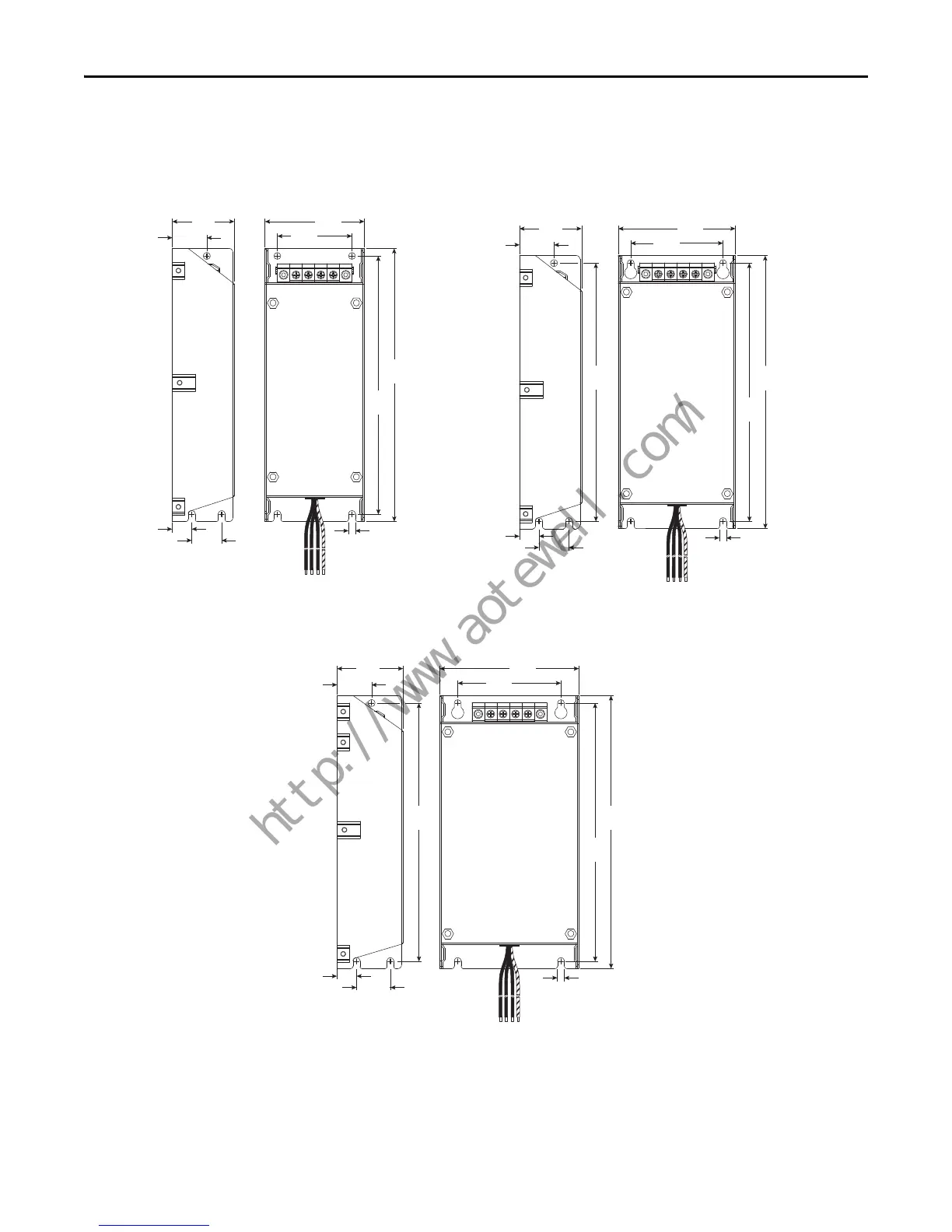

Frame A EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF5P7-AS, -AL; 22-RF9P5-AS, -AL; 22-RF010-AL
Frame B EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF8P0-BL, 22-RF012-BS, -BL; 22-RF018-BL;
22-RF021-BS, -BL
Frame C EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF015-CL; 22-RF018-CS, -CL; 22-RF024-CL; 22-RF025-CL; 22-RF026-CS, -CL; 22RF034-CS, -CL
5.5 (0.22)
17.8
(0.70)
24
(0.94)
60
(2.36)
80
(3.15)
50
(1.97)
29.8
(1.17)
220
(8.66)
208
(8.19)
5.5 (0.22)
17.8
(0.70)
24.0
(0.94)
78
(3.07)
100
(3.94)
50
(1.97)
29.8
(1.17)
229
(9.02)
216
(8.50)
217
(8.54)
5.5 (0.22)
17
(0.67)
30
(1.18)
90
(3.54)
130
(5.12)
60
(2.36)
32
(1.26)
309
(12.17)
297
(11.69)
297
(11.69)
