Allen-Bradley PowerFlex 523 User Manual

174 Rockwell Automation Publication 520-UM001G-EN-E - September 2014
Appendix B Accessories and Dimensions

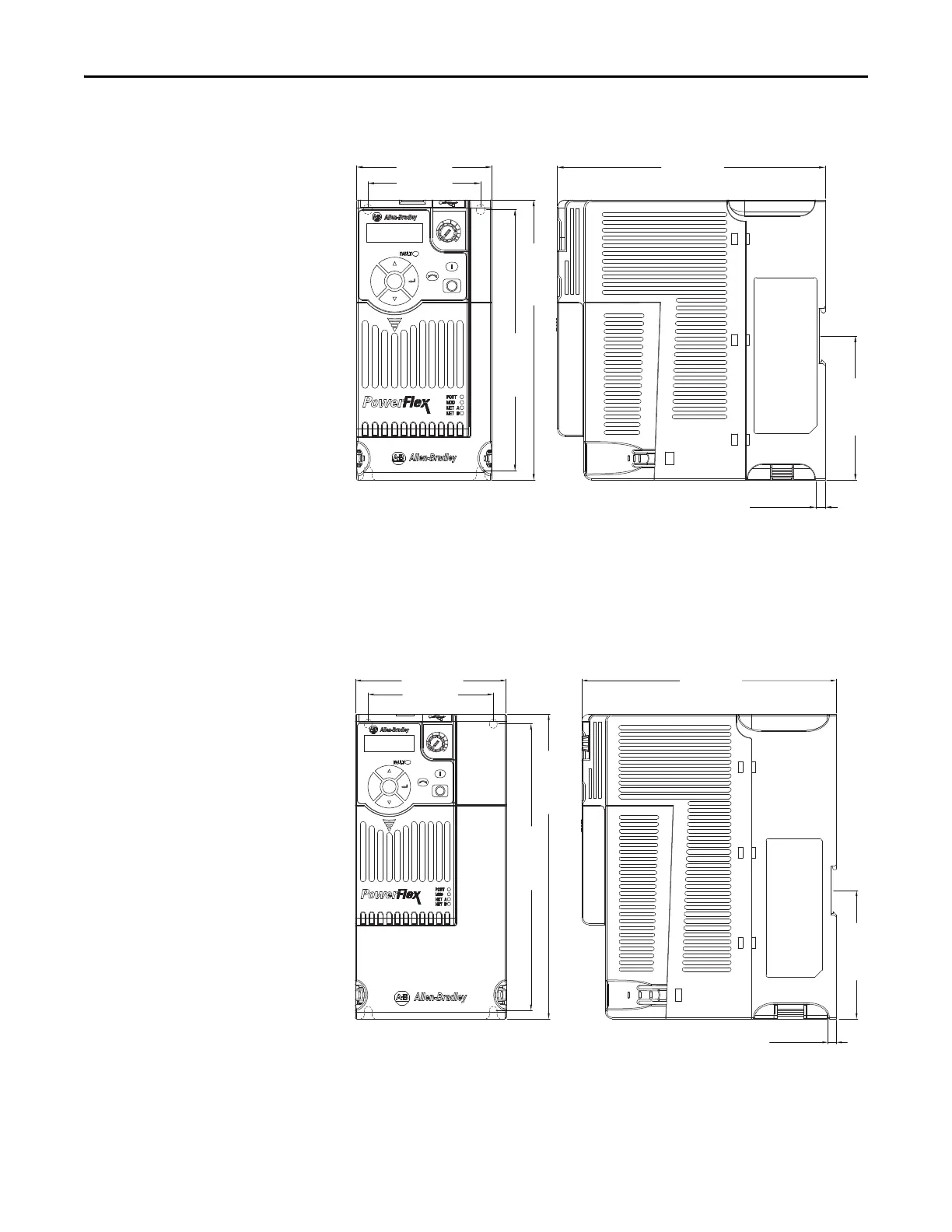

IP 20/Open Type – Frame B
IP 20/Open Type – Frame C
Esc
Sel
87.0 (3.43)
172.0 (6.77)
72.5 (2.85)
6.0 (0.24)
180.0 (7.09)
92.7 (3.65)
168.0 (6.61)
Dimensions are in millimeters and (inches)
Esc
Sel
109.0 (4.29)
90.5 (3.56)
220.0 (8.66)
207.0 (8.15)
184.0 (7.24)
6.0 (0.24)
92.7 (3.65)
Dimensions are in millimeters and (inches)

Allen-Bradley PowerFlex 523 Specifications

General

Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	0 to Input Voltage
Power Rating	0.4-22 kW
Control Method	Sensorless Vector Control
Enclosure	IP20
Communication	EtherNet/IP
Operating Temperature	-20 to 50°C (-4 to 122°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200-240V AC, 380-480V AC
Horsepower	0.5…30 Hp
