Allen-Bradley PowerFlex 523 User Manual

186 Rockwell Automation Publication 520-UM001G-EN-E - September 2014
Appendix B Accessories and Dimensions
Optional Accessories and Kits

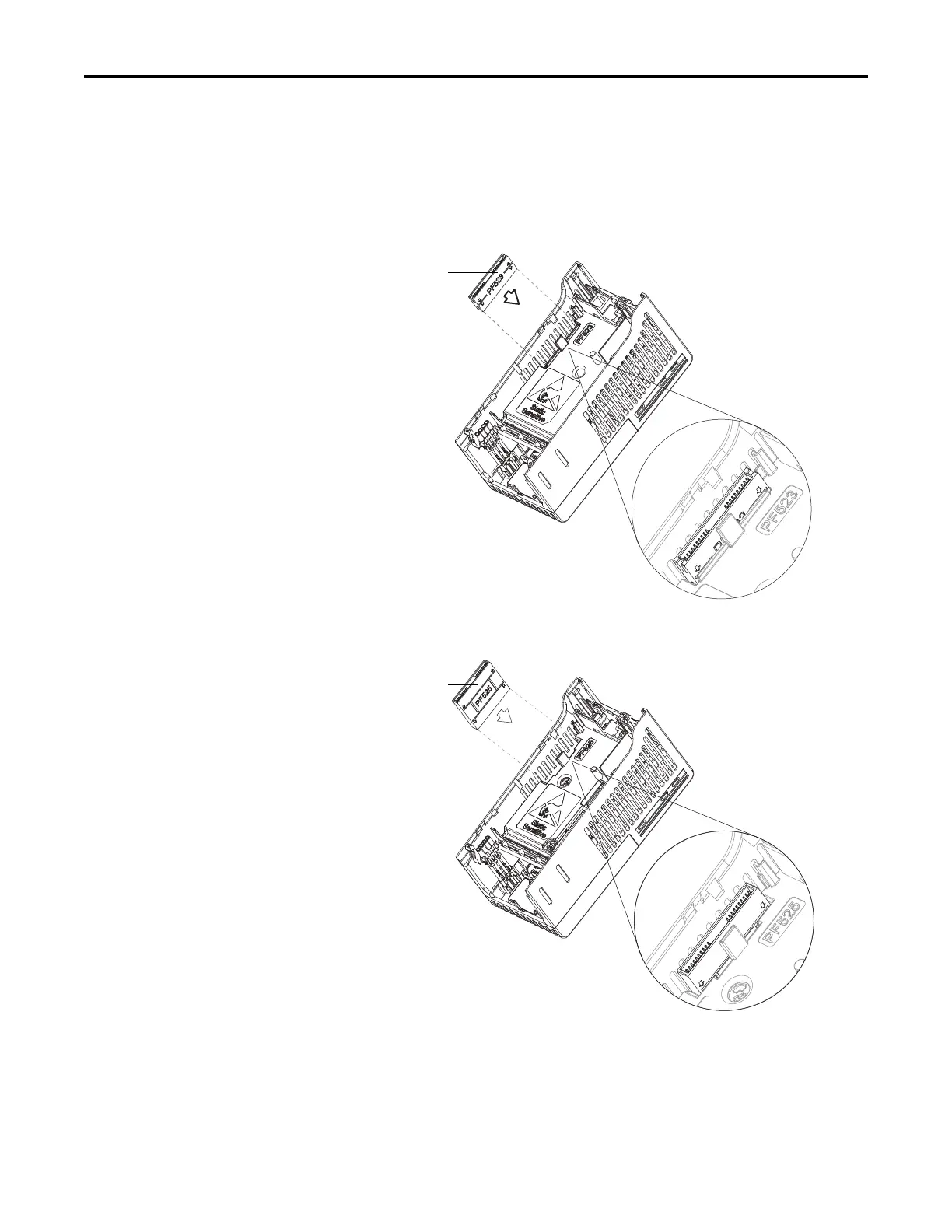

Installing a Communication Adapter
1. Insert the communication adapter interface connector into the Control
Module. Make sure the indicator line on the connector is aligned with the
surface of the Control Module.
2. Align the connectors on the communication adapter to the
communication adapter interface connector, then push the back cover
down.
Communication
adapter interface
connector
For PowerFlex 523
For PowerFlex 525
Communication
adapter interface
connector

Allen-Bradley PowerFlex 523 Specifications

General

Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	0 to Input Voltage
Power Rating	0.4-22 kW
Control Method	Sensorless Vector Control
Enclosure	IP20
Communication	EtherNet/IP
Operating Temperature	-20 to 50°C (-4 to 122°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200-240V AC, 380-480V AC
Horsepower	0.5…30 Hp
