Allen-Bradley PowerFlex 523 User Manual

Rockwell Automation Publication 520-UM001G-EN-E - September 2014 185
Accessories and Dimensions Appendix B

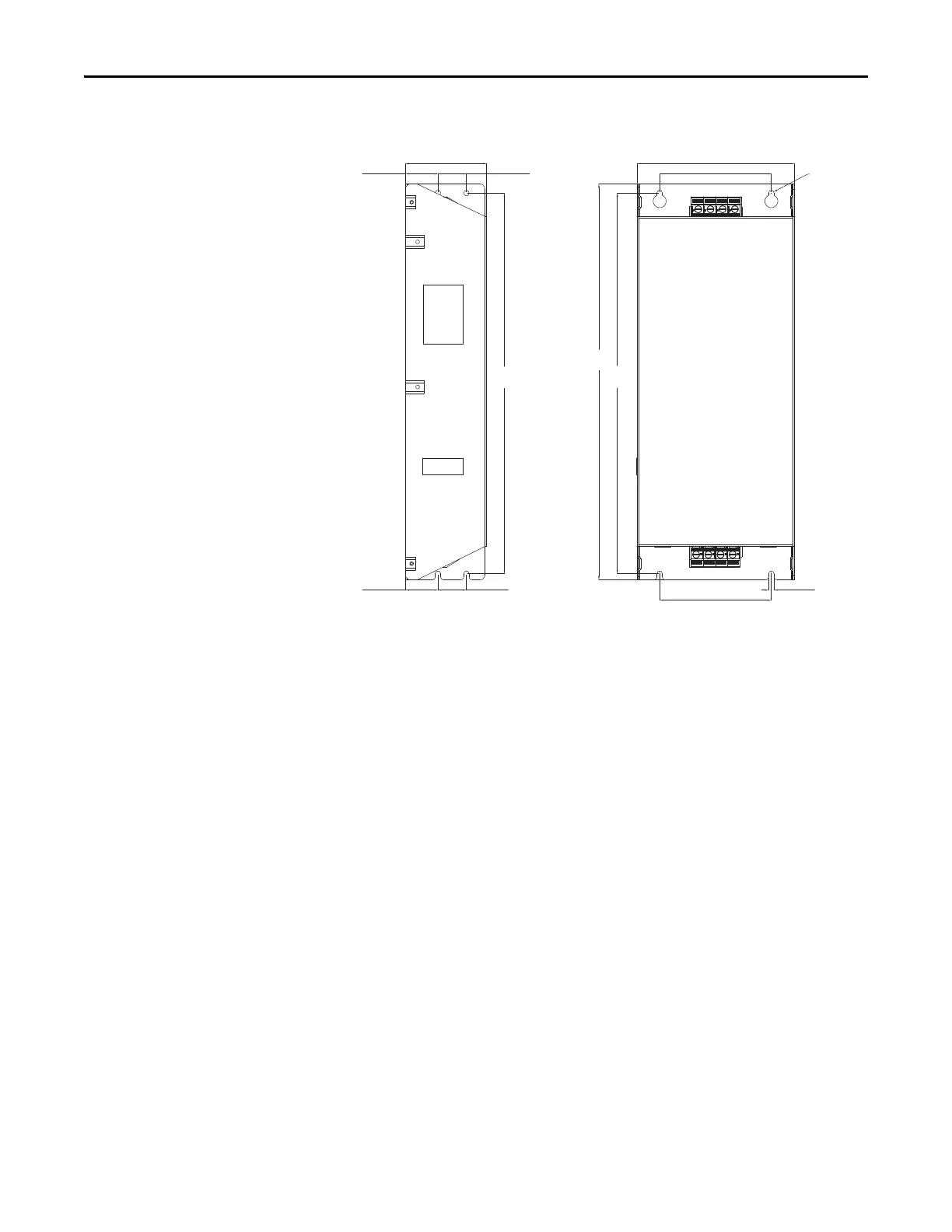

EMC Line Filter – Frame E
80.0 (3.15)
28.0 (1.10)
155.0 (6.10)
110.0 (4.33)
110.0 (4.33)
33.0 (1.30)
28.0 (1.10)33.0 (1.30)
375.0
(14.76)
375.0
(14.76)
390.0
(15.35)
ø5.5 (ø0.22)
5.5 (0.22)
Dimensions are in millimeters and (inches)

Allen-Bradley PowerFlex 523 Specifications

General

Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	0 to Input Voltage
Power Rating	0.4-22 kW
Control Method	Sensorless Vector Control
Enclosure	IP20
Communication	EtherNet/IP
Operating Temperature	-20 to 50°C (-4 to 122°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200-240V AC, 380-480V AC
Horsepower	0.5…30 Hp
