Rockwell Automation Publication 520-UM001G-EN-E - September 2014 173
Accessories and Dimensions Appendix B
Product Dimensions

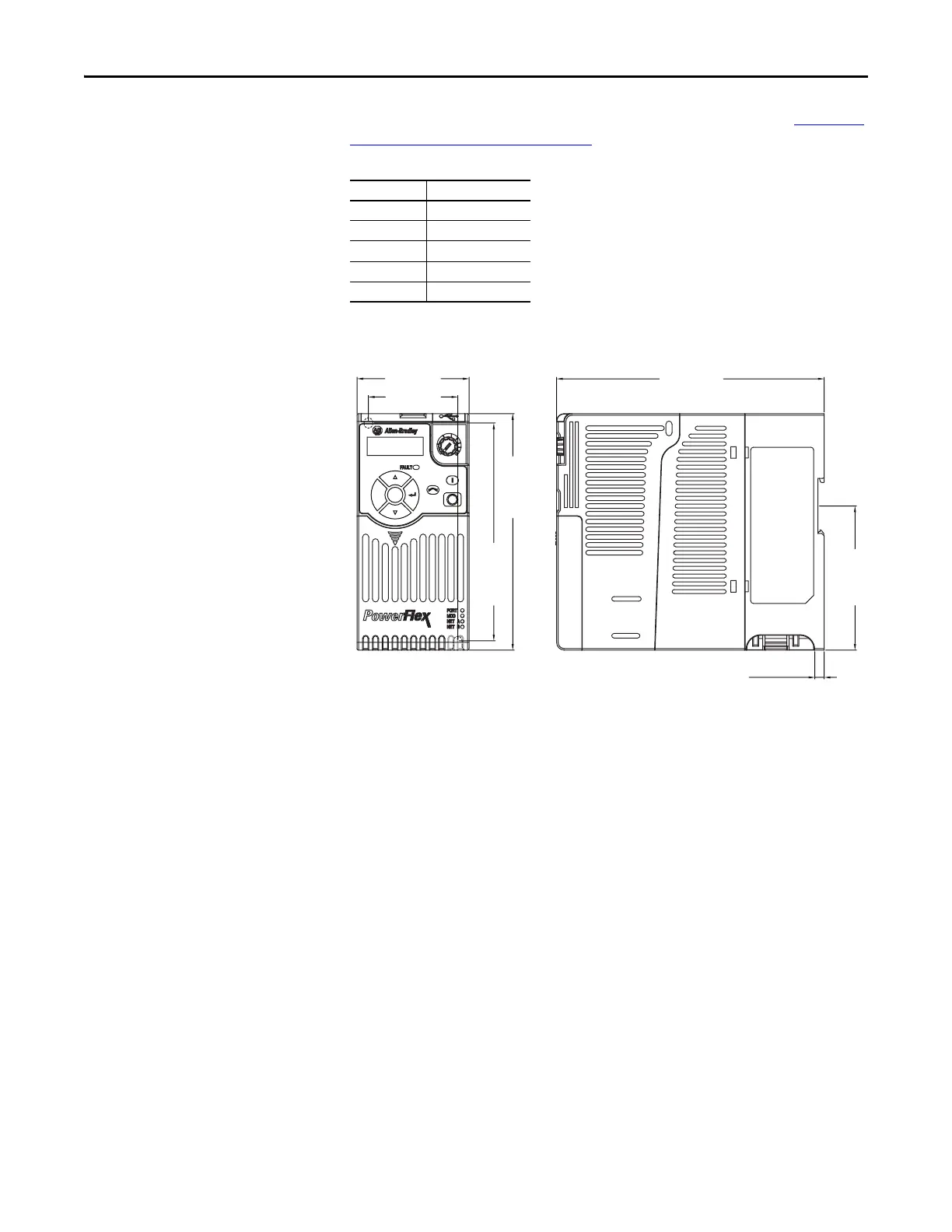

The PowerFlex 520-series drive is available in five frame sizes. See the PowerFlex
520-Series Drive Ratings on page 163 for information on power ratings.
IP 20/Open Type – Frame A
PowerFlex 520-Series Drive Weight
Frame Size Weight (kg/lb)
A1.1 / 2.4
B1.6 / 3.5
C2.3 / 5.0
D3.9 / 8.6
E 12.9 / 28.4
72.0 (2.83)
172.0 (6.77)
6.0 (0.24)
57.5 (2.26)
140.0 (5.51)
152.0 (5.98)
92.7 (3.65)
Esc
Sel
Dimensions are in millimeters and (inches)
To Next Page
