Allen-Bradley PowerFlex 523 User Manual

Rockwell Automation Publication 520-UM001G-EN-E - September 2014 43
Installation/Wiring Chapter 1

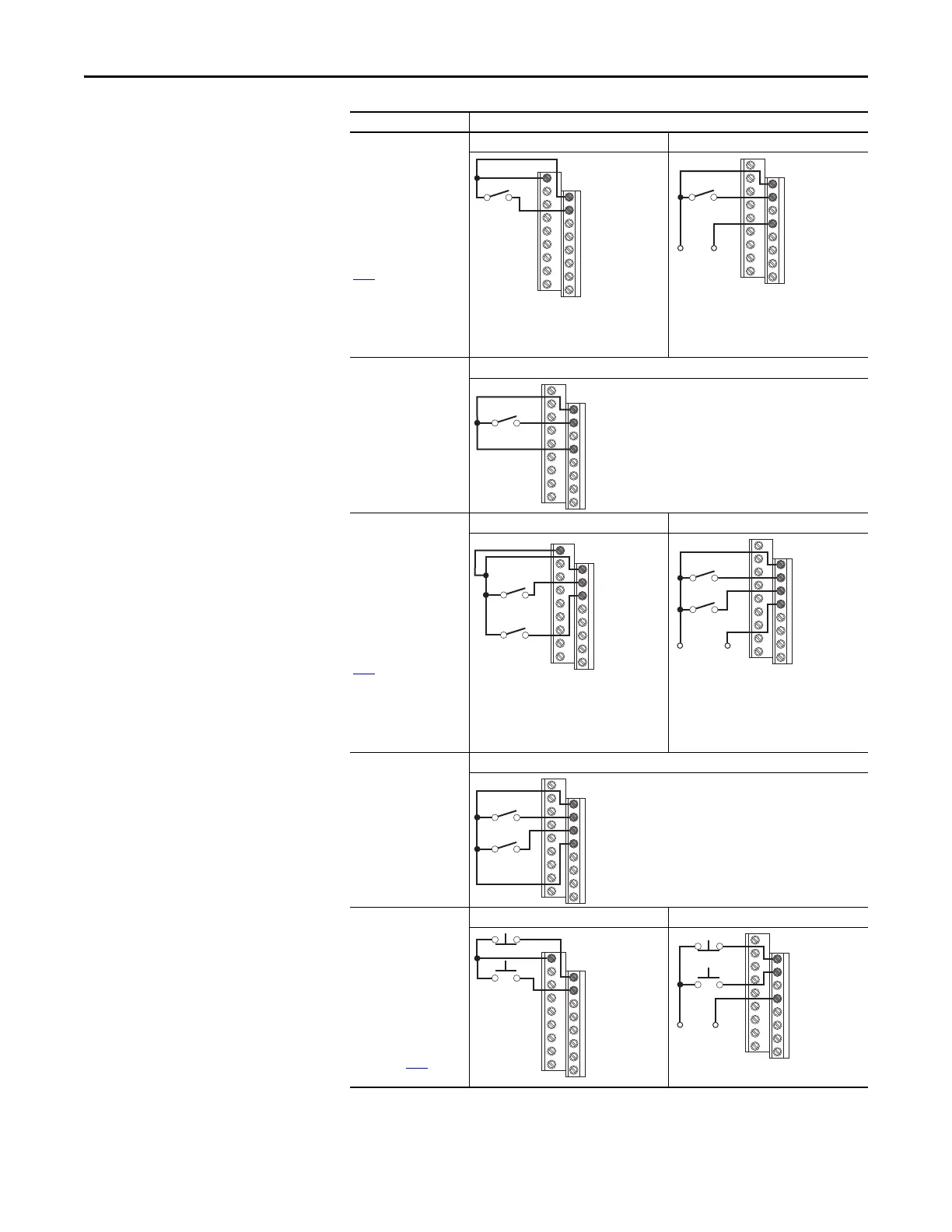

2 Wire SRC Control -
Non-Reversing
P046 [Start Source 1] = 2
and t062 [DigIn TermBlk
02] = 48
Input must be active for
the drive to run. When
input is opened, the drive
will stop as specified by
P045 [Stop Mode].
If desired, a User Supplied
24V DC power source can
be used. Refer to the
“External Supply (SRC)”
example.
Internal Supply (SRC) External Supply (SRC)
Each digital input draws 6 mA.
2 Wire SNK Control -
Non-Reversing
Internal Supply (SNK)
2 Wire SRC Control -
Run FWD/Run REV
P046 [Start Source 1] = 2,
t062 [DigIn TermBlk 02]
= 48 and t063 [DigIn
TermBlk 03] = 50
Input must be active for
the drive to run. When
input is opened, the drive
will stop as specified by
P045
[Stop Mode].
If both Run Forward and
Run Reverse inputs are
closed at the same time,
an undetermined state
could occur.
Internal Supply (SRC) External Supply (SRC)
Each digital input draws 6 mA.
2 Wire SNK Control -
Run FWD/Run REV
Internal Supply (SNK)
3 Wire SRC Control -
Non-Reversing
P046 [Start Source 1] = 2,
t062 [DigIn TermBlk 02]
= 49 and t063 [DigIn
TermBlk 03] = 51
A momentary input will
start the drive. A stop
input to I/O Terminal 01
will stop the drive as
specified by P045
[Stop
Mode].
Internal Supply (SRC) External Supply (SRC)
Each digital input draws 6 mA.
I/O Connection Example
11
01
02
Stop-Run
+24V Common
01
02
04
Stop-Run
Stop-Run
01
02
03
04
11
01
02
03
Stop-Run
Forward
Stop-Run
Reverse
Common
01
02
03
04
Stop-Run
Forward
Stop-Run
Reverse
+24V
Stop-Run
Forward
Stop-Run
Reverse
01
02
03
04
11
01
02
Stop
Start
01
02
04
+24V
Common
Stop
Start

Allen-Bradley PowerFlex 523 Specifications

General

Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	0 to Input Voltage
Power Rating	0.4-22 kW
Control Method	Sensorless Vector Control
Enclosure	IP20
Communication	EtherNet/IP
Operating Temperature	-20 to 50°C (-4 to 122°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200-240V AC, 380-480V AC
Horsepower	0.5…30 Hp
