Allen-Bradley PowerFlex 523 User Manual

64 Rockwell Automation Publication 520-UM001G-EN-E - September 2014
Chapter 2 Start Up

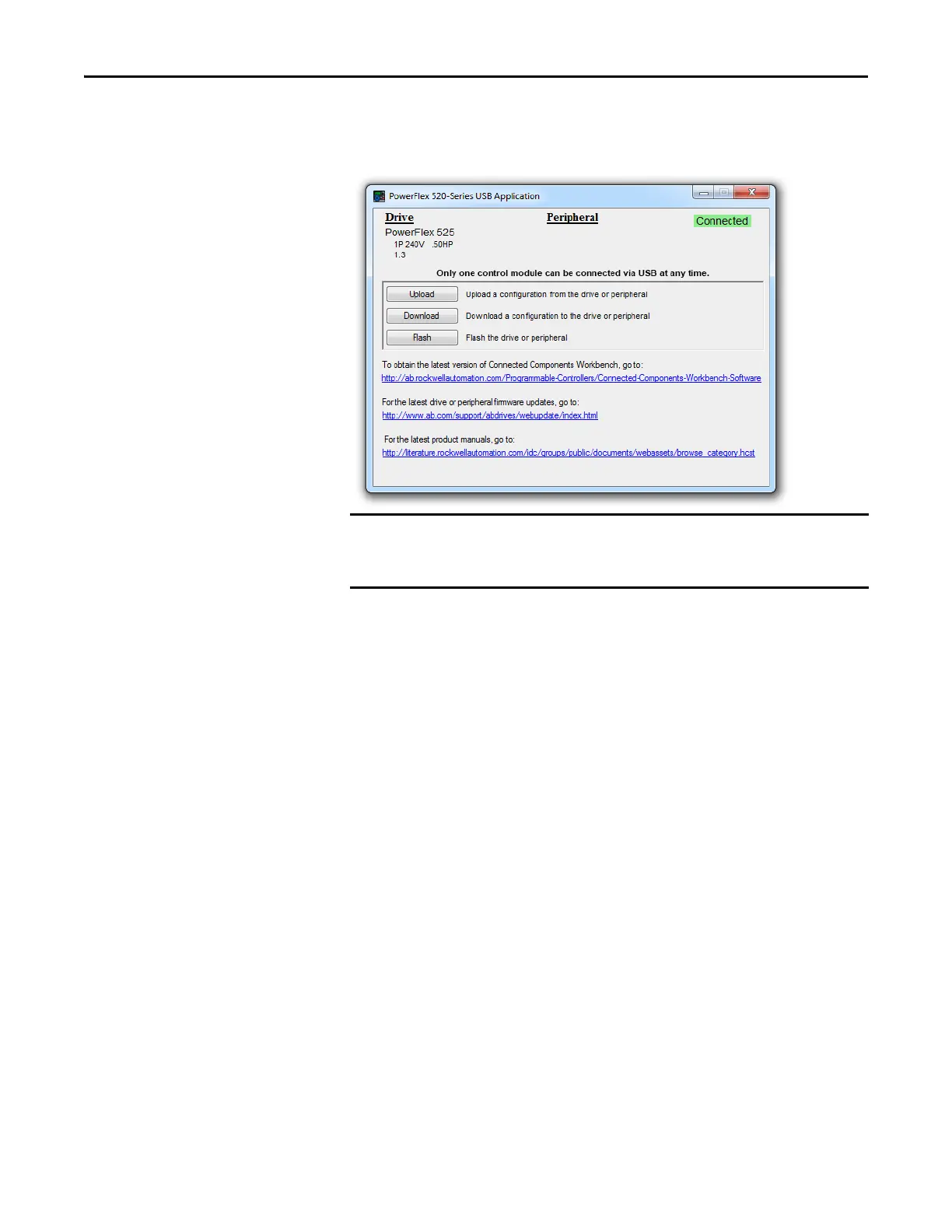

Double-click on the PF52XUSB.EXE file to launch the USB utility application.
The main menu is displayed. Follow the program instructions to upgrade the
firmware or upload/download configuration data.
Limitation in Downloading .pf5 Configuration Files with the USB
Utility Application
Before downloading a .pf5 configuration file using the USB utility application,
parameter C169 [MultiDrv Sel] in the destination drive must match the
incoming configuration file. If it does not, set the parameter manually to match
and then cycle drive power.
This means you cannot apply a multi-drive configuration using the USB utility
application to a drive in single mode (parameter C169 [MultiDrv Sel] set to 0
“Disabled”), or apply a single mode configuration to a drive in multi-drive mode.
IMPORTANT
Make sure your PC is powered by an AC power outlet or has a fully charged
battery before starting any operation. This prevents the operation from
terminating before completion due to insufficient power.

Allen-Bradley PowerFlex 523 Specifications

General

Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	0 to Input Voltage
Power Rating	0.4-22 kW
Control Method	Sensorless Vector Control
Enclosure	IP20
Communication	EtherNet/IP
Operating Temperature	-20 to 50°C (-4 to 122°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200-240V AC, 380-480V AC
Horsepower	0.5…30 Hp
