96 Sleep Mode
Sleep Mode The purpose of the Sleep-Wake function is to Start (wake) the drive when an
analog signal is greater than or equal to the specified [Wake Level], and Stop
(sleep) the drive when an analog signal is less than or equal to the specified [Sleep
Level]. Setting [Sleep-Wake Mode] to “Direct” enables the sleep-wake function to
work as described.
An “Invert” mode also exists, which changes the logic so that an analog value less
than or equal to [Wake Level] starts the drive and an analog value greater than or
equal to [Sleep Level] stops the drive.

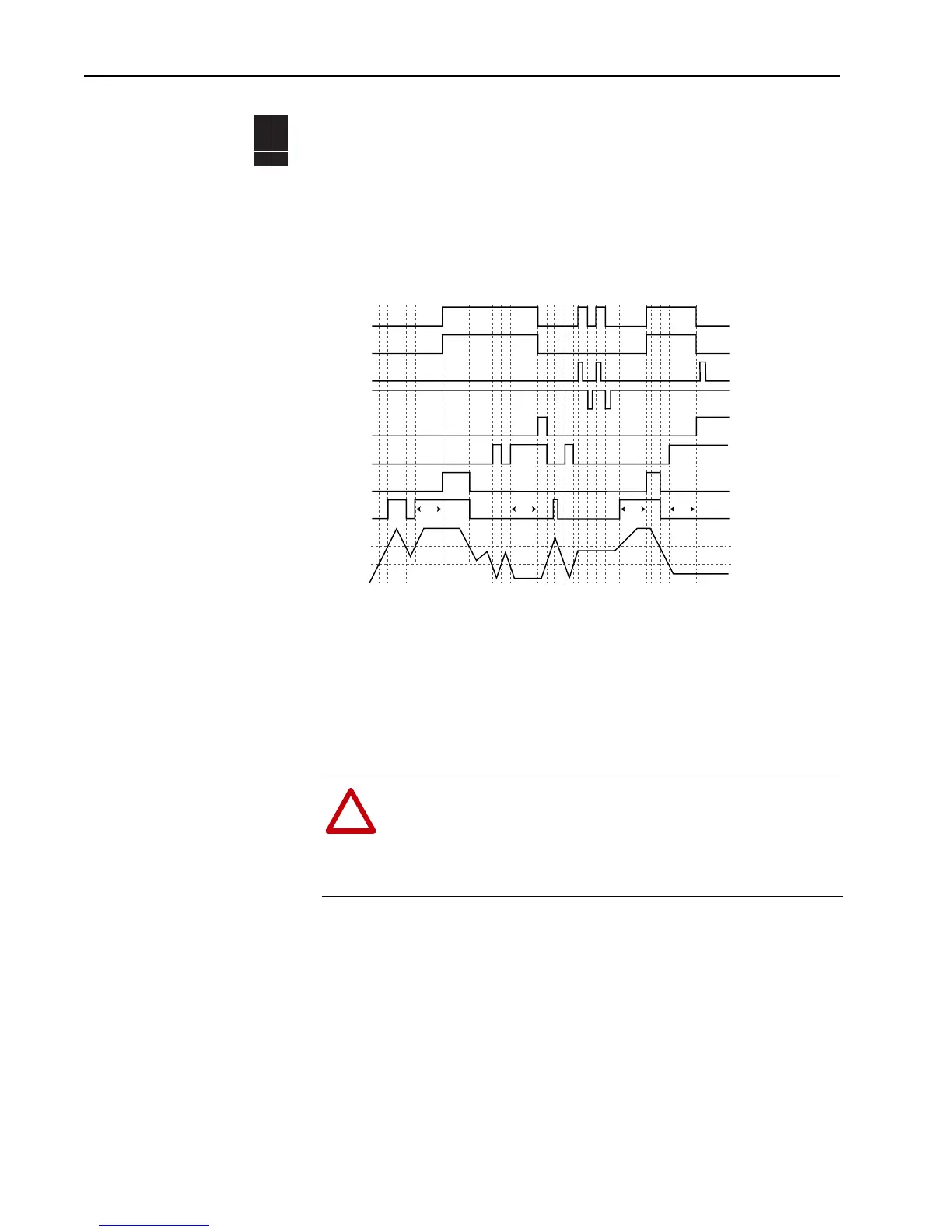

Sleep/Wake Operation
Requirements
In addition to enabling the sleep function with [Sleep-Wake Mode], at least one of
the following assignments must be made to a digital input: Enable, Stop-CF, Run,
Run Fwd or Run Rev, and the input must be closed. All normal Start Permissives
must also be satisfied (Not Stop, Enable, Not Fault, Not Alarm, etc.).
Conditions to Start/Restart
70EC
700VC
700H
✔✔
!
ATTENTION: Enabling the Sleep-Wake function can cause unexpected
machine operation during the Wake mode. Equipment damage and/or
personal injury can result if this parameter is used in an inappropriate
application. Do Not use this function without considering the table below
and applicable local, national & international codes, standards,
regulations or industry guidelines.
Drive
Run
Wake Up
Wake
Time
Example Conditions
Wake Time = 3 Seconds
Sleep Time = 3 Seconds
Wake Level
Sleep Level
Analog Signal
Go to Sleep
Sleep-Wake
Function
Start
Stop
Sleep Timer
Satisfied
Wake Timer
Satisfied
Wake Level
Satisfied
Sleep Level
Satisfied
Sleep
Time
Wake
Time
Sleep
Time
