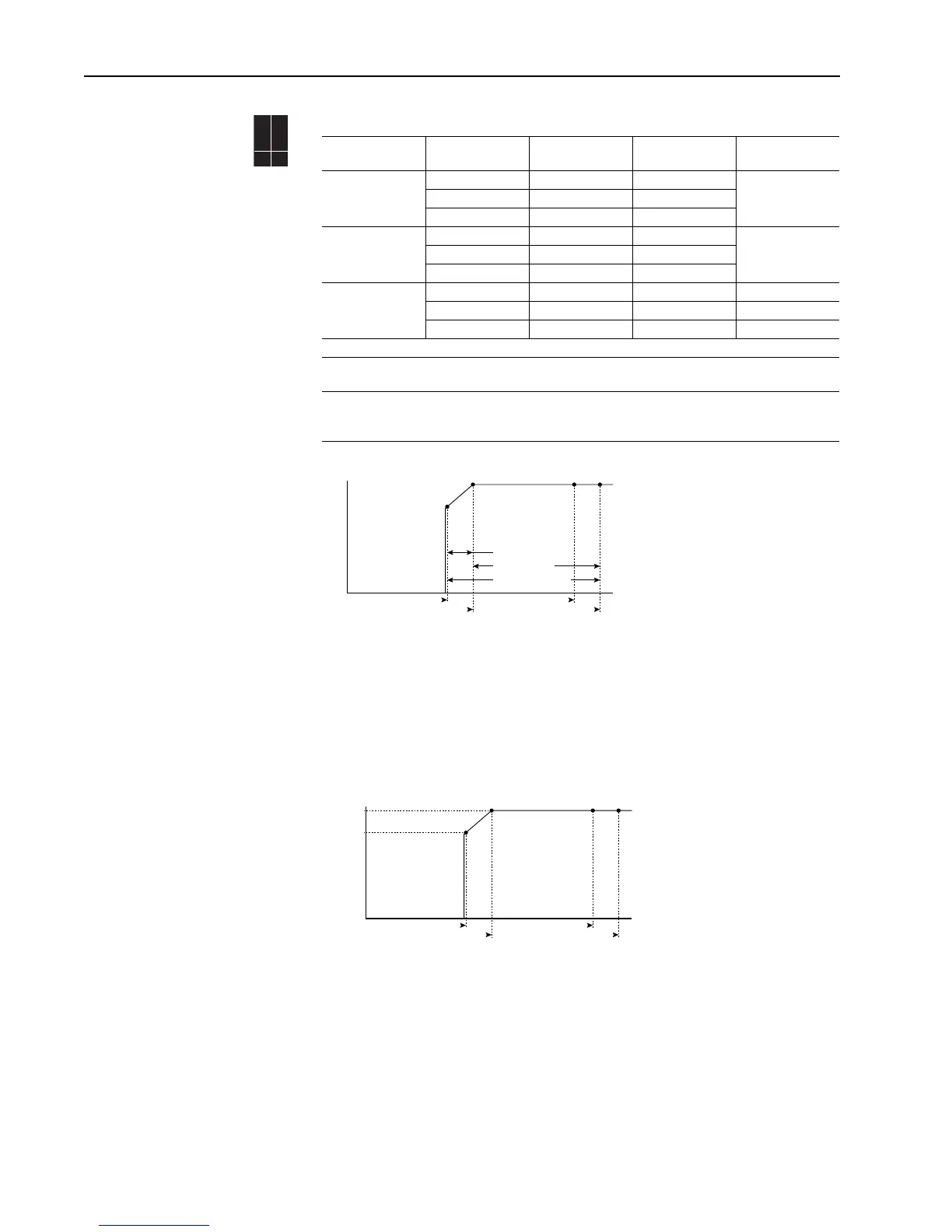

116 Voltage Tolerance
Voltage Tolerance
Example:
Calculate the maximum power of a 5 HP, 460V motor connected to a 480V rated drive supplied with
342V Actual Line Voltage input.
• Actual Line Voltage / Nominal Motor Voltage = 74.3%
• 74.3% × 5 HP = 3.7 HP
• 74.3% × 60 Hz = 44.6 Hz
At 342V Actual Line Voltage, the maximum power the 5 HP, 460V motor can produce is
3.7 HP at 44.6 Hz.
70EC
700VC
700H
✔✔
Drive Rating Nominal Line
Voltage
Nominal Motor
Voltage
Drive Full Power
Range
Drive Operating
Range
200-240 200 200* 200-264 180-264
208 208 208-264
240 230 230-264
380-480 380 380* 380-528 342-528
400 400 400-528
480 460 460-528
500-600 600 575* 575-660 432-660
600 575 * 575-660 475-759
690 690 690-759 475-759
Drive Full Power Range = Nominal Motor Voltage to Drive Rated Voltage +10%.
Rated power is available across the entire Drive Full Power Range.
Drive Operating Range = Lowest (*) Nominal Motor Voltage –10% to Drive Rated Voltage +10%.
Drive Output is linearly derated when Actual Line Voltage is less than
the Nominal Motor Voltage.
HP @ Motor (Drive Output)
Actual Line Voltage (Drive Input)
Full Power Range
Drive Operating Range
Nominal Motor Voltage -10%
Nominal Motor Voltage
Derated Power Range
Drive Rated Voltage
Drive Rated Voltage +10%
5 HP
3.7 HP
HP @ Motor (Drive Output)
Actual Line Voltage (Drive Input)
342V
460V
480V
528V
