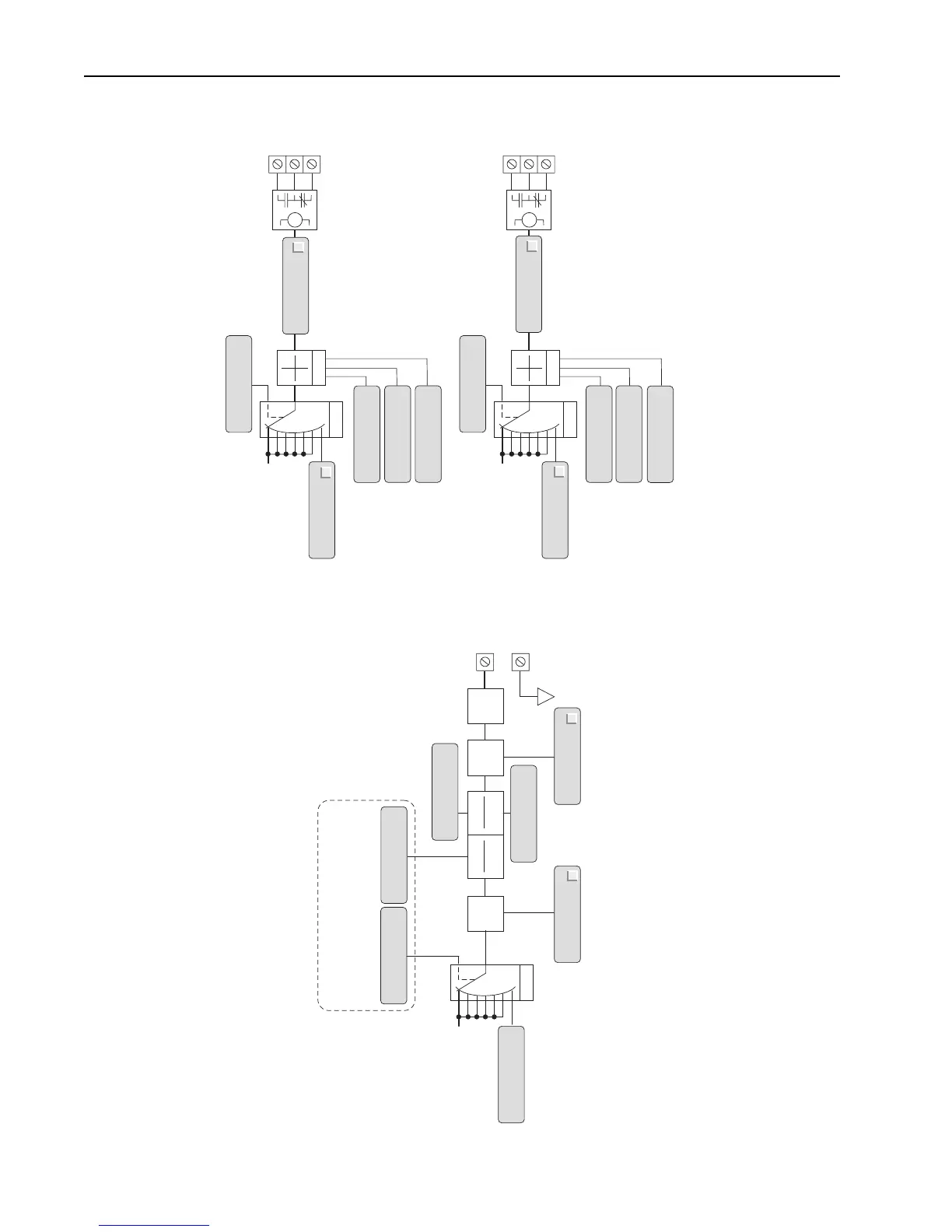

152 PowerFlex 70EC Block Diagrams
Selector
Output Freq
342 - Analog Out1 Sel
0.0
354 - Anlg Out1 Scale
0.00
377 - Anlg Out1 Setpt
10.00
343 - Analog Out1 Hi
Bit 0 - Analog Out 1
341 - Anlg Out Absolut
0.00
344 - Analog Out1 Lo
Bit 0 - Analog Out 1
340 - Anlg Out Config
Fault
380 - Digital Out1 Sel
Bit 0 - Digital Out1
217 - Dig Out Status
Bit 0 - Digital Out1
379 - Dig Out Setpt
0.0
381 - Dig Out1 Level
0.0 Secs
382 - Dig Out1 OnTime
0.0 Secs
383 - Dig Out1 OffTime
Run
384 - Digital Out2 Sel
Bit 1 - Digital Out2
217 - Dig Out Status
Bit 1 - Digital Out2
379 - Dig Out Setpt
0.0
385 - Dig Out2 Level
0.0 Secs
386 - Dig Out2 OnTime
0.0 Secs
387 - Dig Out2 OffTime
Logic
10 01
I/O-11 I/O-12 I/O-13
Internal: Sources
Selector
Logic
10 01
I/O-24 I/O-25 I/O-26
Internal: Sources
✔
✔
Selector
Internal: Sources
Analog Out+ I/O-23 Analog Out– I/O-22
Out - Lo
Hi - Lo
In - Lo
Hi - Lo
Abs mA/V D/A
Note: If [Anlg Out1 Scale] is zero, Lo and Hi
depend on Analog Out1 Sel.
Otherwise, Analog Out1 Scale sets Hi.
Analog Output
Digital Output
